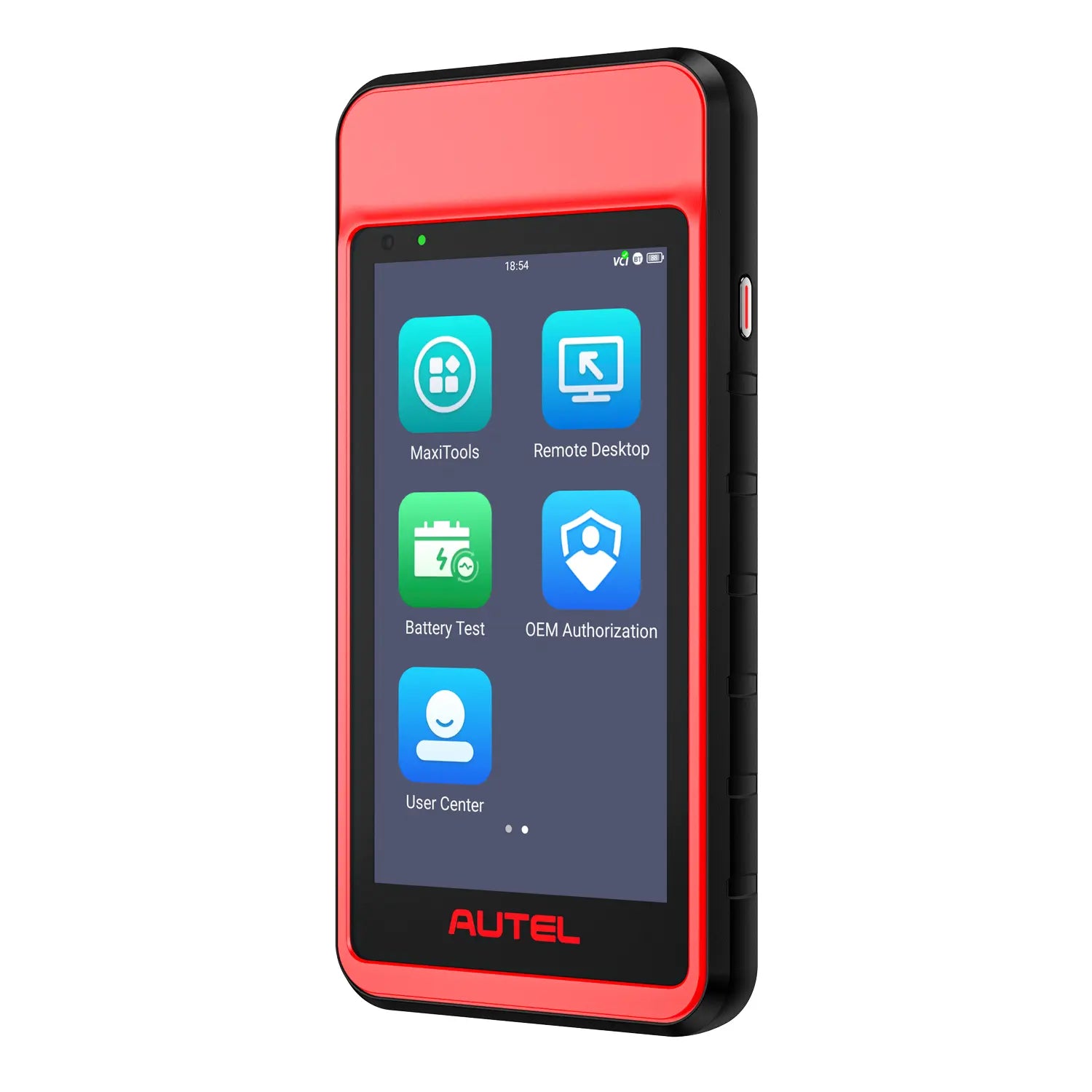

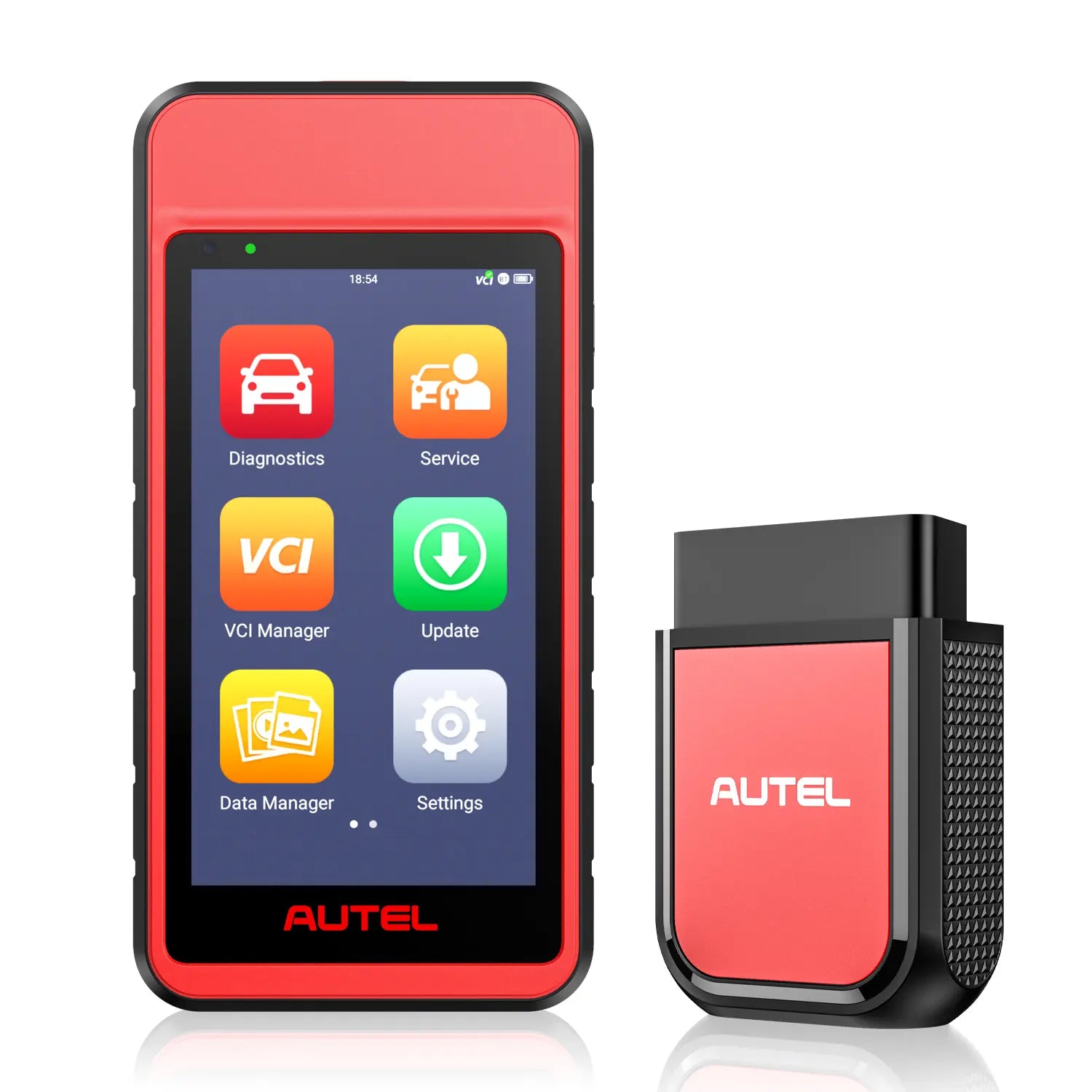

MaxiDiag MD909 Pro
All System Diagnostic Scanner Tool with OIL RESET, BREAK BLEEDING, INJECTOR etc 11 Service Functions
$349.00
/
Final price. Tax & shipping included.
Make Offer
Γ
Make an Offer
Thank you for your interest! Please complete the form below with your offer details. Our team will review it and respond to you as soon as possible.
- Special 11 Service Functions For DIYers: Autel MD909 Pro covers 11 key service functions: Oil Reset, Brake Bleeding, Injector Coding, SAS Calibration, Throttle Adaptation, EPB, BMS, TPMS, DPF Regeneration, AFS Headlamp, and Air-Fuel Ratio (A/F) Adjustment. These essential features ensure reliable maintenance support for modern vehicles across various makes and models.
- Complete OBD2 Diagnostic Tool: Autel MaxiDiag MD909 Pro Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function; Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data.
- Supports CAN FD Protocol: The MD909 Pro is compatible with the latest CAN FD communication protocol. This ensures faster data transmission and broader compatibility.
- Outstanding Hardware & Faster Operation: 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface; Bluetooth connectivity of VCI, more convenient in handheld operation scenarios, and Free lifetime OTA software updates.
- Work with MaxiBAS BT506: Expandable battery test functions, requires optional Autel BT506 Purchase.
π‘ Add now to get FREE shipping insurance β worry-free shopping!
π± By completing your checkout, we will donate $0.02 USD to help offset packaging and shipping emissions - at no extra cost to you.
Got it!
Free Shipping on all orders
3-5 Days Delivery
Lifetime Customer Support
24/7 Online Support
30-day risk free return
1-Year Warranty
Payment Security
We don't collect your card information
Videos for this product
-
Autel MD909PRO: Powerful, Portable, and Packed with Features
Videos for this product
Autel MaxiDiag MD909 PRO
Enhanced All System Diagnostics and Service Functions
- Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems
- Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data
- Support 11 service functions: OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F
- Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function
Outstanding Hardware, Faster Operation
- 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
- 5,000mAh battery, deliver long battery-life
- Bluetooth connectivity of VCI, more convenient in handheld operation scenarios
Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector
- Support CAN FD communication protocol, compatible with advanced automotive systems
- Access automakers security gateways, such as FCA, SFD, etc.* (You need to purchase separately)
- Expandable battery test functions, requires optional MaxiBAS BT506 purchase
- Free lifetime OTA software updates, cost-effective handheld solution
Specification
| Item | Description | MD909 PRO |
| Hardware | VCI | V150 Lite |
| System | Android 9 | |
| Battery | 5000mAh | |
| Storage | 64G | |
| Screen | 5.5-inch | |
| Function | Vehicle Coverage | Current year vehicle of Asia, Europe, America, China |
| System Coverage | All | |
| Read/ Erase Code | β | |
| Live Data | β | |
| Security Gateway | FCA, SFD, etc. | |
| Service | OIL RESET | β |
| BREAK BLEEDING | β | |
| INJECTOR | β | |
| SAS | β | |
| THROTTLE | β | |
| EPB | β | |
| BMS | β | |
| TPMS | β | |
| DPF | β | |
| AFS Headlamp | β | |
| A/F | β | |
| Extension | Battery Test(purchase BT506) | β |
| Communication Protocol | CAN FD | β |
| Software | FREE Lifetime Software | lifetime of tool |
