[Pre-Order] MaxiScope MP608
Professional 4 channel oscilloscope delivering accurate signal analysis and efficient fault diagnosis.
Final price. Tax & shipping included.
Limited-time promotion. Regular price
Make Offer
Make an Offer
Thank you for your interest! Please complete the form below with your offer details. Our team will review it and respond to you as soon as possible.

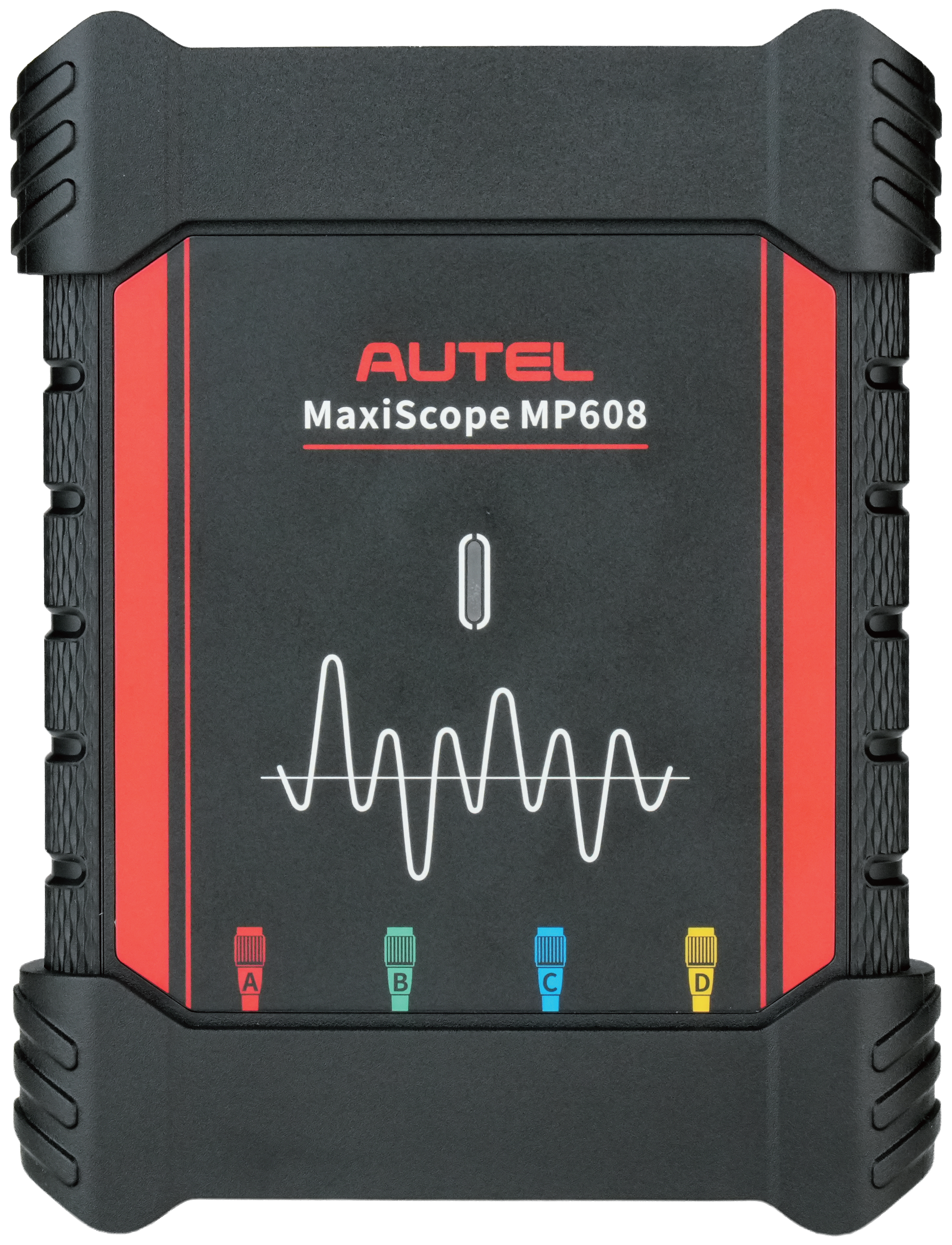

- MP608 4-channel oscilloscope: The Autel MaxiScope MP608 is a portable, USB-powered, 4-channel automotive oscilloscope that transforms your Autel next-generation MaxiSys tablet into a professional diagnostic tool. With 12-bit vertical resolution, one-click setup, and support for modern protocols like CAN FD/FlexRay, the Autel MaxiScope MP608 delivers precise waveform analysis from an intuitive interface.
- Compatible with Autel scanners: The Autel Tablets compatible with the MP608 are MaxiSys MS909S2/ MS909/ MS909EV/ MS909CV/ MS906 MAX/ MS908S Pro II/ MS906 Pro/ MS906 Pro-TS/ Elite II Pro, MaxiCOM Ultra Lite S, MaxiIM IM608S II/ IM608 Pro II.
- Professional AI-Powered Diagnostics: Achieve accurate and efficient diagnostics with AI-assisted analysis, ±1% measurement accuracy, and intelligent capture of complex and intermittent faults.
- Advanced Waveform Analysis: Visualize and analyze signals with Oscilloscope, Spectrum, and XY modes, plus multi-view display for faster and more accurate fault diagnosis.
- Connected & Flexible Workflow: Work seamlessly on both tablet and PC with cloud synchronization, work-order management, and waveform notes to improve productivity anywhere.
🛡 Add now to get FREE shipping insurance – worry-free shopping!
🌱 By completing your checkout, we will donate $0.02 USD to help offset packaging and shipping emissions - at no extra cost to you.
Got it!
Free Shipping on all orders
3-5 Days Delivery
Lifetime Customer Support
24/7 Online Support
30-day risk free return
1-Year Warranty
Payment Security
We don't collect your card information
Specification
| Item | Description |
|---|---|
| Channels | 4 |
| Bandwidth | 200MHz |
| Maximum Sample Rate |
* MS/s = mega samples per second 1) Select arbitrary one channel, the maximum sample rate is 80 MS/s. 2) Select two channels (AC, BC, AD, or BD), the maximum sample rate is also 80 MS/s. 3) Select two channels (AB/CD) or more than three channels, the maximum sample rate is 20 MS/s. |
| Input Ranges (Full Scale) | ±50 mV to ±200 V |
| Sensitivity | 10 mV/div to 40 V/div |
| Input Coupling | AC/DC |
| Input Impedance | 1 MΩ in parallel with 25 pF |
| Vertical Resolution | 12 bits |
| Buffer Memory | 32M samples shared among active channels |
| Time Base Ranges | 100 ns/div to 1000 s/div |
| Connection | USB 2.0 |
| DC Accuracy | ±1% |
| Storage Humidity Range | 5 to 95 % RH, non-condensing |

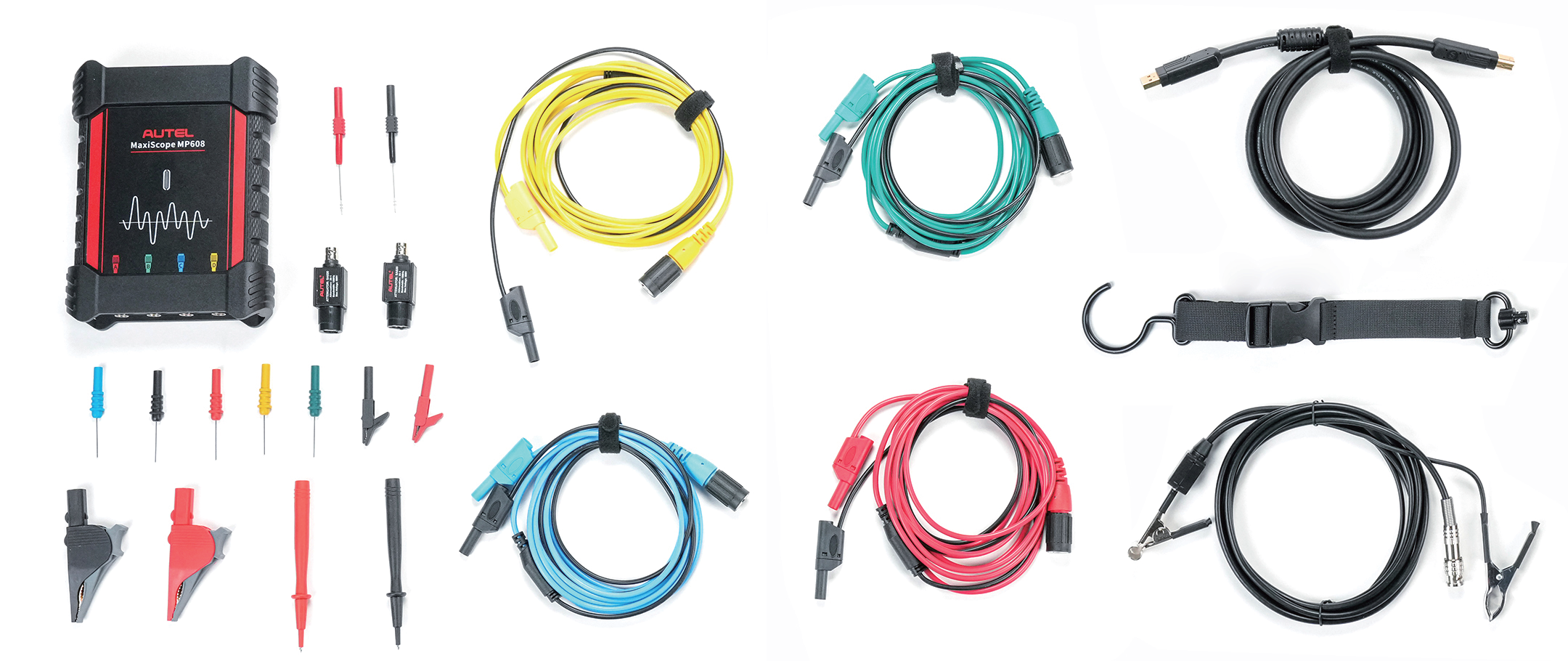

Packing List
- MP608 Main Unit
- Secondary Ignition Pickup
- USB 2.0 Cable V2
- 2PCS Attenuator 20:1
- 1x2 PCS Large Dolphin Clip - Red/Black
- 1x2 PCS Small Alligator Clip - Red/Black
- 1x4 PCS Scope Test Lead
- 1x2 PCS Multimeter Probe - Red/Black
- 1x5 PCS Back-pinning Probe - Red/Green/Blue/Yellow/Black
- 1x2 PCS Flexible Back-pinning Probe - Red/Black
