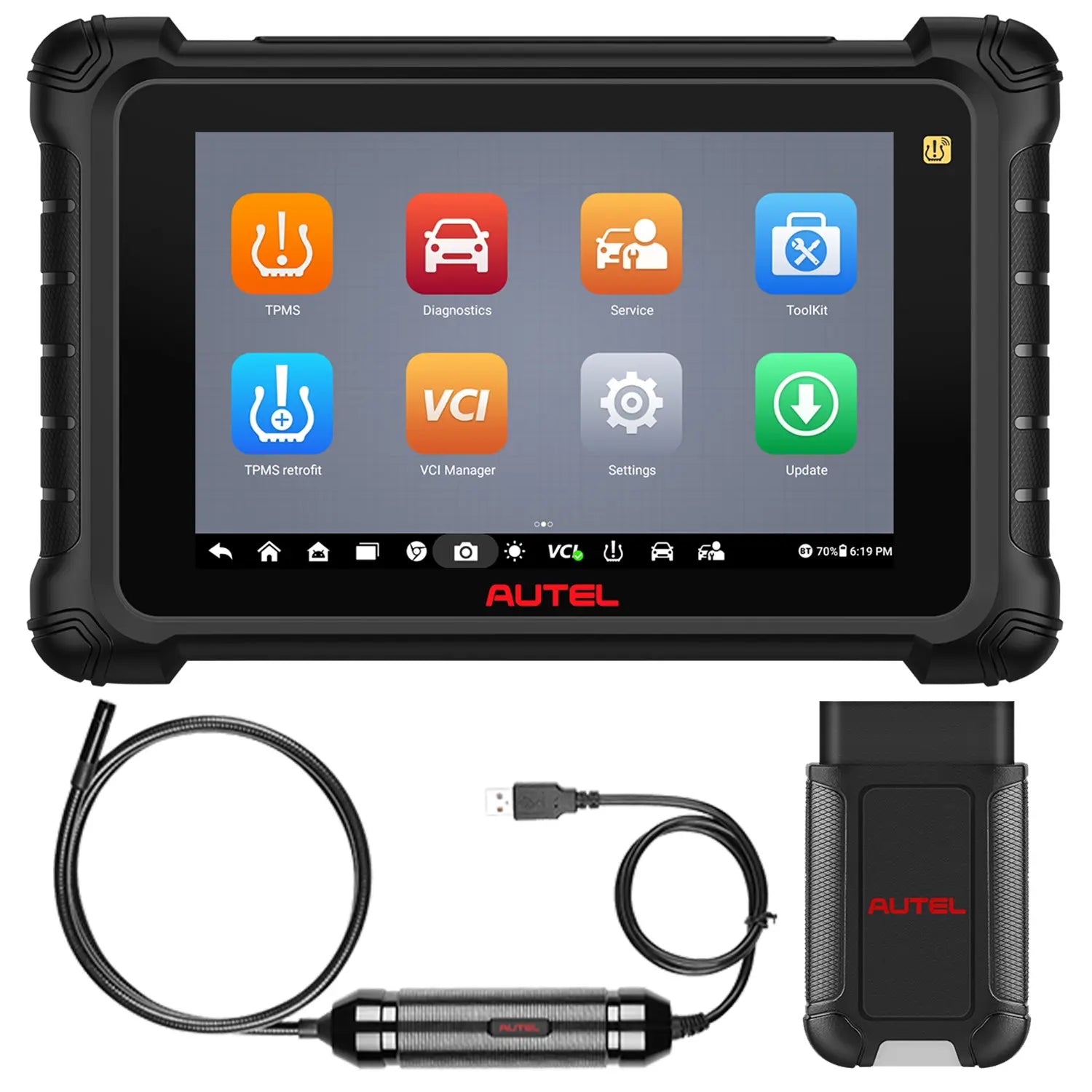

MaxiTPMS TS900

Offers advanced diagnostics, comprehensive TPMS, and an extensive one-touch service menu.

  • TS900 Upgrade Of TS608: The Autel MaxiTPMS TS900 TPMS tool is a versatile device that combines TPMS functionality and diagnostics. It features a wireless touchscreen tablet that offers a range of features including complete TPMS programming, relearning, and activation, more than 40 services, and OE-level diagnostics. Additionally, it offers new features such as WiFi printing, pre and post scans. The TS900 TPMS scan tool is also compatible with the Autel MX Sensor BLE, which comes preprogrammed for Tesla vehicles.
  • Complete TPMS Solution: The Autel TS900 TPMS tool offers the same TPMS features as the MS906 Pro-TS scanner but cost lower. It includes TPMS check, diagnostics, sensor programming, relearning, and the ability to activate 99% of TPMS sensors available in the market. The TPMS application supports various TPMS sensors, including BLE sensors that are compatible with Tesla vehicles. Please note that the Autel TS900 scanner can only program Autel MX sensors.
  • Bi-Directional / Active Test: The Autel TS900 bidirectional scan tool offers the same ACTIVE TEST feature as the Elite II PRO, MS909, MS919, and MS Ultra scanners. With the TS900 scan tool, you can perform real active tests by sending commands to the vehicle's ECU to activate various actuators. This includes tests such as ABS pump, EVAP test, fuel pump, injector test, cooling fan test, window/door locks/horn, GR test, A/C clutch test, VGT turbo calibration, and more.
  • OE-Level All System Diagnosis: The Autel TS900 diagnostic scanner easily conduct functional tests and retrieve valuable data such as trouble codes, event codes, and live data for multiple vehicle control systems including engine, transmission, ABS, and more. The scanner provides various display modes, allowing for comprehensive analysis. Additionally, the device saves related historical records, which can significantly save time when diagnosing similar issues in the future.
  • 40+ Services: The Autel TS900 TPMS tool offers 40+ service functions for 150+ brands and 10,000+ models. It provides quick access to vehicle systems for scheduled maintenance tasks such as oil and service light reset, electronic parking brake reset, brake bleed, airbag reset, TPMS, SAS, IMMO, and seat occupancy calibration.

Videos for this product

    Videos for this product

  • How To Use The Copy By OBD Function With The MaxiTPMS TS900 | Autel

Autel MaxiTPMS TS900 Features

  • Comprehensive coverage for TPMS
  • Program AUTEL MX-Sensors to replace 99% of TPMS sensors on the vehicles on the road today.
  • Industry-leading Relearn-by-OBD vehicle coverage.
  • Compatible with 315MHz, 433/434MHz and 2.4GHz (BLE) frequency TPMS sensors.
  • Cover U.S., European, and Asian vehicles, 1996 and newer to provide professional diagnostic service.
  • Support all system diagnostics (including Read and Erase codes, View Freeze Frame data, View and Graph Live Data, and Perform bi-directional Active Tests and Special Functions).
  • Extensive Service Menu with direct access to over 38+ maintenance services.
  • Supports the latest communication protocols, including CAN FD/DoIP.
  • Generate Detailed Pre- and Post-Scan Reports. Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers.
  • Auto-VIN technology automatically identifies vehicle make, model, and year.
  • 8-inch touchscreen with 1024 x 600 resolution display and 8-megapixel rear camera.
  • 64GB onboard memory for fast processing and access to the software.
  • Android 11 operating system for fast boot-up and operation speed.

MaxiTPMS TS900 Specifications

Item Description
Tablet Recommended Use Indoor
Operating System AndroidTM 11
Processor Quad-Core (1.8 GHz)
Memory 4 GB RAM & 64 GB ROM
Display 8-inch LCD screen with 1280 x 800 resolution
Rear Camera 8 MP

• Wi-Fi
• USB 2.0, Type C
• BT
• Mini SD Card (supports up to 64 GB)

Sensors Ambient light sensor for brightness auto changing
Audio input/output Input: N/A
Output: buzzer
Power and Battery • 3.7 V/7700 mAh lithium-polymer battery
• Charges via 5 V DC power supply
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/3 A
Power Consumption Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 50 °C (32 to 122 °F)
Storage Temp. -10 to 60 °C (14 to 140 °F)
Operating Humidity 5% to 95% non-condensing
Dimensions (W x H x D) 1259.87 mm (10.23”) x 168.98 mm (6.65”)  x 33.60 mm (1.32”)
Net Weight 998 g (2.2 lbs)

ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM,

ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN),

SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD

V150 Communication BR + EDR
Wireless Frequency 2.4 GHz
Input Voltage Range 8 to 30 V DC
Supply Current 150 mA @ 12 V DC
Operating Temp. 0 to 50 °C (32 to 122 °F)
Storage Temp. -10 to 60 °C (14 to 140 °F)
Dimensions (L x W x H) 77.47 x 46.8 x 21.38 mm (3.05” x 1.84” x 0.84”)
Weight 51.5 g (0.11 lbs)

Autel MaxiTPMS TS900 Package List

  • 1x TS900 Main Unit
  • 1x MaxiVCI V150
  • 1x Power Adapter
  • 1x USD Type-C Cable
  • 1x Soft Cloth
  • 1x Quick Reference Guide
  • 1x Packing List(This document)
  • 1x Carrying Case
