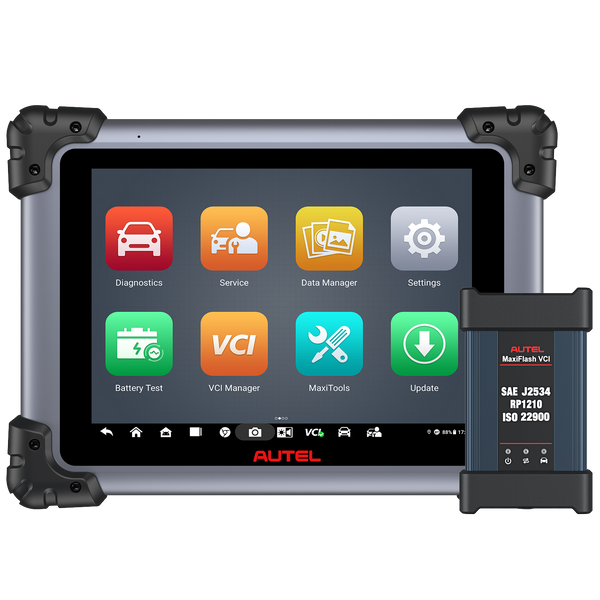

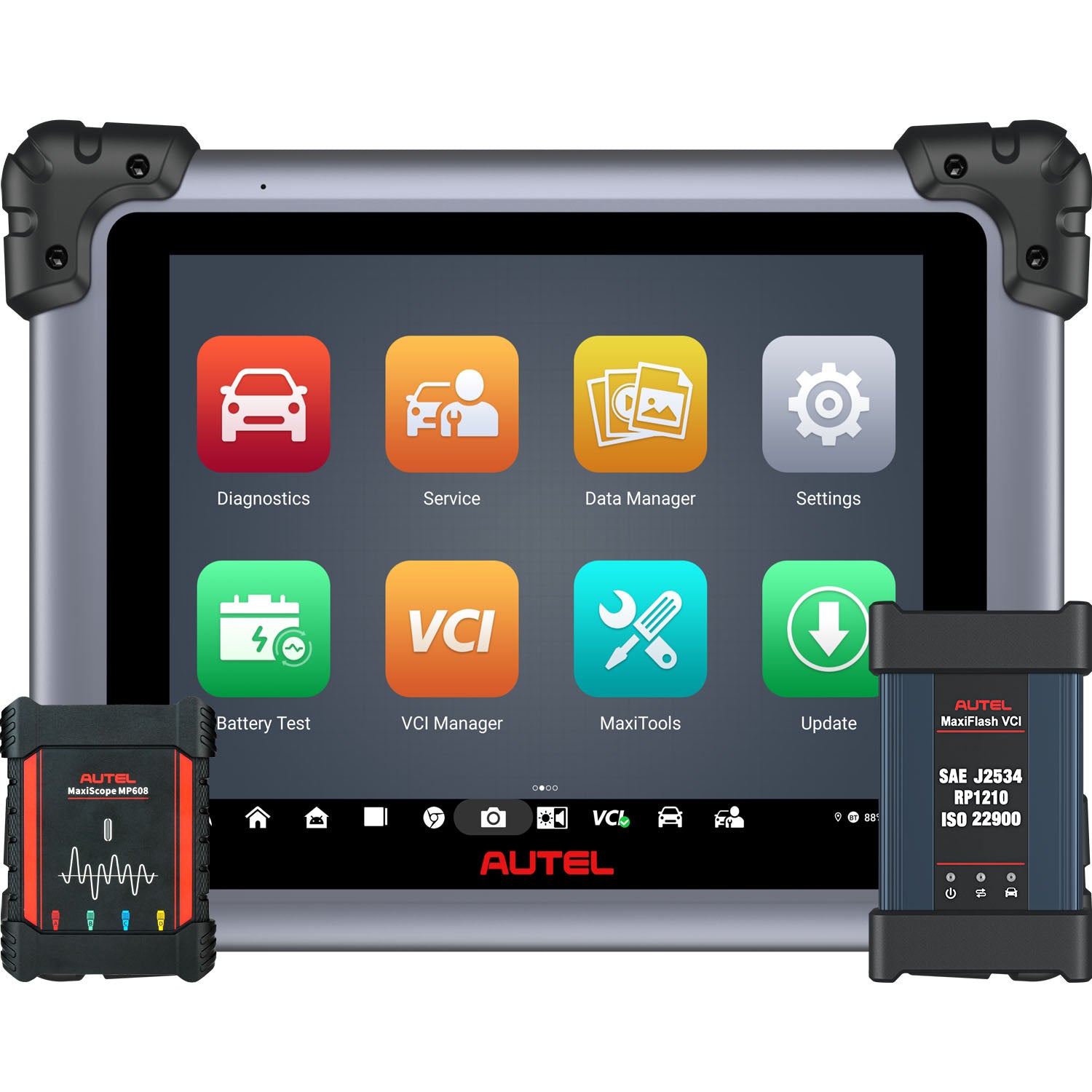

MaxiSys Elite II Pro
MaxiSys Elite II Pro rapidly performs every job, from comprehensive vehicle diagnostics and analysis to advanced ECU programming
$2,369.00
$2,569.00
/
- Newest 2025 Version: Autel Maxisys Elite II Pro comes with two years of free updates. As the upgraded version of the MaxiSys Elite II, it boasts enhanced software and hardware, and introduces new features like DoIP/CAN FD protocol support, battery testing (with BT506), Wi-Fi printing, FCA AutoAuth, and more.
- Advanced ECU Programming & Coding: Autel Elite II Pro Scanner offers the same online ECU programming as the Autel Ultra series. It supports programming new blank ECUs for Benz and BMW, ECU coding for various brands such as Benz, BMW, Audi, Porsche, VW; unlocking hidden features for BMW, Audi, VW, and Skoda, and VAG-guided functions for VW, Audi, Skoda, Seat, and Bentley.

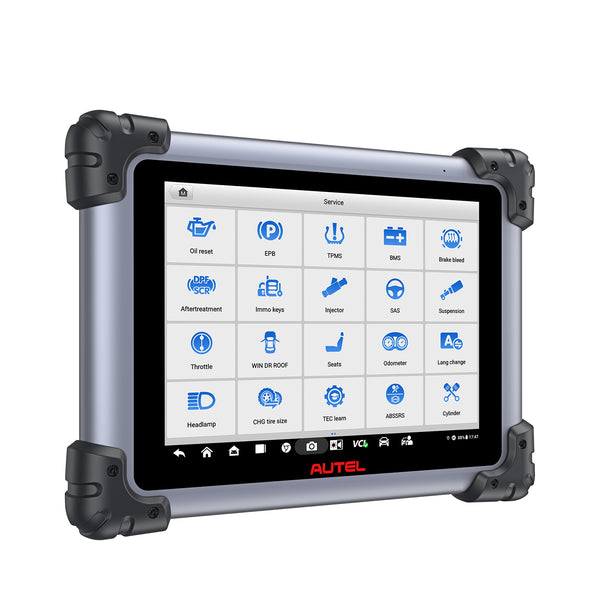

- 40+ Essential Maintenance Services: Maxisys Elite II Pro includes over 40 critical functions such as oil reset, EPB, SAS, DPF regeneration, throttle adaptation, suspension calibration, ABS bleeding, injector coding, and more.
- Bi-Directional Control (Active Tests): Supports active tests, enabling you to send commands to the ECU to activate components like ABS, windows, doors, solenoids, relays, switches, valves, headlamps, and more. This feature helps diagnose faulty components quickly and accurately.

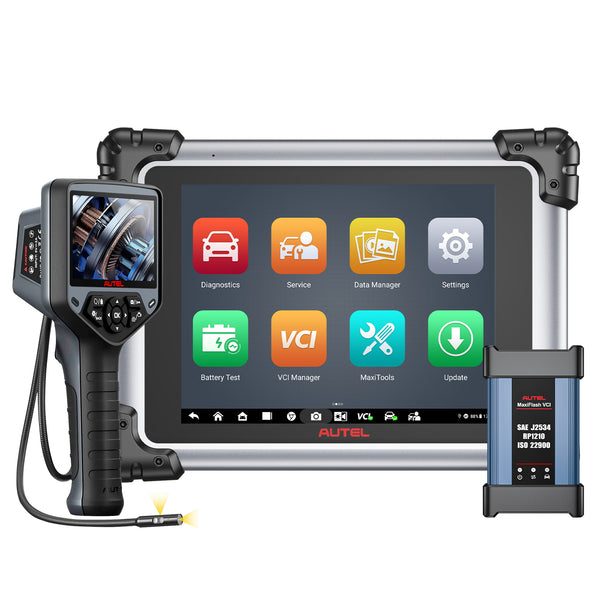

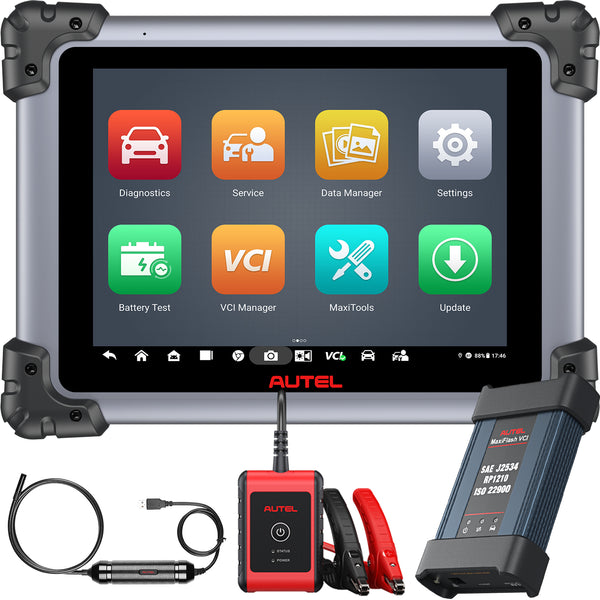

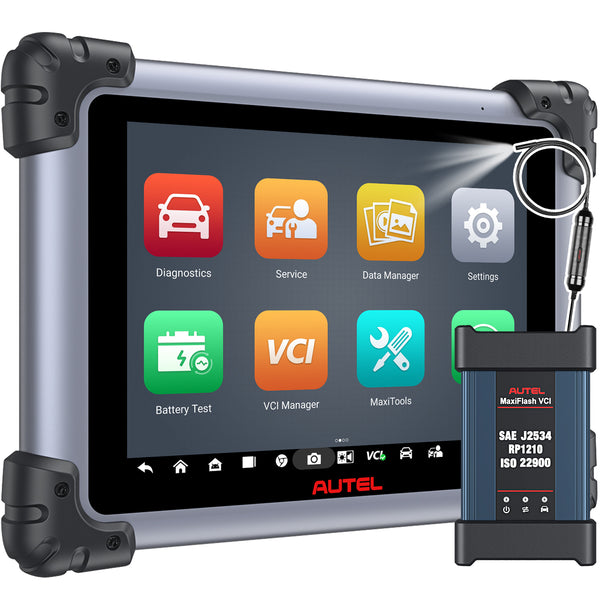

- Comprehensive Features: Autel Elite II Pro offers support for 21+ languages, diagnostics for Tesla & McLaren, D-PDU/RP1210/DoIP/CAN FD protocols, FCA AutoAuth, Pre & Post Scan, VIN scanning, license plate scanning, Wi-Fi printing, Work with MV108S Inspection Camera and BT506 Battery Tester, and AutoScan 2.0 for complete vehicle scanning.
Videos for this product
-
Autel Maxisys Elite II Pro Unboxing
-
Maxisys Ultra VS Maxisys Elite
-
Autel Tech Tips: Install an SD Card into a MaxiSYS Elite for Insufficient Space
-
AUTEL MAXISYS ELITE KEY PROGRAMMING
-
Autel MaxiSys Elite review and run through
Videos for this product
Autel Elite II Pro Features
- Comes with two years of free updates. (Note: Please provide the serial number of your device after receiving it to activate the update.)

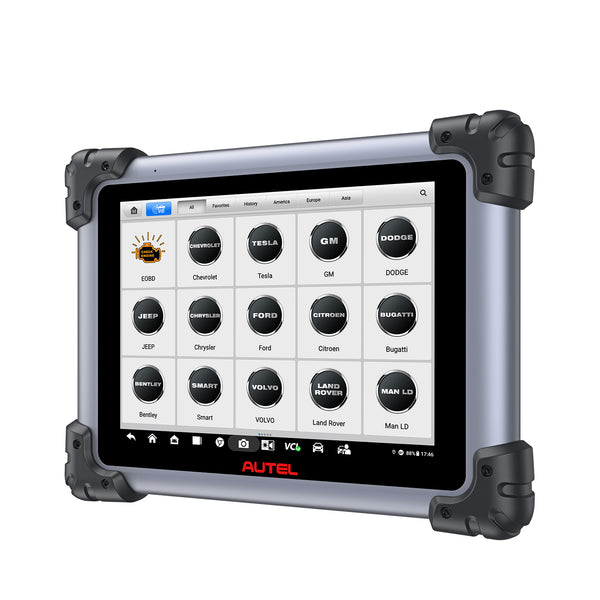

- Comprehensive System Coverage: Offers the most extensive system coverage for over 80 US, domestic, Asian, and European makes and models, providing you with complete diagnostic capabilities.
- OE-Level Functionality: Delivers exceptional OE-level diagnostics and services, including advanced OBDII functions, ECU coding, and programming to ensure accurate and reliable results.
- Integrated Vehicle Programming: Features integrated vehicle programming capabilities, working with SAE J2534-1 & -2 compliant vehicle programming pass-thru interfaces for seamless ECU programming.
- Automatic Updates: Automatic system and software updates with real-time push message notifications via the internet to ensure you always have the latest features and fixes.
- Instant Remote Support: Provides instant remote control tech support anytime, anywhere, for quick troubleshooting and assistance.
- Interactive Data Logging: Interactive data logging sessions enable direct contact with Autel Support for hands-on troubleshooting of diagnostic issues and errors.
- Efficient Workshop Management: A one-stop multitasking solution designed to manage workshop operations efficiently, keeping all data files, customer info, and vehicle records well organized.
- Ergonomic & Rugged Design: Features a unique ergonomic design with rubberized outer protection and a rugged internal housing to withstand tough working conditions.
- Includes two years of free updates and a one-year free warranty.
- Compare: Autel MS906, 908, 909, 919, Ultra Series
Autel Elite II Pro Specifications
| Operating System | Android 10.0 |
| Processor | Octa-core Processor: 4x 2.2 GHz(A73) 4x 1.8 GHz(A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch LED capacitive touch screen with 1536*2048 resolution |
| Connectivity | Wi-Fi (802.11 a/b/g/n/ac) |
| BT V5.0 + BR/EDR | |
| GPS | |
| USB 2.0:(2 USB HOST Type A, 1 USB mini device) | |
| HDMI 2.0 | |
| SD Card | |
| Camera (rear) | Rear: 16 Megapixel, AF with Flashlight |
| Power and Battery | 11000 mAh 3.7 V lithium-polymer battery |
| Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C | |
| Input Voltage | 12V (9-24 V) |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60 (14 to 140 °F) |

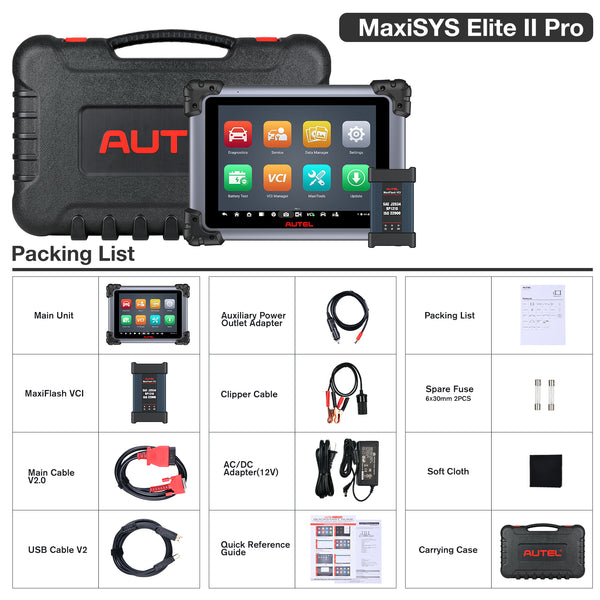

Autel Elite II Pro Package List
- 1x Maxisys Elite II Pro Main Unit

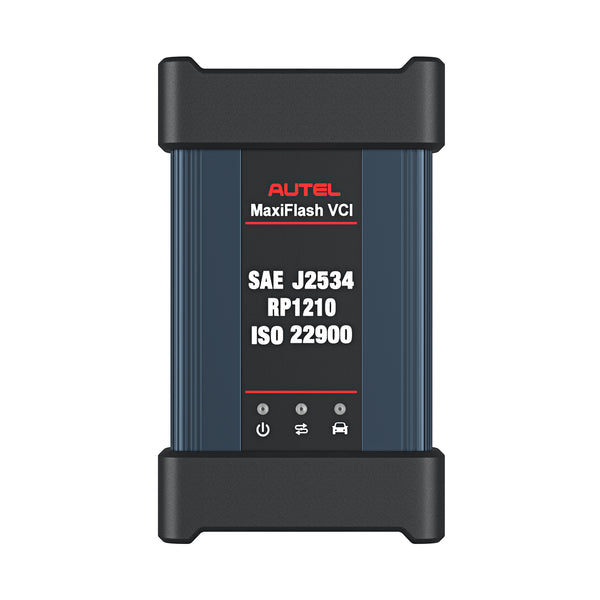

- 1x MaxiFlash VCI
- 1x Main Cable V2.0
- 1x USB Cable V2
- 1x Mini USB Cable
- 1x Auxiliary Power Outlet Adapter
- 2x Spare Fuse 6x30mm
- 1x Clipper Cable
- 1x AC/DC adapter (12V)
- 1x Soft Cloth
- 1x Quick Reference Guide
- 1x Packing List
- 1x Carrying case
Maxisys Elite II Pro User Manual
MaxiSys Elite II Pro_User Manual_EN V1.4 - Download
