MaxiIM IM508S Full Kit

It is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

  • Cost-effective Key Programming Tool: Autel MaxiIM IM508S Same as Autel IM608/IM608 Pro, the combination of full-system diagnostics and advanced service functions, can facilitate your diagnostic process. It is also an easy-to-use device for key fob programming when cooperating with XP200, providing extraordinary anti-theft services for repair shops and technicians.
  • Comprehensive IMMO & Key Programming Tool: Autel IM508S scan tool sets up a powerful section to further extend its capabilities of being a key programming tool. It can perform IMMO ECU reset/adaptation, refresh/coding, read PIN/CS (All Key Lost), key generation, key learning, remote learning. Note: ECU programming is not available.
  • Autel IM508 Smart Mode & 28+ Service Functions: The IM508S diagnostic scanner marks the epitome of functionality and versatility. Smart Mode, also known as guided functions, provides step-by-step instructions to guide you through the entire operation process. Advanced maintenance services allow for EPB/ DPF/ SAS/ BMS service, TPMS replacement and sensor test.
  • Strong OE-Level Diagnostics: IM508S is a universal key programming tool as it functions for 80+ vehicle brands from America, Europe, and Asia. Compared with the others IM508S on the market, this IM508S will not be restricted by IP address. It reads PIN and supports multiple languages.
  • Sound After-sales Service and Warranty: Autel MaxiIM IM508S key programming scanner comes with a 1-year free software update. It is also backed by a 30-day replacement or full refund, and a 12-month warranty. If you have any questions or want to check the compatibility, please contact us.

Videos for this product

    Videos for this product

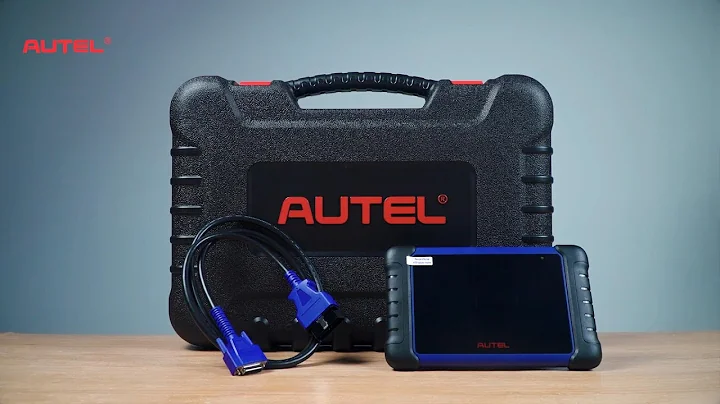

  • Autel MaxiIM IM508S IMMO Vehicle Coverage & Function Display

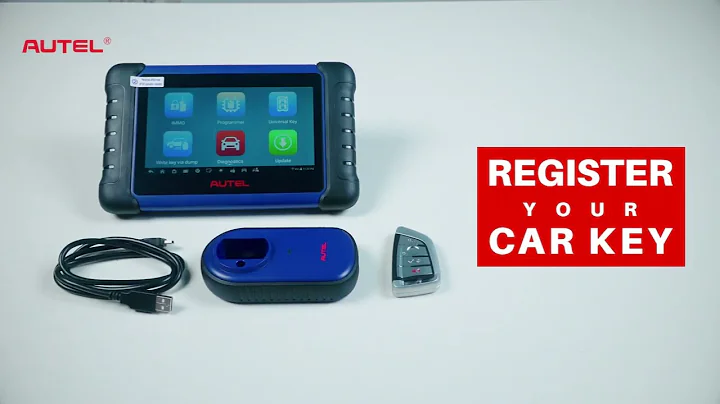

  • Autel MaxiIM IM508S Generate BMW 8 Series 2017-2020 iKEY

MaxiIM IM508S

Autel MaxiIM IM508S is a fast, easy-to-use, and ultra-portable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Equipped with the XP200 key programmer, IM508S is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.


Operating System Android 11.0
Processor Cortex-A55 processor (1.8 GHz)
Memory 4G & 64G
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
  • Mini USB 2.0
  • USB 2.0
  • Wi-Fi
  • Micro SD card (supports up to 64GB)
Sensors Ambient light sensor for brightness auto changing
Audio Input / Output Input: N/A
Output: buzzer
Power and Battery 3.7 V/5000 mAh lithium-polymer battery, Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. 0 to 50°C (32 to 122°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Operating Humidity 5% - 95% non-condensing
Net Weight 788 g (2.42 lb.)
Autel MaxiIM IM508S User Manual
Autel MaxiIM IM508S Quick Guide

Package List

  • 1 x IM508S Main Unit
  • 1 x XP200 Key Programmer
  • 1 x XP400 Pro Key Programmer
  • 1 x IMKPA
  • 1 x APB112
  • 1 x G-BOX3
  • 1 x Main Cable
  • 1 x Mini USB Cable
  • 1 x Power Adapter
  • 1 x AAC001
  • 1 x APB001(EEPROM Adapter)
  • 1 x APB002(68HC908 Adapter)
  • 1 x APA002(EEPROM Socket)
  • 1 x APA001(EEPROM Clamp Integrated MC9S12 Cable)
  • 1 x KIA-10 Adapter
  • 1 x KIA-20 Adapter
  • 1 x HONDA-3 Adapter
  • 1 x MAZDA-17 Adapter
  • 1 x Packing List
  • 1 x Soft Cloth
  • 1 x Quick Reference Guide
  • 1 x Carrying Case(504x360x133mm)
