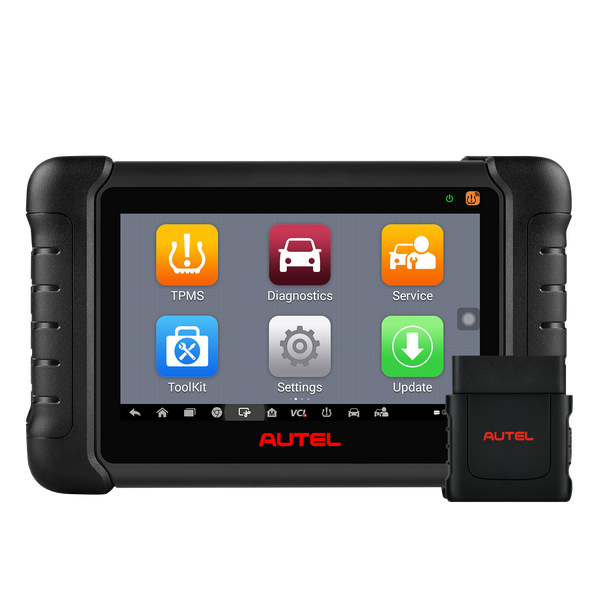

MaxiTPMS TS608

First TPMS & Diagnostic tool in the market, with TPMS health check/sensor programming/relearn, all system diagnostics.

$649.95
  • Complete TPMS Functions:Activate all known TPMS sensors and read sensor status/Diagnose ECU for complete TPMS health check/Read DTCs from ECU and erase DTCs/Program MX-Sensors two ways/On-tool relearn procedure and wide OBD relearn coverage/oolkit, special TPMS functions
  • All System Diagnostics:Read/clear codes,Supports all 10 test modes,Enhanced OBDII Mode 6,Display live data in text, graph & analog for easy data review,Support active test and complete special functions

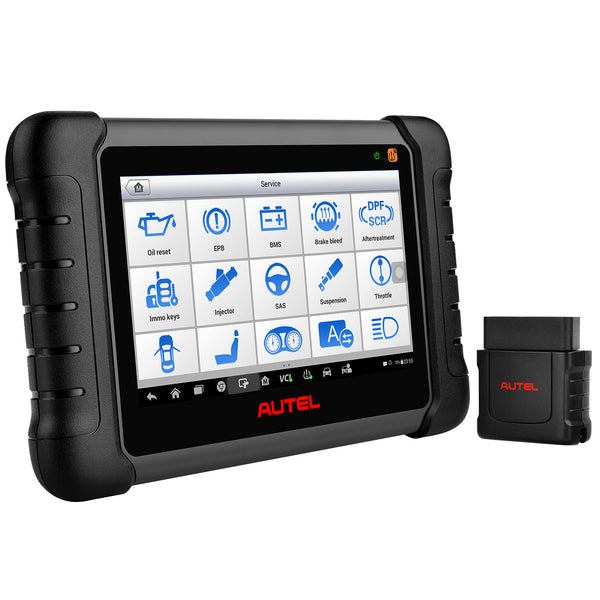

  • Advanced service Features :ABS/EPB/SAS/Oil reset/DPF/BMS
  • Wireless Bluetooth MAXI-VCI Mini:Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.

Videos for this product

    Videos for this product

  • @Autel MaxiTPMS TS608 Introduction
  • @TS608 — Advanced Service Functions + All Systems Diagnostics
  • @TS608 — TPMS Relearn Function
  • @TS608 — MX-Sensor Programming
  • @TS608 — Causes and Resolutions for TPMS MIL ON

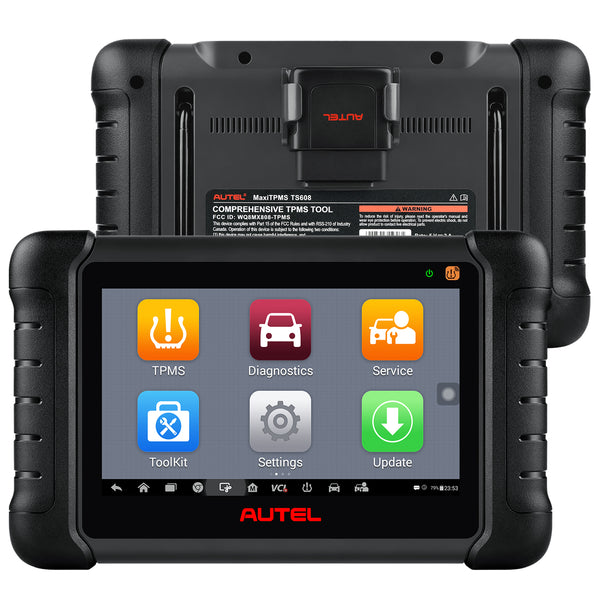

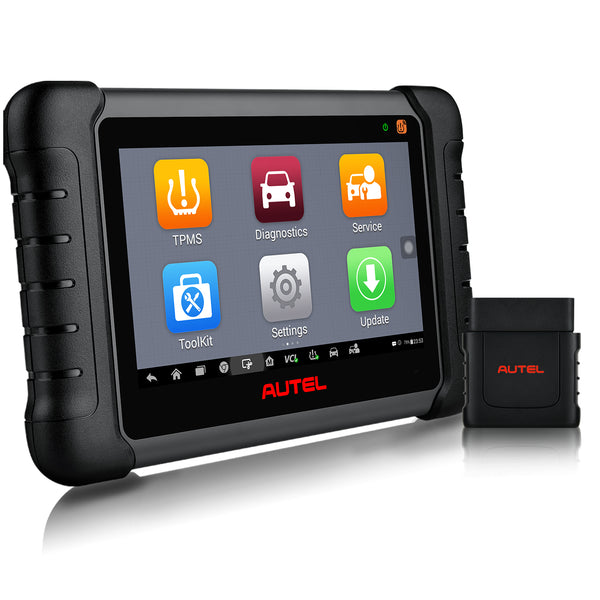

Autel MaxiTPMS TS608

COMPLETE TPMS & ALL SYSTEM SERVICE TABLET TOOL
As the first comprehensive TPMS & Diagnostic tool in the market, MaxiTPMS TS608 provides you with superior experience in TPMS health check, sensor programming, TPMS relearn, all system diagnostics as well as special service functions. Equipped with a 7-inch touch screen with 1024 * 600P resolution and a VCI mini for wireless communication with the test vehicle, powered by the quad-core Cortex-A9 processor for smooth operation and featured by advanced TPMS & Diagnostic technology, MaxiTPMS TS608 is setting new standards for TPMS service tools.

Specifications:

Recommended Use Indoor
Operating System Android™ 4.4.2, KitKat
Processor Cortex-A9 processor (1.6 GHz)
Memory 1GB RAM DDR3 & 64GB ROM
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0;
USB 2.0;
Wi-Fi;
HDMI Type A;
Micro SD card slot (supports up to 32GB);
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A;
Output: Beep;
Power and Battery 3.7 V/5000 mAh lithium-polymer battery;
Charges via 5 VDC power supply;
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% - 95% non-condensing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight 885 g (2.31 lb.)
Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM,
ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN),
SAE J2610, GM UART,UART Echo Byte Protocol,
Honda Diag-H Protocol, TP2.0, TP1.6

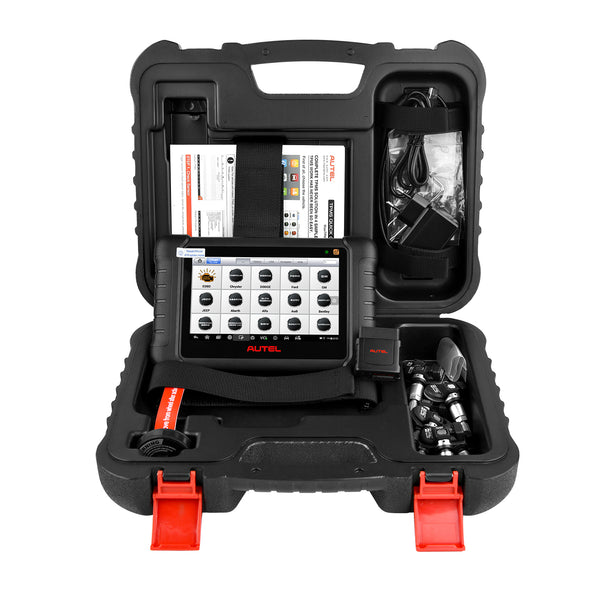

Package

  • 1 x MaxiTPMS TS608 Main Unit
  • 1 x MaxiVCI Mini
  • 1 x USB Cable (for test) and Magnet
  • 1 x USB Cable (for charging)
  • 1 x USB External Power Adapter
  • 1 x Hex Key
  • 1 x User Manual
  • 1 x Quick Reference Guide
