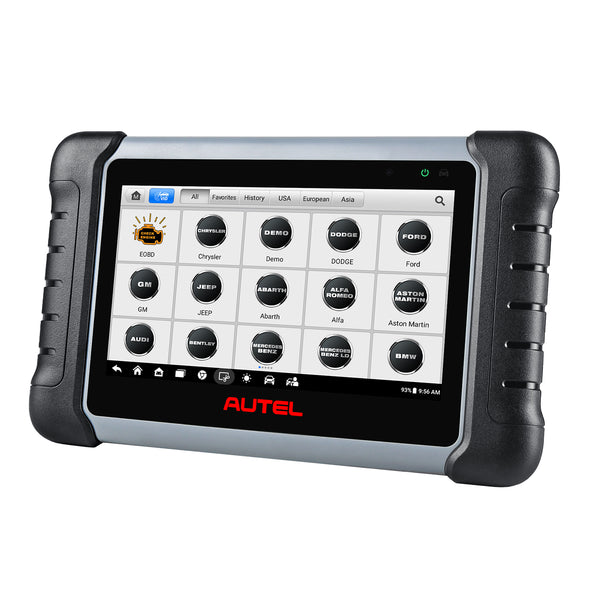

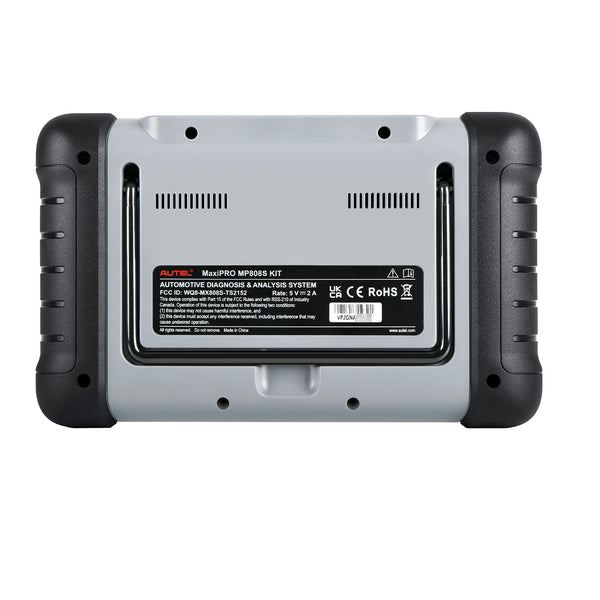

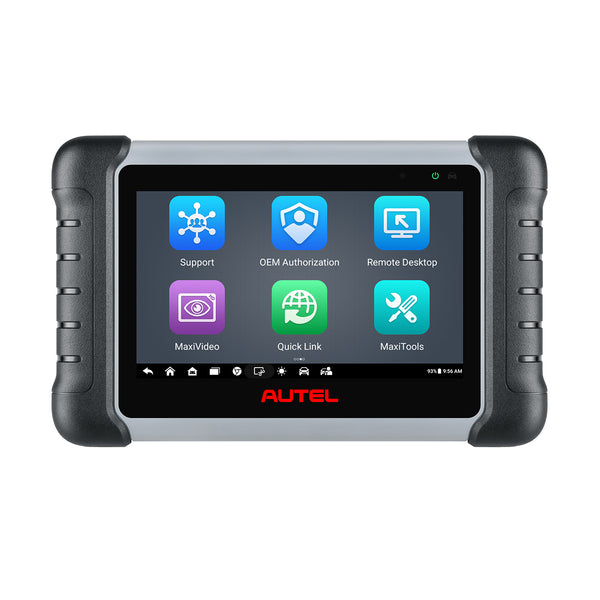

Autel MaxiPro MP808S Kit

Dealership-level diagnostic scanner, equipped with extensive vehicle coverage and bi-directional control function.

$639.00 $749.00
  • OE-Level All Systems Diagnosis - MP808S Kit can access all systems such as PCM, ECM, TCM, BCM, SCCM, etc. on 80+ US, EU and Asian car makes to read and clear codes, view live data and graph.
  • 28+ Special Reset Service - Upgraded from MP808, this diagnostic scan tool MP808S Kit is expanded to 28+ service functions for technicians to handle more repairs: Oil, SAS, EPB, TPMS, Injector Coding, Bleeding, DPF, Battery, Throttle & IMMO plus many more.
  • Extensive Vehicle Coverage - Autel MP808S Kit supports all OBD2 vehicles. 11 Non-Standard OBDII adapters kits for more vehicle models and modules to perform “dealership” level diagnostics.
  • Bi-directional Control - With bi-directional control (active test) capability over various car systems, and components like solonoids, relay, switch, valves, sunroof, window, door and perform active test.
  • AutoAuth Access for FCA Vehicles - 2024 Autel scanner MP808S Kit can full access to protected FCA vehicles! With an authenticated AutoAuth account, you can access''Auto Auth'' gateway for 2018 and newer FCA vehicles(Chrysler/JEEP/Dodge/Fiat) in the US, Canada,and Mexico to perform diagnostic!

Item: MP808S Kit

Videos for this product

    Videos for this product

  • Autel MaxiPro MP808 Diagnostic Scan Tool
  • Autel MP808 Ford ABS Brake Bleed (Try before Replacing the Pump)
  • Autel MP808 Quick Review
  • Autel Maxipro MP808 Español
  • Autel mp808 how to register and update
  • Comes with Two Years Free Update
  • Includes OE-compliant non-OBD II adapter kit for specific vehicles
  • Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
  • Exceptional OE-Level system coverage for all electronic systems
  • Read and erase codes, view and graph Live Data, perform bi-directional Active Tests, and perform adaptations
  • AutoVIN technology automatically identifies vehicle make, model, and year
  • Wi-Fi-enabled automatic software and system updates
  • Powerful Cortex-A55 processor (1.8 GHz) processor
  • 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display
  • 64GB on-board memory for better performance
  • Android 11 operating system for fast boot-up and multitasking
  • Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Convenient data management system for managing internal program applications and reviewing data

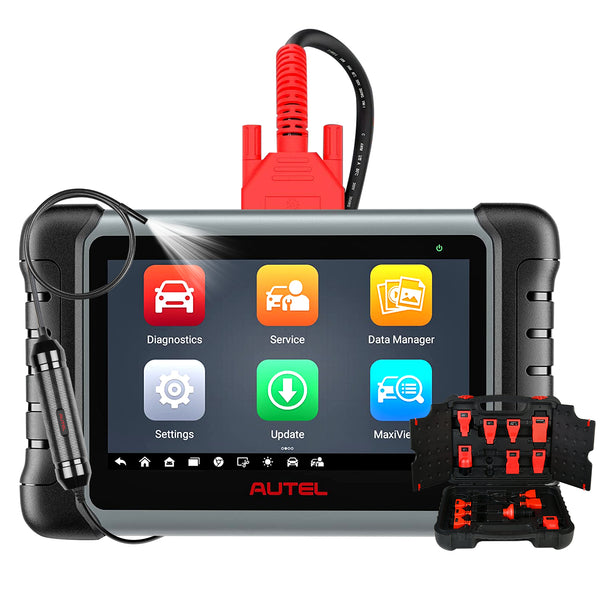

  • Compatible with Videoscope
  • Instant remote control tech support anytime, anywhere
  • Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

Specification

Operating   System Android 11
Processor Cortex-A55 quad-core processor (1.8GHz)
Memory 4GB RAM & 64GB On-board Memory
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Wi-Fi(802.11a/b/g/n/ac)
USB 2.0,Mini USB 2.0
SD Card (Support up to 64GB)
Sensors Light sensor for brightness auto adjust
Audio Input/Output Input: N/A
Output: Beep
Power and Battery 3.7V/5000mAh lithium-polymer battery
Charges via 5 VDC power supply
Input Voltage 5V/1.5 A
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions(WXHX D) 270.8 mm (10.0”) x 176.0 mm(6.9”) x 36.0 mm (1.4”)
Protocols  ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing   Code, SAE-J1850 VPW, SAE-J1850PWM,   ISo11898(Highspeed, Middlespeed, Lowspeed    and Singlewire CAN, fault-tolerant CAN) SAE J2610, GM UART UART Echo   Byte Protocol, Honda Diag-H Protocol,TP2.0,TP1.6

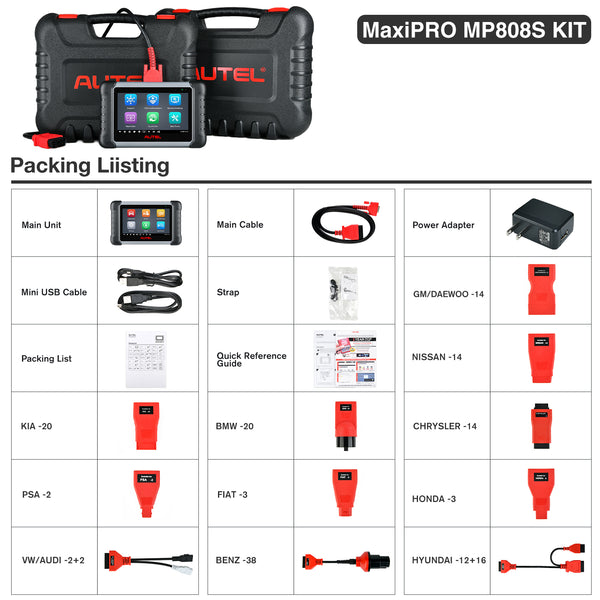

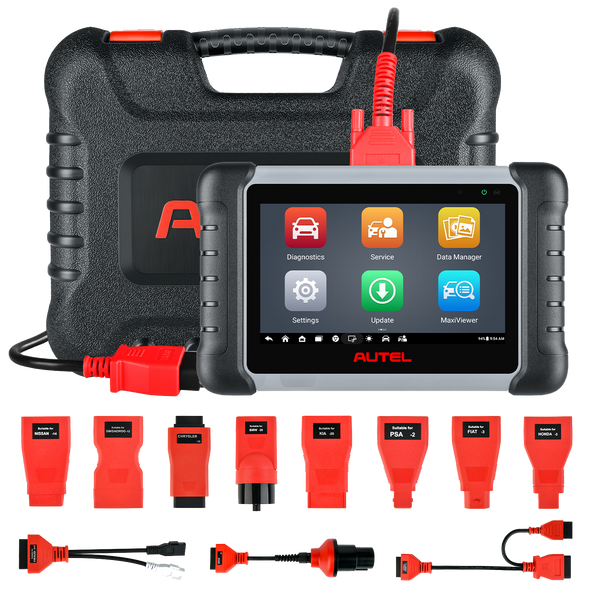

Package List

  • 1x MP808S Main Unit
  • 1x Main Cable
  • 1x Mini USB Cable
  • 1x Power Adapter
  • 1x Honda-3
  • 1x Nissan-14
  • 1x Mitsubishi/Hyundai-12+16
  • 1x Kia-20
  • 1x BMW-20
  • 1x Volkswagen Audi-2+2
  • 1x GM/Daewoo-12
  • 1x Benz-38
  • 1x Fiat-3(Available in Europe Only)
  • 1x PSA-2(Available in Europe Only)
  • 1x Chrysler-16(Available in America Only)
  • 1x Benz-14(Available in Europe Only)
  • 1x Quick Reference Guide
  • 1x Packing List
  • 1x Soft Cloth

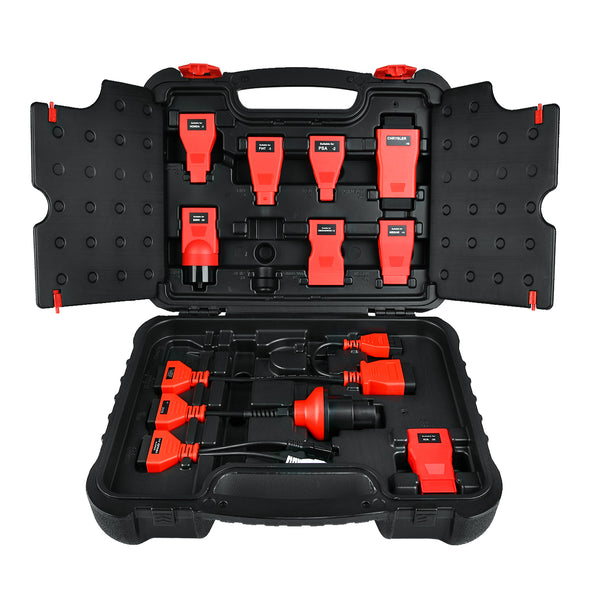

  • 1x Carrying Case(with Main Unit)380x300x120mm
  • 1x Carrying Case(with Adapters)409x320x140mm
