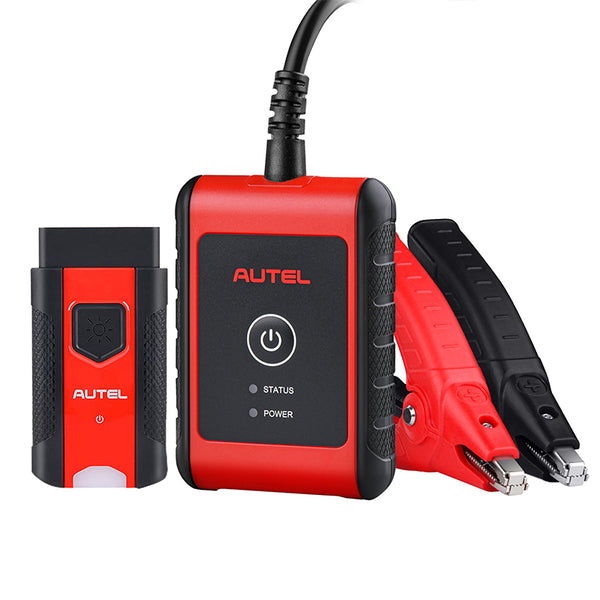

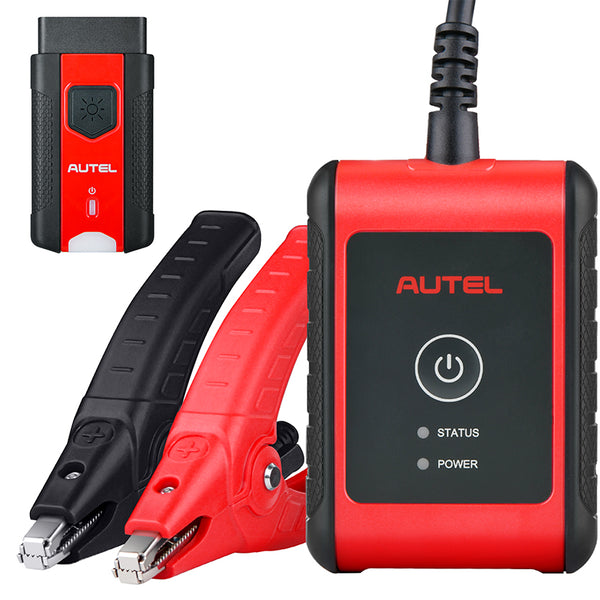

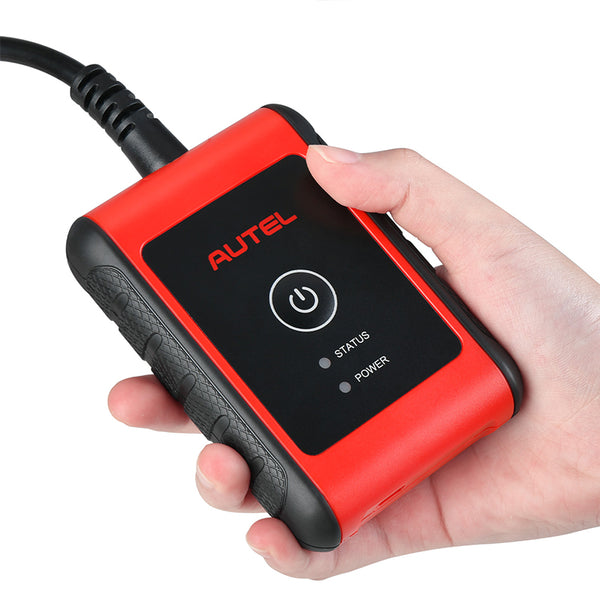

Autel MaxiBAS BT508

  • Upgraded Version of BT506 - Autel BT508 has all the functions that BT506 offers and extra functions for battery registration for 53 makes, Electrical reset, Auto vin detection, battery health report ect.
  • Adaptive Conductance - BT508 comes with innovative adaptive conductance technology for more accurate examinations. It can help you ①Test accuracy rate by 96.11%, ②Bad battery detection rate by 63.55%, ③Reduce charge and retest by 30.03%, detect the battery SOH, provides reliable results of the battery’s cold cranking ability and reserve capacity.
  • Cranking And Charging Systems Test - Autel MaxiBAS BT508 supports in-vehicle and out-of-vehicle testing of passenger vehicle batteries and testing 12- and 24-volt starting/charging systems. Cranking and charging diagnostics to make sure the output voltage of the generator is in a regular condition, the rectifier diode works fine and the charging current is a normal status.
  • Full Systems Diagnose & AutoVIN - Autel BT508 automobile battery tester can acces all available systems, such as Engine, Transmission, ABS, SRS, BCM, TPMS, Air Conditioning, Airbags ect to read / clear codes, view live data, freeze frame, ECU information ect.

Autel MaxiBAS BT508 Specification

Connectivity: USB 2.0; Type C; Bluetooth V3.0 BR/EDR+ V4.2 LE Dual-Mode
Input Voltage: 5 V DC
Working Current: 150 mA at 12 V DC
CCA Range: 100 to 2000 A
Voltage Range: 6 to 36 V
Working Temperature: -10° to 50° C (14° to 122° F)
Storage Temperature: -20° to 60° C (-4° to 140° F)
Dimension (L x W x H): 107 mm (4.21“) x 75 mm (2.95”) x 26 mm (1.02”) (clamp cable not included)
Weight: 320 g (0.7 lb.)

Autel MaxiBAS BT508 Package List

  • 1x BT508 Main Unit
  • 1x Battery Clamp Cable (Black)
  • 1x Battery Clamp Cable (Red)

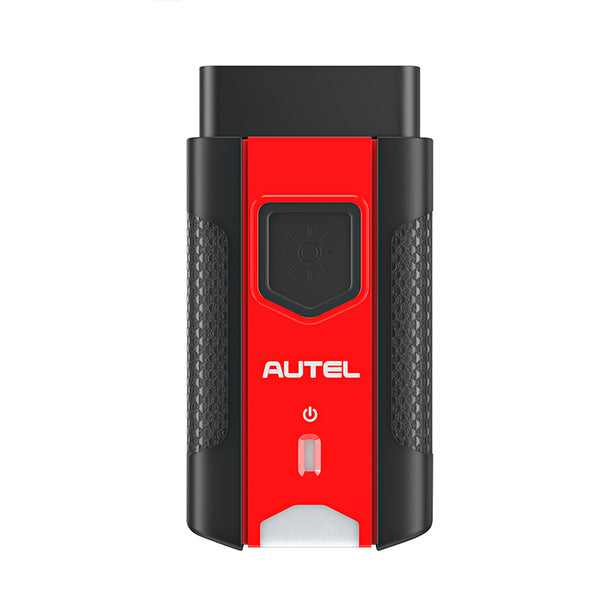

  • 1x VCI200
  • 1x User Quick Guide
