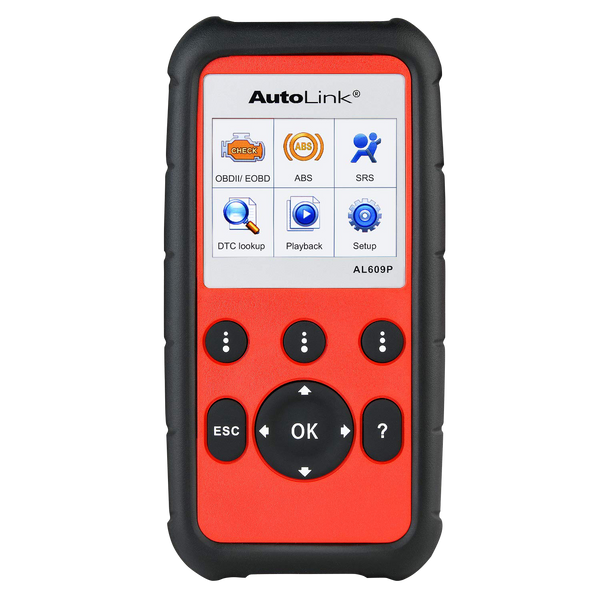

Autel AutoLink AL609P

The AL609P OBDII diagnostic scanner provides convenient service to read and erase codes for the ABS and Airbag systems and reset monitors.

  • ABS + SRS Systems Diagnostic - Autel AL609P OBD2 Scanner can read/ erase ABS, SRS fault codes, turn off ABS warning light.
  • All 10 Modes of OBD2 Tests - The AL609P OBD2 scanner can access Powertrain Control Module and perform ALL 10 modes of OBD2 tests on vehicles to check emission related conditions, including: Read & Clear Codes, View Freeze Frame data, I/M Readiness Status(Smog Check), etc.
  • Turn off Check Engine Light - Autel AutoLink AL609P Pro is an enhanced car engine scanner that you can check all engine related fault codes, find out what caused the check engine light comes on, turn off Malfunction Indicator Light(MIL), and locate bad O2 sensors.
  • AUTO VIN - AL609P professional OBD2 code reader automatically acquire vehicle VIN number to perform OBD2 diagnosis accurately and efficiently.

Videos for this product

    Videos for this product

  • AutoLink Complete Tool Line
  • Reads and erases DTCs for ABS and SRS on most 1996 and newer major vehicle models
  • Works on most 1996 and newer vehicles (OBDII & CAN) – domestic and import
  • Retrieves generic (P0, P2, P3, and U0), manufacturer specific (P1, P3, and U1) codes and pending codes
  • Turns off Check Engine Light (MIL) and ABS warning lights, clears codes and resets monitors
  • Reads, stores and plays back live PCM data stream and live sensor data
  • Retrieves vehicle information (VIN, CALID and CVN)
  • Views freeze frame data
  • Troubleshooter code tips guide technicians to the root cause of trouble codes faster
  • Graphs data
  • Multilingual support – English, Spanish, French, etc.
  • 2.8’’ LCD with 320X240 resolution
  • Internet updatable via USB
  • Prints data via PC


Display 2.8-inch LCD (320 x 240 dpi)
Connectivity USB mini 2.0 OBD II DB15
Operating Temp -10°C to 60°C (14°F to 140°F)
Storage Temp -20°C to 70°C (-4°F to 158°F)
External Power 8.0 to 18.0 V power provided via vehicle battery
Dimensions (LxWxH) 182.8 mm (7.2”) x 90.9 mm (3.6”) x 33.2 mm (1.3”)
Net Weight 237.9 g (0.524 lb.)

Package List

  • 1x AL609P OBD2 Code Reader
  • 1x User Manual
  • 1x Carrying Case
  • 1x Quick Reference Guide
  • 1x Main cable
  • 1x Mini USB Cable
