Autel MaxiTPMS TBE200

$449.00

Easier Measurement - Tire tread depth brake disc wear check in one tool, no need to remove the wheel during measurement
Newest 2-in-1 Tire Brake Examiner - Autel TBE200 is the upgraded version of TBE100 added scan DOT, tire expiration notice, tire recall lookup, take photos of tire wear and damage etc, supports almost all tire types, comprehensive test report (Need ITS600).
Tire Tread Depth & Brake Disc Wear Tester - Autel MaxiTPMS TBE200 is not only a laser inspector with a measuring accuracy of 0.1 mm, but also measurements displayed graphically. It is convenient for technics and repair shops to measure tread depth/brake disc wear without removing wheel

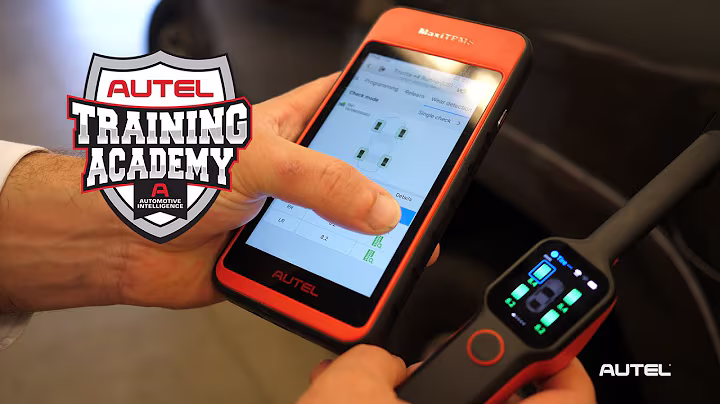

Enhancing the TBE200 with the ITS600 - When used with the ITS600, The TBE200 will take advantage of the ITS600’s larger screen to collect tire tread and brake disc wear information, combine it with TPMS information from the ITS 600 to produce comprehensive vehicle health reports that include detailed information for both service areas. These reports can be printed and presented or kept as records for the repairer.
Real-Time Tire Health Analysis - Autel TBE200 tread depth reader provides wear analysis and displays the measurement data curves in real-time and service advice on its 1.65-inch-high resolution Super Retina touchscreen AMOLED

Item: TBE200E TBE200E TBE200E + ITS600E

Product variants

Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
Laser measurement with 0.1mm accuracy
Full tread measurement
Quick Check both tread depth & brake disc
Real-time measurement data on touchscreen
Measurement data curve display
Uneven wear analysis
Test detail for single tire tread / brake disc
Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)
Scan DOT, tire expiration notice, tire recall lookup
Take photos of tire wear & damage

Specifications

Recommended Use	Indoor
Processor:	4x ARM Cortex-A35 (1.5 GHz)
Memory:	1GB RAM LPDDR3 4GB ROM
Display:	1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity:	Wi-Fi/USB 2.0/Type C
Sensors;	CMOS WXGA, 1 megapixel 8 megapixel, 30fps
Audio Input/Output:	Output: Beep
Power and Battery:	3.7 V/3000 mAh 18650 lithium-ion battery/Charges via 5 V AC/DC power supply
Tested Battery Life:	Around 8 hours of continuous use
Battery Charging Input :	5 V/1.5 A
Power Consumption:	300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp.:	-10to60°C(14to140°F)
Storage Temp.:	-20to70°C(-4to158°F)
Operating Humidity:	5%-95%non-condensing
Dimensions (W x H x D):	283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
Net Weight	188 g (0.41 lb.)
