Autel MaxiTPMS ITS600
ITS600 is your ideal choice to complete TPMS and tire health work,offers complete TPMS diagnostics and service functions.
-
Everything TPMS Solutions: Activates, reads and relearns all known sensors
Fast OBDII relearn, Copy By OBD sensor programming,Batch program up to 20 MX-Sensors,Wireless Bluetooth (VCI), Free Wi-Fi software updates lifetime
- Quick Vehicle ID Technology:Rapid VIN acquisition via optical VINScan,QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input,Identify MMY and sensor OE part number via VIN decoding
- Diagnostics& Service: Oil light reset,Electronic brake service,Battery registration,Steering angle reset,
- Expanded Tire Service:Quick & Easy Tire DOT Number Scan,Tire Expiration Notice,Tire Recall Lookup,Tread Depth & Brake Disc Wear
Videos for this product
-
The Pro Upgrade: Maximize The Autel MaxiTPMS ITS600
-
@Autel MaxiTPMS ITS600 Unboxing
-
The Autel ITS600 Makes TPMS Sensor Programming Simple
-
@Autel MaxiTPMS ITS600 - TPMS Relearn Function
-
@Autel MaxiTPMS ITS600 Functionality & Screen Flow
Videos for this product
Autel MaxiTPMS ITS600

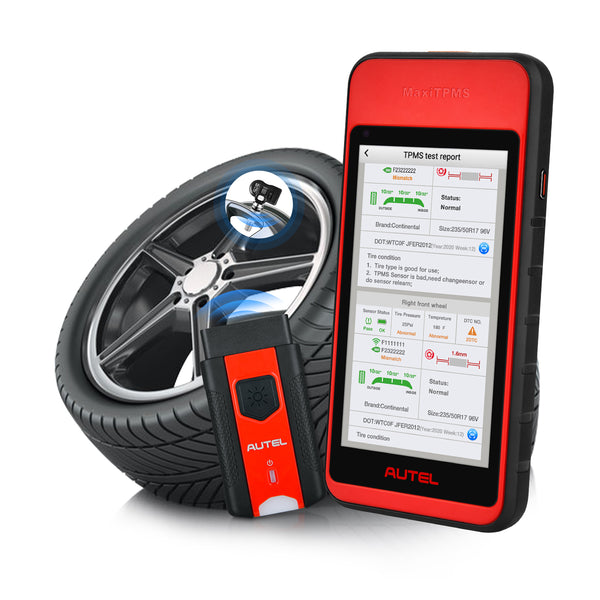

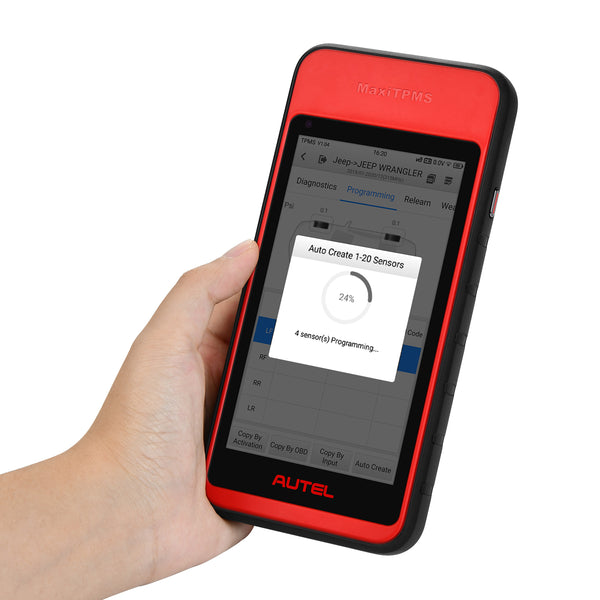

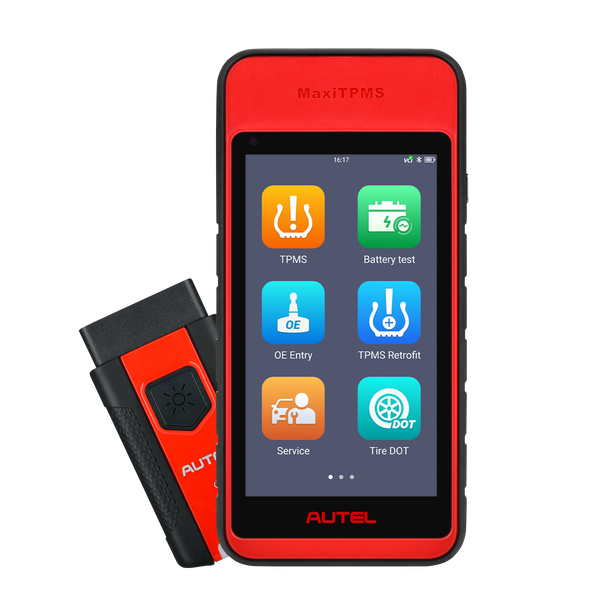

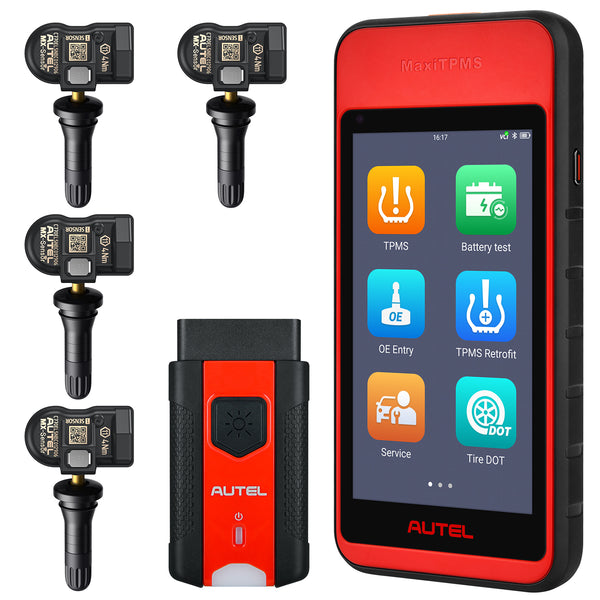

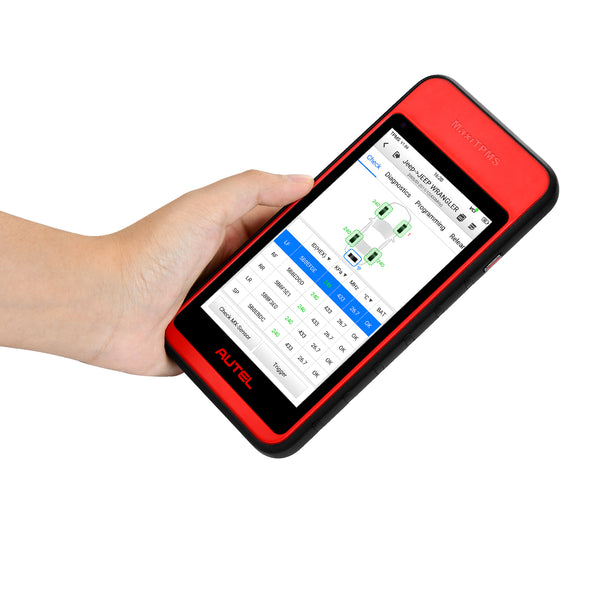

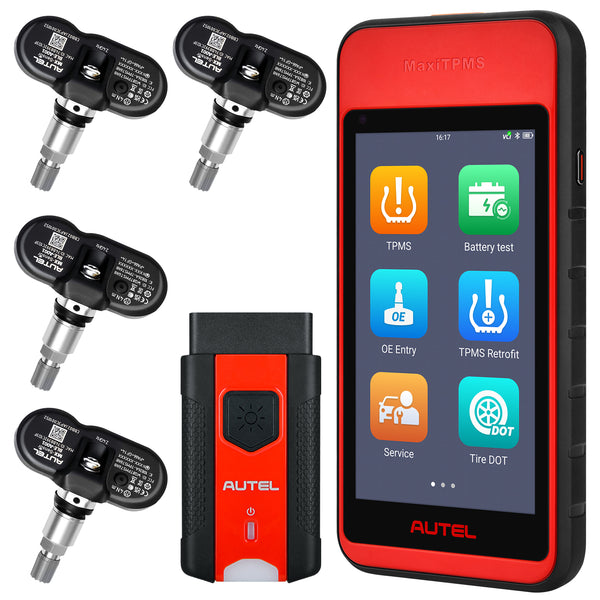

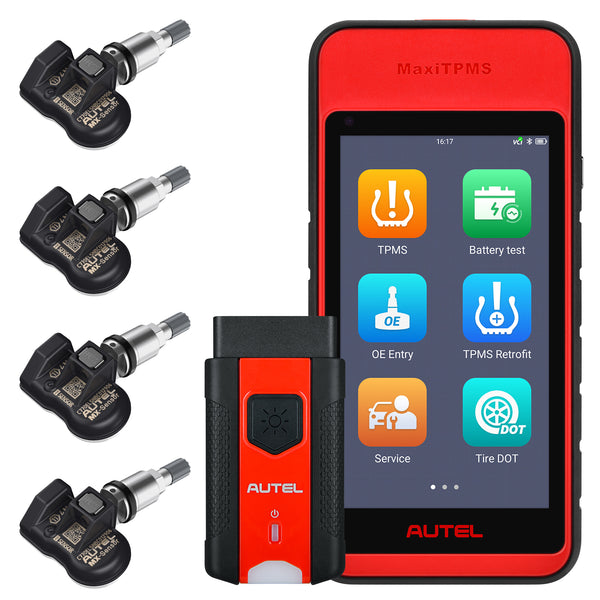

The MaxiTPMS ITS600 is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions.
The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600 features an enhanced TPMS status screen, VINscan for rapid vehicle identification, four MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles.
The ITS600 can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup.
The ITS600 is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600 is your ideal choice to complete TPMS and tire health work.
The ITS600 includes one year free warranty and Lifetime Free Update.
Specifications
| Recommended Use | Indoor |
| Operating System | Android™ 9.0 |
| Processor | Quad-core processor (1.5 GHz) |
| Memory | 2GB RAM DDR4 & 64GB ROM |
| Display | 5.5-inch LCD capacitive touchscreen with 1280x720 resolution |
| Connectivity | • Wi-Fi • USB 2.0, Type C • BT |
| Sensors | Light sensor for brightness auto adjust |
| Audio input/output | Input: N/A Output: Beep |
| Power and Battery | • 3.8 V/5000 mAh lithium-polymer battery • Charges via 5 V AC/DC power supply |
| Battery Charging Input | 5 V/2 A |
| Power Consumption | 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”) |
| Net Weight | 368 g (0.8 lb.) |
| Protocols | ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66 |
Package list:
- 1x MaxiTPMS ITS600E Main Unit
- 1x MaxiVCI V200
- 1x Power Adapter
- 1x Type C USB Cable
- 1x Hex Key
- 1x Quick Reference Guide
- 1x Packing List
- 1x Carrying Case
