MaxiIM IM608 PROKPA

The advanced key and immobilizer programming bundle of the MaxiIM IM608 Pro, XP400Pro key and chip programmer, JVCI J2534 pass thru programming device and the Key Programming Adapter kit.

$3,395.00
  • 2-Year Update Key Programming Tool: Autel IM608 PROKPA is the perfect combination of a top diagnostic scanner and key fob programming tool with 2-year update, designed for pro locksmiths and auto mechanics.It is equipped with XP400 PRO key programmer,MaxiFlash ECU programmer and IMKPA Key programmer Adapter kit to provide complete coverage of IMMO and programming functions.
  • Complete Key Programming & IMMO: Autel IM608 PROKPA featured Read PIN/CS (all key lost), key generation, key learning, remote learning; Backup/ Restore IMMO Data, IMMO ECU reset/adaptation, refresh/coding; Transpronder read/write, EEPROM/MCU read/write, unlock 11 key types, etc advanced IMMO & key programming fucntions.
  • OE-level Diagnostic & & 30+ Services: With the same diagnostic capability as MS908/MK908, Autel IM608 PRO scanner provides you with all special functions to quickly diagnose all modules to read & erase DTCs, and view live data. Also with 30+ advanced maintenance services including EPB, DPF, SAS, SRS, Oil reset, ABS bleeding and BMS.
  • Advanced ECU Coding & Bi-Directional Control: Autel IM608 Pro has advanced ECU Coding function, it allows you to modifications/change pre-programmed options already existent in vehicles' ECU to unlock hidden functions, improve vehicle performance, or used to activate/match/ code/relearn the replaced ECU modules. And with the bi-directional feature, you can test on subsystems or components to check the integrity of systems.
  • 10000+ Vehicle Coverage and FCA: Autel IM608 Pro diagnostic scanner can work on over 10000+ US, EU and Asian models including 12V sedans, light trucks and SUVs. The latest IM608 Pro are certified by FCA to access SGW module.

Videos for this product

    Videos for this product

  • IM608PRO & IMKPA Key Programming Adapter Set Webcast Training
  • Autel IM608 Pro Introduction and Unboxing | Key programming
  • Need a new Honda key? Follow these tips and get a new key fast!
  • Autel IM608 Pro | Make a car key without original one | Key programming
  • How to program a new on Mercedes-Benz | Autel IM608 Pro
  • Lost all keys? 5 minutes to get your lost Mercedes Benz car keys replaced!
  • How to do EEPROM Programming with a Porsche

MaxiIM IM608 PRO

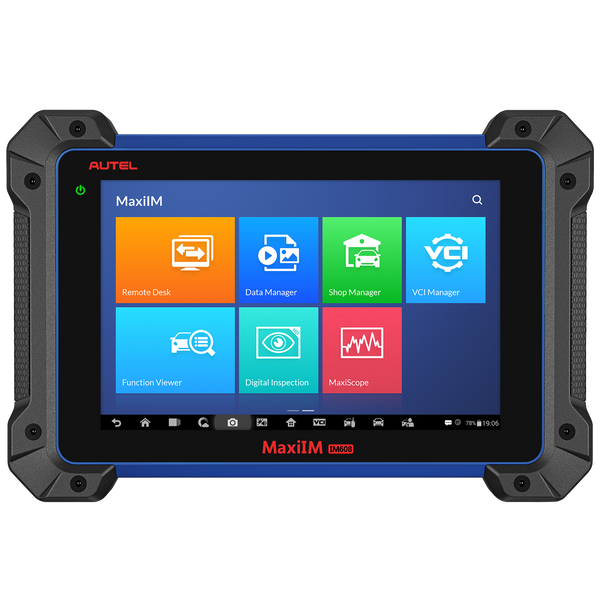

The IM608PROKPA is a comprehensive key and immobilizer programming package of the MaxiIM IM608 Pro 10.1-inch Android touchscreen tablet, XP400Pro key and chip programmer, the wireless JVCI J2534 pass thru programming device and the Key Programming Adapter kit. The IM608 Pro enables key learning directly through the OBDII port for 85 percent of vehicles in North America. The tablet can read the immobilizer pins and password directly from the vehicle and store this information to use later when learning the newly programmed keys to the vehicle. The IM608 Pro is also an advanced diagnostics tablet featuring AutoVIN and AutoSCAN technology to automatically identify the vehicle and perform an all systems scan. The advanced diagnostics functions of the IM608 Pro include the ability to perform active test, coding and adaptations.

Features：

  • Advanced IMMO & Key Programming Bundle
  • 10.1” 1024x768 Android Touchscreen Tablet
  • XP400Pro Key and Chip Programmer
  • JVCI Wireless J2534 Pass Thru Programming Device
  • Includes IMKPA Key Programming Adapter Kit
  • Powerful combination of key programming/all system diagnostics/advanced maintenance services
  • Smart Mode for guided and automated key learning
  • Expert Mode for advanced key learning
  • Read PIN/CS (all key lost) , key generation, key learning, remote learning
  • IMMO ECU reset/adaptation, refresh/coding
  • Transpronder read/write, EEPROM/MCU read/write
  • Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
  • Key learning directly through the OBDII port for 85% of vehicles in North America
  • Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS

Specification

Operating System: Android™ 4.4.4, KitKat
Processor: Samsung Exynos hexa-core Processor
(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64GB On-board Memory
Display: 10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
Power and Battery: 15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply
Input Voltage 12 V (9-24 V)
Power Consumption: 6.5 W
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD): 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Net Weight: NW: 1.42 kg (3.13 lb.)
GW: 8.655 kg (19.08 lb.)
Supported Automotive Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Package List

  • MaxiIM IM608 Pro Tablet
  • XP400 Pro Key Programmer
  • MaxiFlash JVCI
  • IMKPA Key Programmer Adapter Kit
  • Connection Cables
  • USB Adapter
  • Carrying Case
