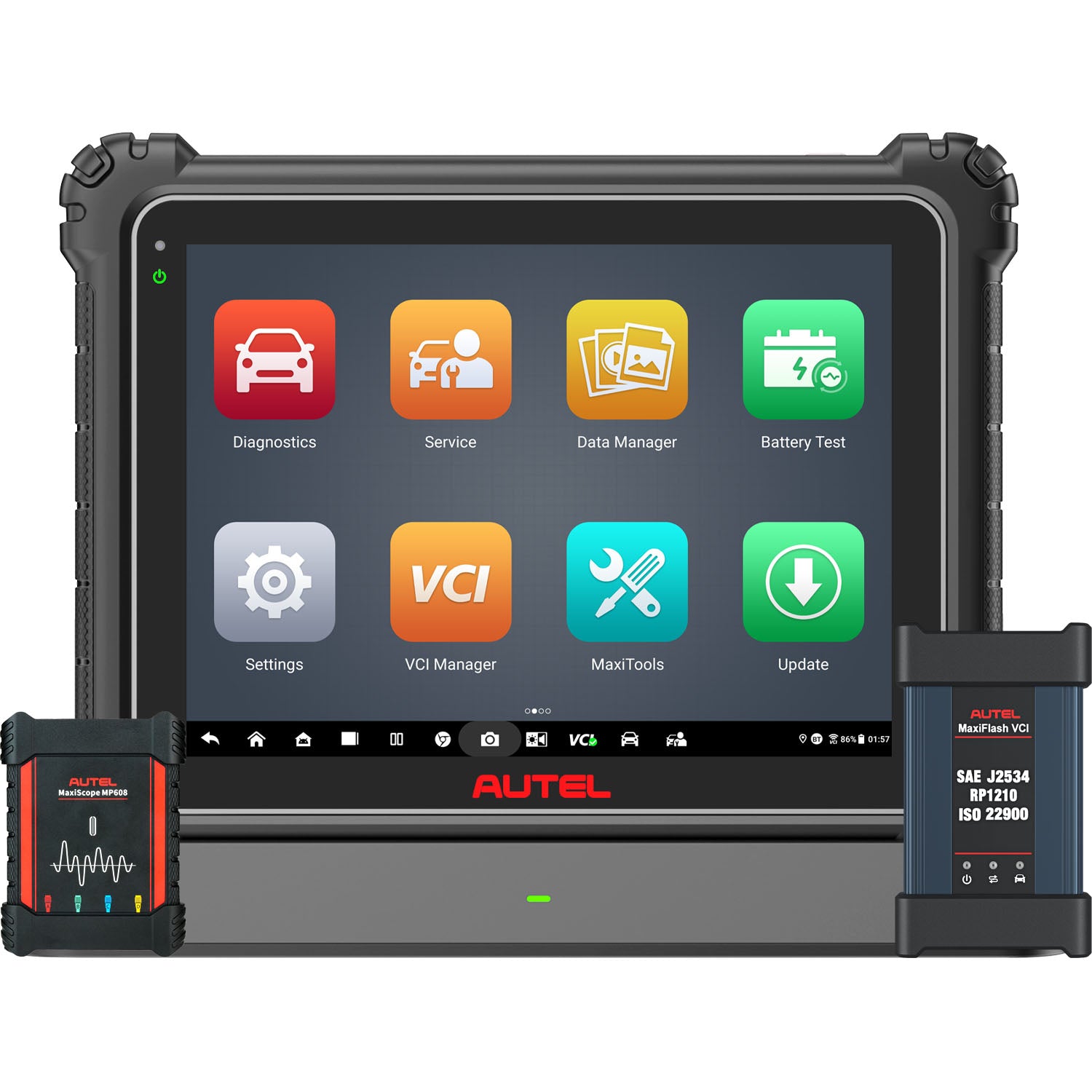

MaxiCOM Ultra Lite/Ultra Lite S
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU programming & Topology Map.
$2,499.00
$3,199.00
/
- More Affordable option - Comes with Two Years Free update, you will also get the same hardware as the Ultra for less than the Ultra. The 8-core processor allows you to diagnose smoothly every time, the 12.7 inch large screen size, 4G RAM, 256G ROM large memory, 18000mAh large battery capacity.
- Topology Mapping 2.0 - The Autel Ultra Lite S features a real topology map, enhancing diagnostic instruction for improved efficiency. Unlike other scanners, the Ultra Lite S incorporates Topology drawn from real circuits, displaying actual correlations among ECUs. This feature significantly aids technicians in troubleshooting issues.
- ECU Coding & Programming - Professional automotive scan tool Autel MaxiSys Ultra Lite enables enhanced ECU programming on specific BMW and Benz. It can finish program/ rewrite/ code/ match new ECU after new module replacement. Besides the ECU Programming, it also allows for advanced ECU Coding (for Benz/BMW/Audi/Porsche/VW) on some specific vehicles to unfold hidden features and activate high-end functions to improve vehicle performance.
- 40+ Maintenance & Reset Service - As the Autel TOP scan tool, MaxiCOM Ultra Lite S comes with 40+ service functions(30+ Commonly Used Reset Functions plus 10+ Advanced Functions for Different Vehicle Models), including Oil Reset, EPB, SAS, DPF Regeneration, Throttle, Suspension, ABS, Injector, etc.
- More Extensive Functions - The Ultra Lite S automotive scanner can collaborate with MV108S/BT506 to conduct digital inspections and cranking and charging tests, enable remote expert assistance, manage Autel cloud reports, facilitate WiFi printing, and more. The Active Test feature enables technicians to promptly determine whether a specific actuator is functioning correctly, aiding in precise issue localization.
- You will get: Two Years Free Update and One Year Free Warranty. With FCA Autoauth Access, you will be able to diagnose FCA Vehicles after 2017 without extra adapter.
Videos for this product
-
Autel MaxiSys Ultra Lite S Unboxing
-
Autel MaxiCOM Ultra Lite Diagnostic & Special Functions Overview
-
Learning more functions of the Autel Ultra on a No Start No COM Case Study
-
Autel Ultra Topology #Autel #MaxiSys #Ultra
Videos for this product
- Comes with Two Years Free Update (Note: Please provide us S/N of your device after you receive it to get two years update)
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Includes Two Years Free Update and One Year Free Warranty
- Compare: Autel MS906 908 909 919 Ultra Series
Specification
| Operating System: | Android 7.0 |
| Processor: | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory: | 4GB RAM 256GB On-board Memory |
| Display: | 12.7 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen |
| Connectivity: | WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB) |
| Camera | Rear: 16 Megapixel, Autofocus with Flashlight Front: 5 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 18000mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 12V/3A Adapter |
| Operating Temp.: | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34") |
| Weight | 2.18kg (4.81 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),NN TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |
Package List
- 1x MaxiCOM Ultra Lite S Main Unit
- 1x MaxiFlash VCI
- 1x Docking Station
- 1x Main Cable V2.0
- 1x USB 2.0 Cable V2
- 1x AC/DC Adapter(12V)
- 1x Auxiliary Power Outlet Adapter
- 2x Spare Fuse 6x30mm
- 1x Clamp Cable
- 1x USB to Ethernet Adapter
- 1x Quick Reference Guide
- 1x Packing List
- 1x Soft Cloth
- 1x Carrying Case 650 x 185 x 430 mm
