MaxiSYS MS909EV
Electric Vehicle Car Diagnostic Tool With MaxiFlash VCI and EVDiag Box
$4,295.00
/
- EV Diagnostics Upgrade Kit - The EV Diagnostics Upgrade Kit includes EVDiag Box and adapters for specific electric vehicles to perform battery pack analysis, it also can work with gasoline vehicles.
- Battery Pack Test & Offline Battery Pack Diagnostics - With EVDiag Box new energy diagnostic box, MaxiSys MS909EV can quickly establish communication with Power battery of new energy vehicle to realize offline battery pack diagnosis. You can check battery pack data, including SOC/SOH, voltage, current, pack voltage delta, temperature and battery pack status. This professional scan tool provides offline battery pack diagnostics to ensure each battery is safely installed in the correct location.
- Topology Module Mapping 2.0 - You can see the structure of communication of each ECU module globally, color-coded topology shows full systems, locate faults more easier, and solve problems quickly.

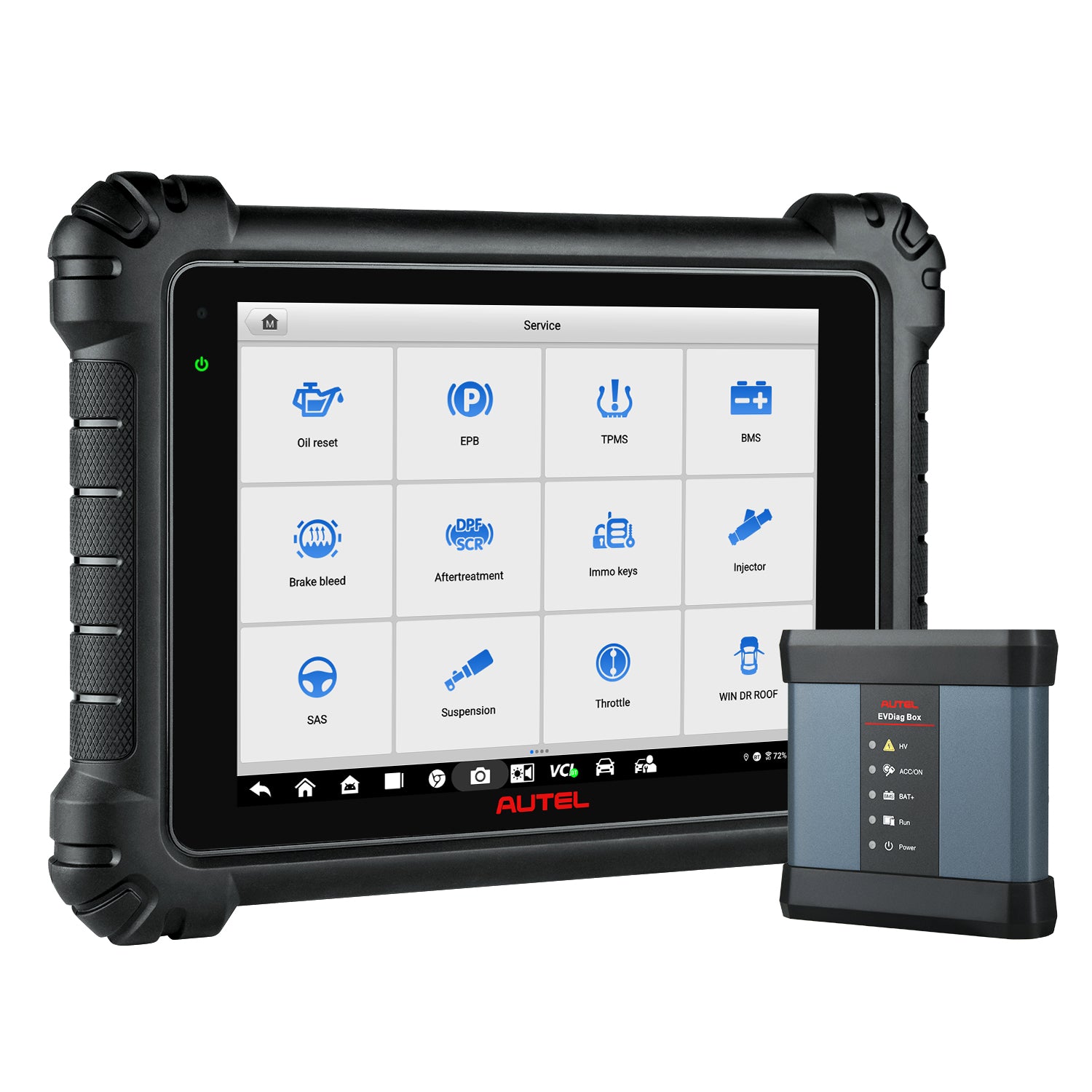

- 40+ Maintenance & Service Functions - Autel MS909EV scan tool with 40+ maintenance and service functions to provides one-stop solution. Including EPB, Oil Reset, DPF, SAS, TPMS, IMMO-Keys, BMS, Injector, Throttle, Suspension, Brake bleed, etc.
- Advanced ECU Coding & Programming - Autel MaxiSys scanner MS909EV is upgraded of MS909/MK908P/Elite/Elite II. Advanced online ECU programming can replace the existing software/ firmware in the ECU, program new ECUs for specif BMW & Benz to fix software-controlled driving performance.
- More Protocols & Newer Vehicle Coverage - Autel MaxiSys MS909EV with the updated J2534 programmer which supports D-PDU, RP1210, CAN FD, J2534 and DoIP protocols. Wider protocol compatibility allows MS909 to work on 99% of vehicles up to 2025 on the market.
- Note: The MS909EV is US Version, and it can only be shipped from the US.
Videos for this product
-
Autel Tools Add Electric Vehicle Capabilities with the EV Diagnostics Upgrade Kit
Videos for this product
Autel MS909EV Features
- Advanced diagnostics for U.S., European and Asian electric, gas and diesel, and hybrid vehicles
- Rapid analysis of EV high-voltage system including ability to read and erase codes and view live data
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Includes One Year Free Update and One Year Free Warranty
Specifications
| Operating System | Android 7.0 |
| Processor | Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen |
| Connectivity | • Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB) |
| Camera (rear) | Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack |
| Power and Battery | 15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C |
| Input Voltage | 12V/3A Adapter |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -20 to 60°C (-4 to 140°F) |
| Dimensions | 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
| Weight | 1.66kg (3.66lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |

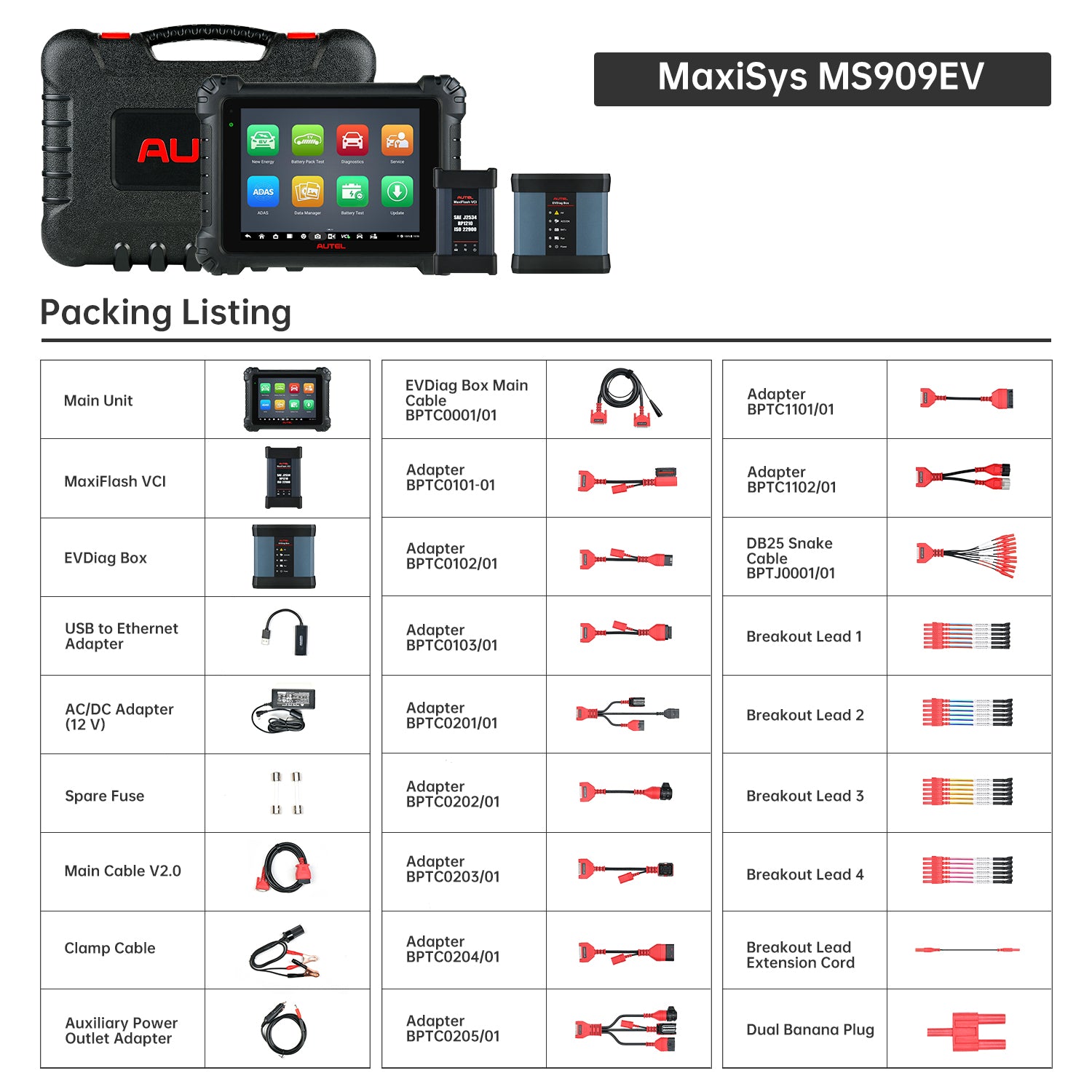

Package List
- 1x MS909 Main Unit
- 1x EV Diagnostic Upgrade Kit
- 1x MaxiFlash VCI
- 1x Main Cable V2.0
- 1x USB 2.0 Cable V2
- 1x AC/DC Adapter(12V)
- 1x Cigarette Lighter
- 2x Light Fuse 6x30mm
- 1x Clipper Cable
- 1x Quick Reference Guide
- 1x Packing List
- 1x Soft Cloth
- 1x Carrying Case 504 x 133 x 360 mm
