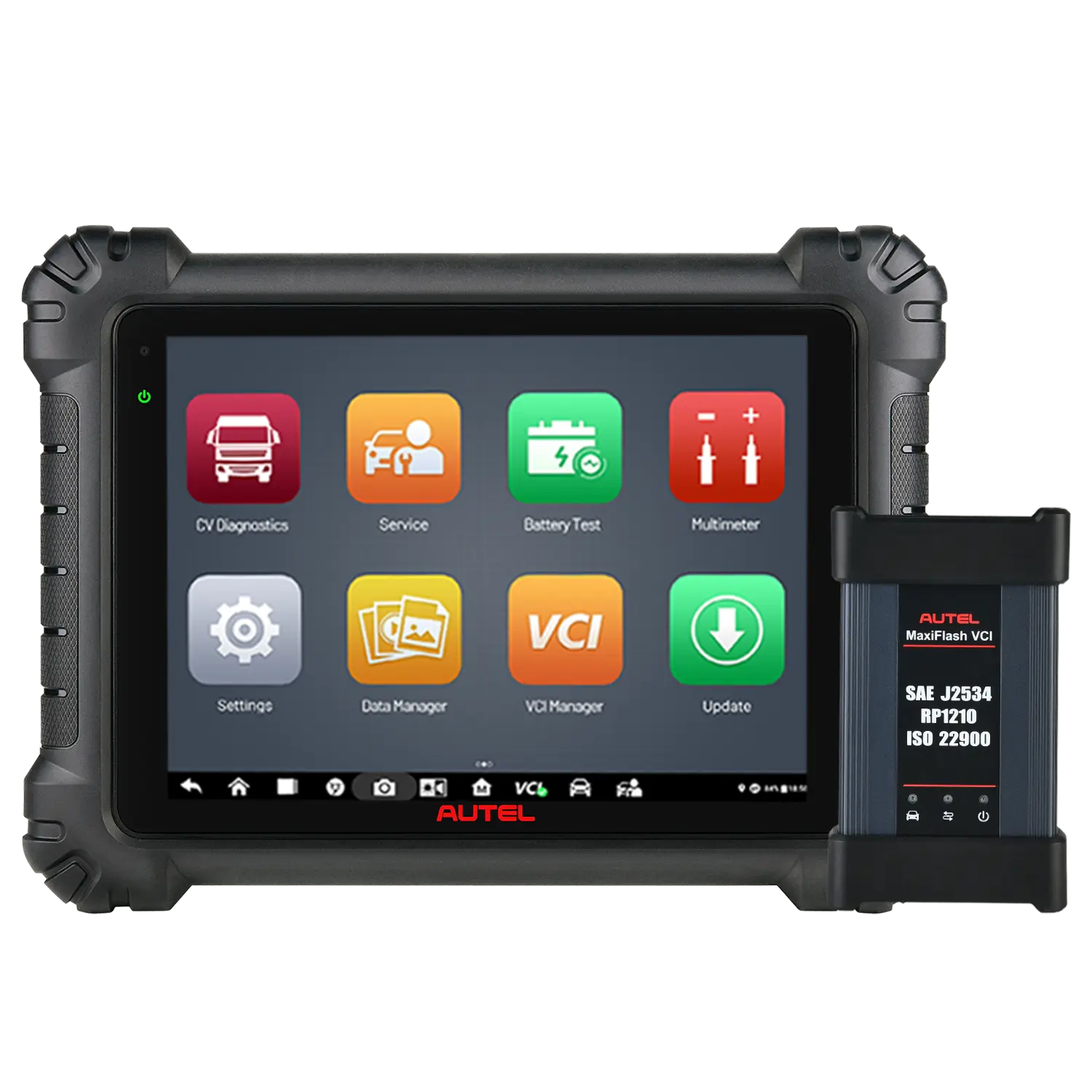

MaxiSYS MS909CV

Top scanner for heavy duty, equiped with topology mapping

$5,450.00

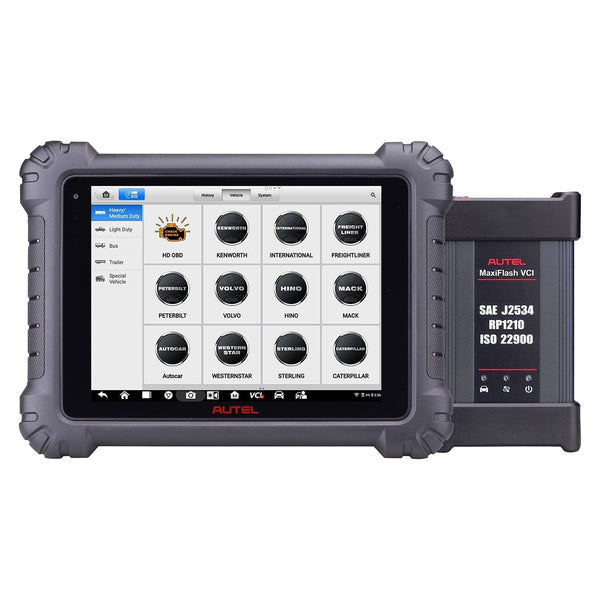

  • Autel TOP Of The Line Factory CV Scan Tool -Autel MaxiSYS MS909CV is an advanced commercial vehicle diagnostic tablet compatible with 80+ models of light, medium and heavy-duty vehicles.
  • Top Hardware -Backed by 2.2GHz Quad-core A73 + 1.8GHz Quad-core A53, 4GB RAM & 128GB On-board Memory, 15000mAh super large battery.

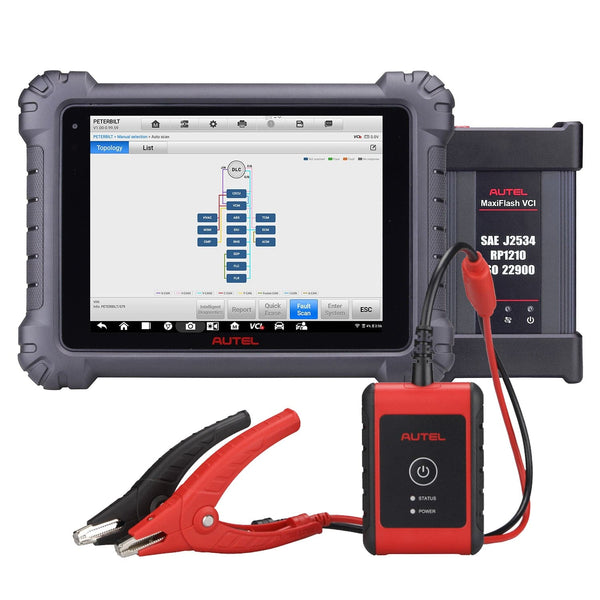

  • Topology Mapping -Specially designed for the OEM diagnostic tools, shows all available control units of the test vehicle in different colors, helping users get to know the number of systems, number of each system DTC and relation of the systems at just a glance, fast your troubleshooting for ECU circuit faults.
  • ECU Coding -With the J2534 programmer, Autel Scanner MS909CV is allowed for advanced ECU coding function, it can update the vehicle's on-board system to the latest, write adaptive data for certain components after repairs or replacements.
  • Bi-Directional Control(Active Test) -Autel commercial vehicle diagnostic scan tool MS909CV has bi-directional control capability over various car systems and components and is able to command the ECU module or component to perform specific tests to pinpoint faults, such as rolling up / down a window, etc.

Videos for this product

    Videos for this product

  • NEW Autel MaxiSys CV Diagnostic Tool for Trucks
  • See the Autel Heavy Duty Lineup of Diagnostic Tools at AAPEX 2021
  • Autel Maxisys MS908CV Overview Heavy Duty Diagnostic Scan Tool With J-2534 ECU Programming

  • Upgraded Octa-Core processor and 128GB storage and Android 10.0 Operating System with 9.7” Touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation
  • Advanced Diagnostics with Module Topology on Select Vehicles and Enhanced AutoSCAN / VINScan
  • ADAS Calibration with new Class 6-8 Dynamic Calibration, Supporting Class 3-5 Complete ADAS Coverage. The Class 6-8 Static Calibration (coming soon)
  • Support heavy Duty Battery Test & Health Report

Specification

Operating System Android 7.0
Processor

Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

Memory 4GB RAM & 128GB On-board Memory
Display 9.7-inchTFT-LCD with 1536 x 2048 resolution & capacitive touch screen
Connectivity Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)
BT V5.0 + BR/EDR
GPS
USB 2.0 (2 USB TYPE-A ports and a Mini USB port)
HDMI 2.0
SD Card (Support up to 256GB)
Camera Rear: 16 Megapixel, Autofocus with Flashlight
Front: 16 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone
Dual Speakers
3-Band 3.5 mm stereo/standard headset jac
Power and Battery 15000mAH 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/1.3A Adapter
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 60°C (-4 to 140°F)
Dimensions(W x H x D) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight 1.66kg (3.66 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141,   ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda   Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART   with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708,   SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Package List

autel maxisys ms909cv package list
