MaxiSYS MS908CV II
A Wireless, Heavy Duty Diagnostic Scan Tool - Complete Commercial Vehicle Diagnostics
$3,395.00
/
- Complete Commercial Vehicle Diagnostics - Autel MS908CV II CV 2024 diagnostic tool can perform all-over diagnostics on 150+ brands of commercial vehicles, light duty, semi-truck, heavy duty trucks (from class 1 to class 9), buses and other special machinery. Besides the diagnostics, it features advanced ECU coding, bi-directional control and 23 adaptations and 25+ service functions including ABS brake bleed to help you fix any related issues. It also performs AutoSCAN and AutoVIN (2006+), and generates printable diagnostic reports.
- 25 Service + 23 Adaptation Functions - Autel MS908CV II HD scanner can perform 25+ services like Oil Reset, Injector Coding, DPF, ABS bleeding, SAS, Throttle, Cylinder, Trans Adaptation etc, and 23 adaptation functions such as Boost Calibration, Rack Sensor Calibration, Timing Calibration, Monitor Throttle Position Sensor, Fuel Pressure Adaptation and etc. And those functions work perfectly for the 99% of commercial vehicles, for instance Freightliner, Kenworth, Peterbilt, International, Volvo, etc.
- ECU Coding & J2534 VCI Box - Same level as Maxisys Elite II Pro, this heavy duty truck scanner MS908CV II has the professional-grade ECU coding to help rematch the module replacement, and fix complex ECU-controlled problems for heavy machinery. The included J2534 pass-thus device is fully compatible with both SAE J2534-1 & 2, and also serves as wireless BT communicating box for up to 210ft. (70m) diagnostic range.
- Bi-Directional Control(Active Test) - Autel MS908CV II commercial vehicle diagnostic scan tool has full bi-directional control capability over various CV systems/ components, and is able to command the components to perform specific tests to pinpoint faults in the quickest way, It can conduct tests such as EVAP Test, Cylinder Test, Cylinder Compression Test, E-G-R Test, Window/ Door/ Roof Test, Fuel pump on and off, Cycling the a/c clutch on and off and more.
- Note: The MS908CV II is US Version, and it can only be used in the US.
Videos for this product
-
Autel Heavy Duty Savings On Commercial Vehicle Diagnostics
-
NEW Autel MaxiSys CV Diagnostic Tool for Trucks
-
See the Autel Heavy Duty Lineup of Diagnostic Tools at AAPEX 2021
-
Autel Maxisys MS908CV Overview Heavy Duty Diagnostic Scan Tool With J-2534 ECU Programming
Videos for this product
MaxiSYS MS908CV II - Complete Commercial Vehicle Diagnostics

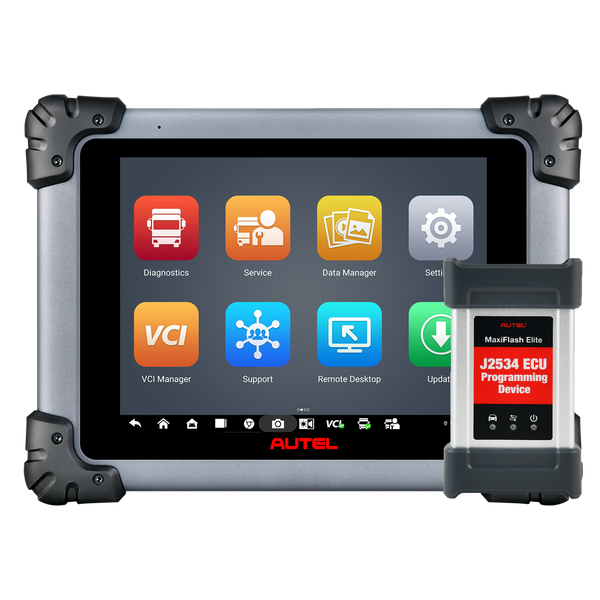

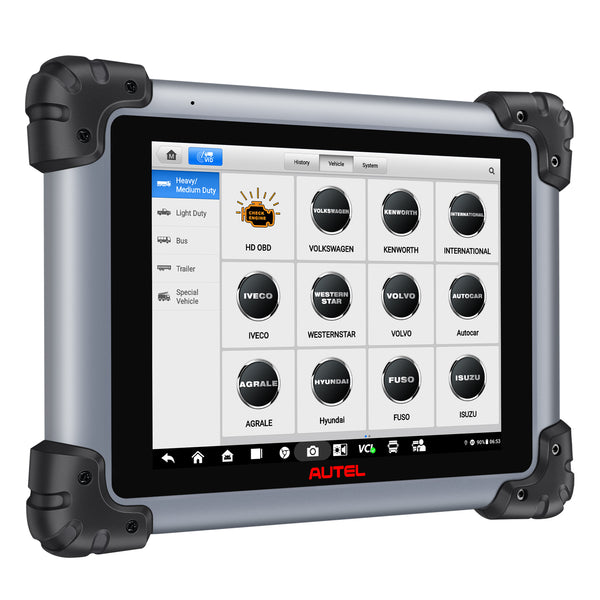

The MaxiSYS MS908CV II is a 9.7″ wireless touchscreen tablet with advanced diagnostics coverage for light-, medium-, and heavy-duty vehicles. All Systems fault detection via Auto Scan. Read and erase codes. View and graph live data. Perform Bi-directional control Active Tests and Special Functions. Expert Mode to enable technicians to access the system directly. Extensive service menu featuring over 40 service functions, including Forced DPF Regen, Oil Light and Maintenance Service Light resets, and Brake Bleed. Tablet features Android 10 OS, an Octa-Core processor and 128 GB of storage memory. Wireless printing. Includes one year of free software updates and is covered by a one-year limited warranty.
Autel Maxisys MS908CV II Features
- 9.7" wireless touchscreen Heavy Duty Vehicle Diagnostics and Service Tablet
- Performs advanced diagnostics on Class1-Class9 Heavy duty vehicles
- Read and Erase codes, view live data, perform bi-directional active tests
- Expert Mode for direct access to OE-specific system components, including engine, transmission, and braking systems
- Extensive service and maintenance functions menu including forced DPF regen, EPB, and OLs
- Perform injector cutout tests, injector coding

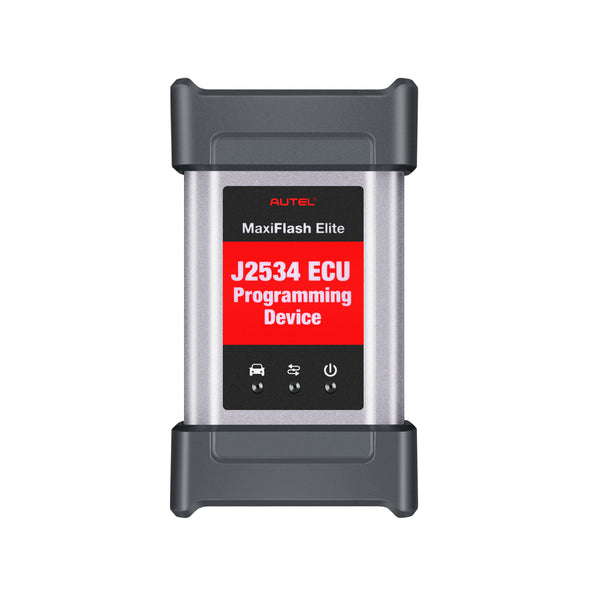

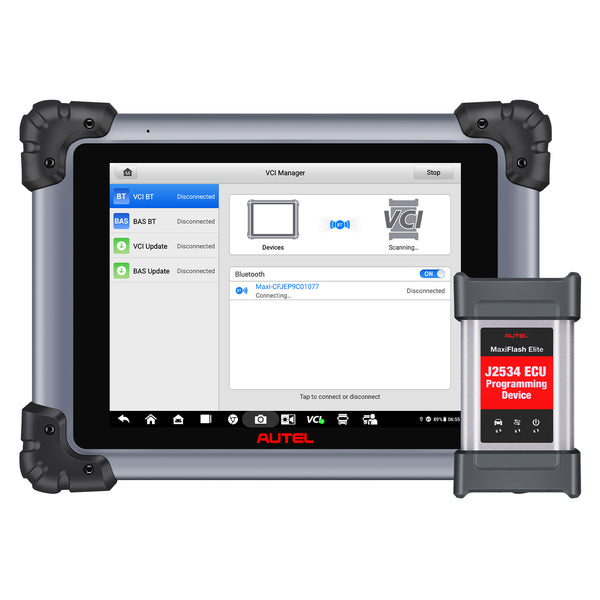

- Equipped with MaxiFlash wireless bluetooth VCI/J2534
- AutoScan of all available modules
- Additional purchase of the VCI200 is required to access the latest protocols for light duty vehicles 2018 and newer
- Includes One Year Free Update and One Year Free Warranty
Autel MS908CV II Specifications
| Operating System | Android 10 |
| Processor | Octa-core processor (2.2 GHz quad-core A73 + 1.8 GHz quad-core A53) |
| Memory | 4 GB RAM & 128 GB on-board memory |
| Display | 9.7 inch LED capacitive touchscreen with 2048 x 1536 resolution |
| Connectivity | · WiFi (802.11 a/b/g/n/ac) |
| · USB: 2.0 | |
| · Bluetooth v5.0 + EDR | |
| · SD Card (Support up to 64 GB) | |
| · HDMI | |
| Camera (rear) | 16.0 megapixels; auto focus with flashlight |
| Sensors | Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output | · Microphone |
| · Dual Speakers | |
| · 3-Band 3.5 mm stereo/standard headset jack | |
| Power and Battery | · 11000 mAh 3.7 V lithium-polymer battery · Charging via 12 V AC/DC power supply with a temperature between 0 °C and 45 °C |
| Input Voltage | 12 V (9-24 V) |
| Power Consumption | 6.5 W |
| Operating Temp | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage Temp | -20 °C to 60 °C (-4 °F to 140 °F) |

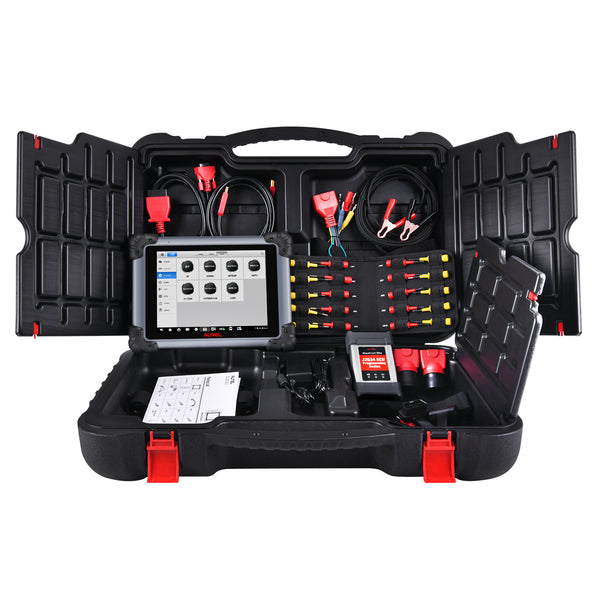

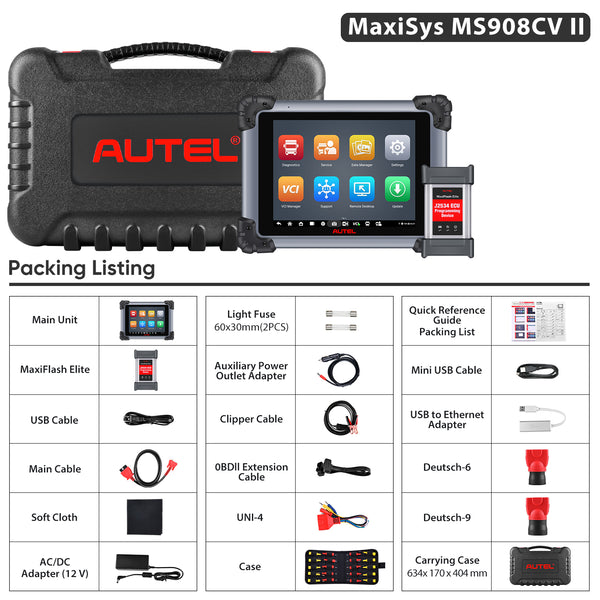

MS908CV II Package List
