MaxiCOM Ultra Lite

Top OBD2 Scanner, Same multi-platform diagnostics solution as MaxiSYS Ultra but cost less .

$2,859.00 $3,199.00
  • More Affordable option - Get the same hardware as the Ultra for less than the Ultra. The 8-core processor allows you to diagnose smoothly every time, the 12.9 inch large screen size, 4G RAM, 256G ROM large memory, 18000mAh large battery capacity.
  • Topology Mapping 2.0 - Dynamic topology module mapping 2.0 sorts out the relationship between various systems at a glance.
  • 40+ Maintenance & Reset Service - As the Autel TOP scan tool, MaxiCOM Ultra Lite comes with 40+ service functions(30+ Commonly Used Reset Functions plus 10+ Advanced Functions for Different Vehicle Models).
  • Auto Scan 2.0 - Auto Scan 2.0 maximizes scanning speed and leap into second-scanning level, 3X faster: GM < 8s, BMW Ford VAG Chrysler < 10s, etc.
  • ECU Coding & Programming - Professional automotive scan tool Autel MaxiSys Ultra Lite enables enhanced ECU programming on specific BMW and Benz. It can finish program/ rewrite/ code/ match new ECU after new module replacement. Besides the ECU Programming, it also allows for advanced ECU Coding on most of regular cars to unfold hidden features and activate high-end functions to improve vehicle performance.

Item: Ultra Lite S

Videos for this product

    Videos for this product

  • Autel MaxiCOM Ultra Lite Diagnostic & Special Functions Overview
  • Autel MaxiSys Ultra Lite Unboxing
  • Learning more functions of the Autel Ultra on a No Start No COM Case Study

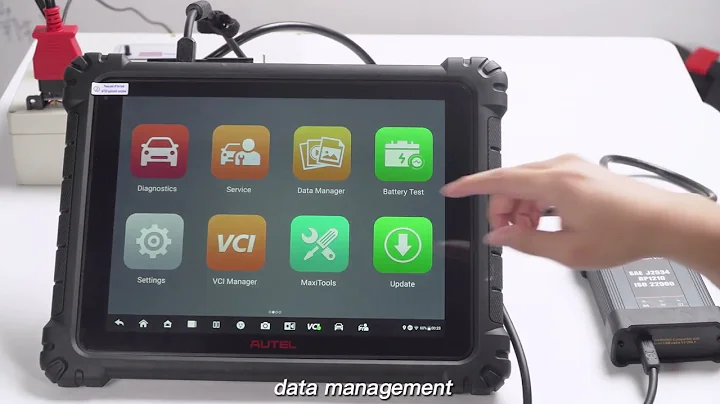

  • Autel MaxiSYS Ultra - Hardware Introduction
  • Autel Ultra Topology #Autel #MaxiSys #Ultra
  • Comes with Two Years Free Update
  • Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
  • Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
  • Automatic system and software updates with real-time push message notifications via internet
  • Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
  • One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes

Specification

Operating System: Android 7.0
Processor: Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory: 4GB RAM 256GB On-board Memory
Display: 12.9 inch TFT-LCD with 2732 x 2048 resolution capacitive touch screen
Connectivity: WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO),BT v.2.1 + EDR,GPS
USB 2.0 (Two USB HOST Type A, one USB mini device),HDMI 2.0,SD Card (Support up to 256GB)
Camera Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5 Megapixel
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone,Dual Speakers,3-Band 3.5 mm stereo/standard headset jack
Power and Battery 18000mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage 12V/3A Adapter
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
Weight 2.18kg (4.81 lb.)
Protocols DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20),NN TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock , BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

Package List

  • 1x MaxiCOM Ultra Lite S Main Unit
  • 1x MaxiFlash VCI
  • 1x Docking Station
  • 1x Main Cable V2.0
  • 1x USB 2.0 Cable V2
  • 1x AC/DC Adapter(12V)
  • 1x Auxiliary Power Outlet Adapter
  • 2x Spare Fuse 6x30mm
  • 1x Clamp Cable
  • 1x USB to Ethernet Adapter
  • 1x Quick Reference Guide
  • 1x Packing List
  • 1x Soft Cloth
  • 1x Carrying Case 650 x 185 x 430 mm
