Winter Sale

MaxiSYS MS909

$3,795.00

Topology Module Mapping - You can see the structure of communication of each ECU module globally, color-coded topology shows full systems, locate faults more easier, and solve problems quickly.

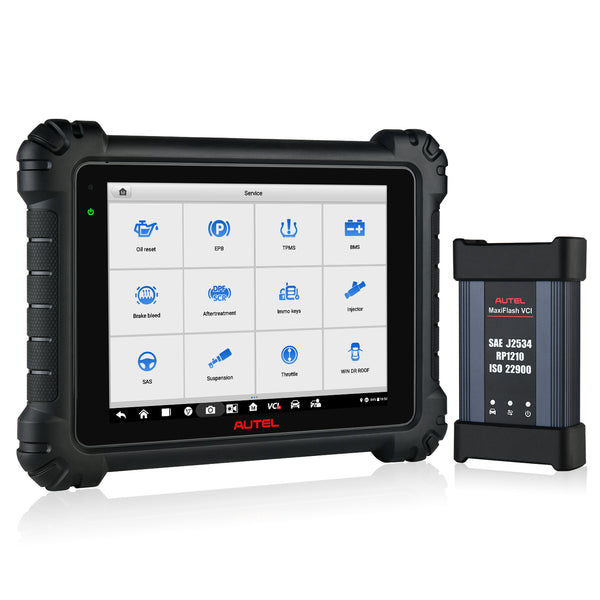

36+ Maintenance & Service Functions - Autel MS909 scan tool with 36+ maintenance and service functions to provides one-stop solution. Including EPB, Oil Reset, DPF, SAS, TPMS, IMMO-Keys, BMS, Injector, Throttle, Suspension, Brake bleed, etc.
Bi-Directional Control - With bi-directional control ability, to control various vehicle parts and components like fuel pumps, radiator fan, throttle, mirrors, interior & exterior lights, sound horn, wipers, headlamps, windows, and etc to test its functionality.
Advanced ECU Coding & Programming - Autel MaxiSys scanner MS909 is upgraded of MK908P/Elite/Elite 2. Advanced online ECU programming can replace the existing software/ firmware in the ECU, program new ECUs for specif BMW & Benz to fix software-controlled driving performance.

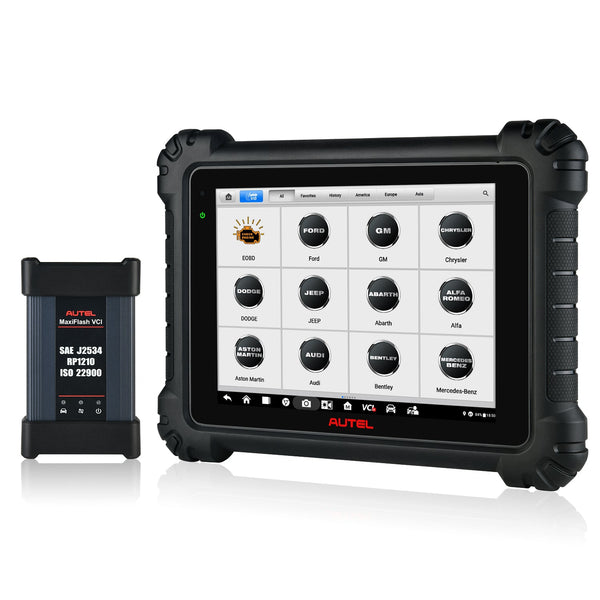

More Protocols & Newer Vehicle Coverage - Autel MaxiSys MS909 with the updated J2534 programmer which supports D-PDU, RP1210, CAN FD, J2534 and DoIP protocols. Wider protocol compatibility allows MS909 to work on 99% of vehicles up to 2024 on the market.

Product variants

Autel MS909 Features

Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
Automatic system and software updates with real-time push message notifications via internet
Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Includes One Year Free Update and One Year Free Warranty
Compare: Autel MS906 908 909 919 Ultra Series

Operating System	Android 7.0
Processor	Samsung Exynos8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
Memory	4GB RAM & 128GB On-board Memory
Display	9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
Connectivity	• Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)
Camera (rear)	Rear: 16 Megapixel, Autofocus with Flashlight Front: 5.0 Megapixel
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	15000mAh 3.8V lithium-polymer battery Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V/3A Adapter
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions	304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
Weight	1.66kg (3.66lb.)
Protocols	DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
