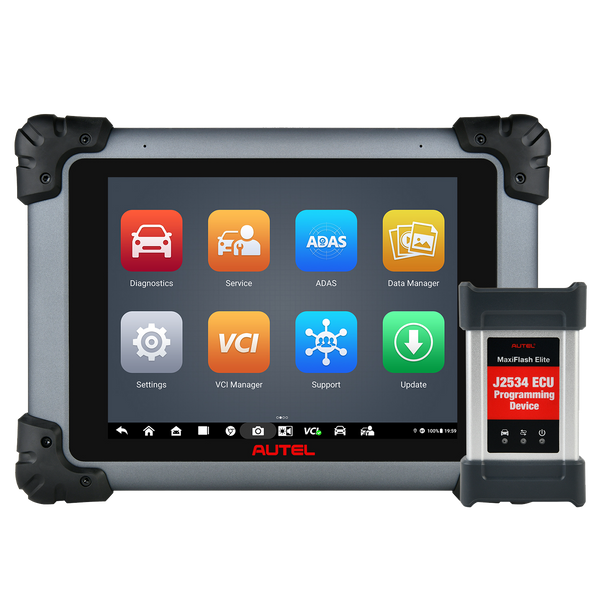

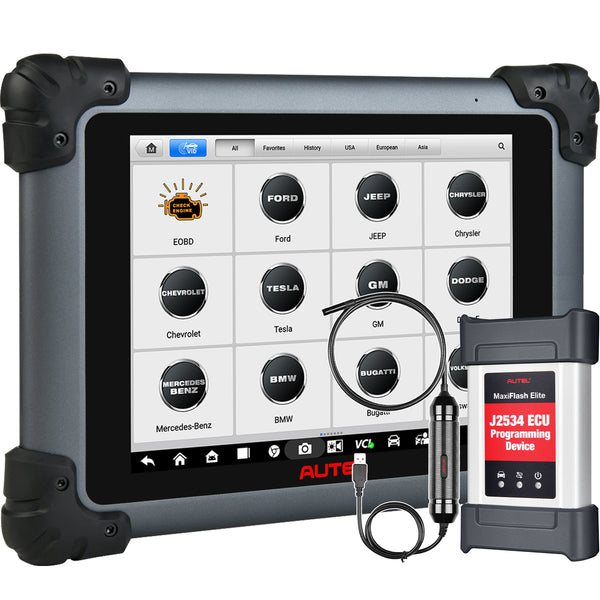

MaxiSys MS908S Pro II

$2,169.00

ECU Programming- Autel MaxiSys MS908S Pro II with J2534 has the same ECU programming & Coding capabilities as Autel Ultra, with which can replace existing software / firmware in ECUs to troubleshoot vehicle drivability, fuel efficiency, power loss and durability issues.

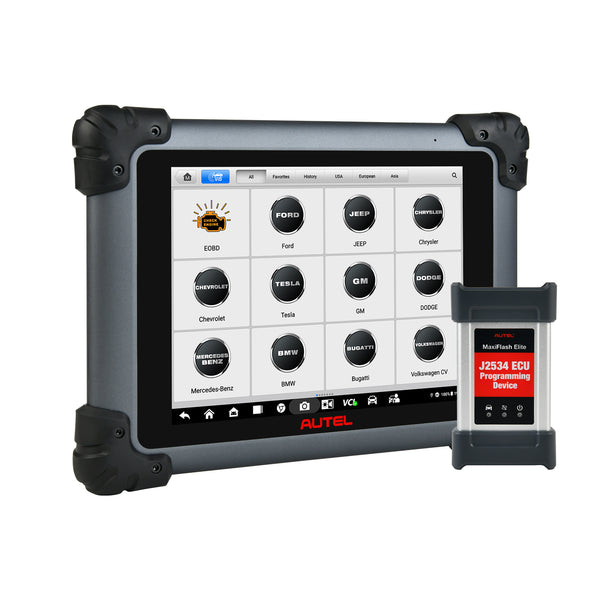

OE-Level All Systems Diagnostic - MS908S Pro II scan tool can access all available vehicle modules on 80+ European, American, Asian car makes up to 10000+vehicles, to read codes, clear codes, view live data, etc.

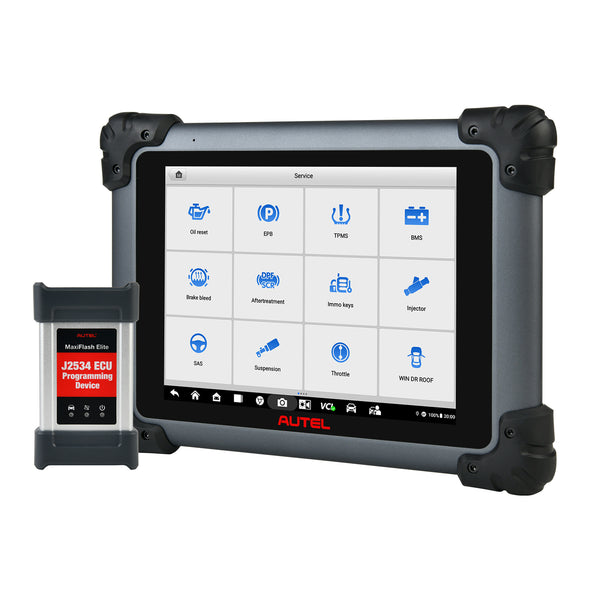

36+ Maintenance Services - Autel MS908S Pro II car diagnostic scanner integrates 36+ hot and special functions, covering most of common maintenance needs, such as Oil, EPB, BMS, DPF, SAS, ABS brake bleed, IMMO, etc.
Bi-Directional Control - With Bidirectional Control, it can do active tests that send commands to the ECU to activate the actuators and monitor them, like ABS, window, door, solenoids, valves, wipers, etc, quickly finding out bad parts and pinpoint faulty issues.
Guided Function For VAG - Guided functions provides OE-level guidance and allows you just follow the screen instructions step by step to complete complex services operation.
FCA AutoAuth Access- Autel original MS908S Pro II scanner supports "AutoAuth" gateway access on 2018 and newer Fiat Chrysler vehicles, such as Chrysler, Dodge, Jeep, etc.

Product variants

Qualcomm 660 Octa-core processor (2.2GHz Quad-core A73 + 1.8 GHz Quad-core A53)

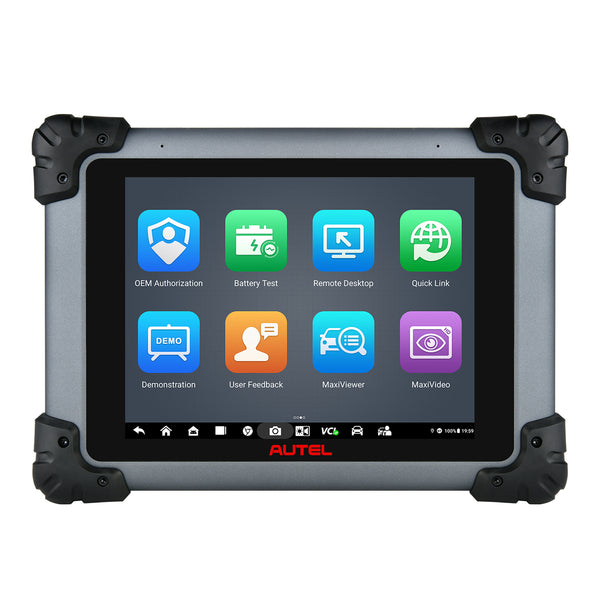

9.7-inch touchscreen Wi-Fi tablet

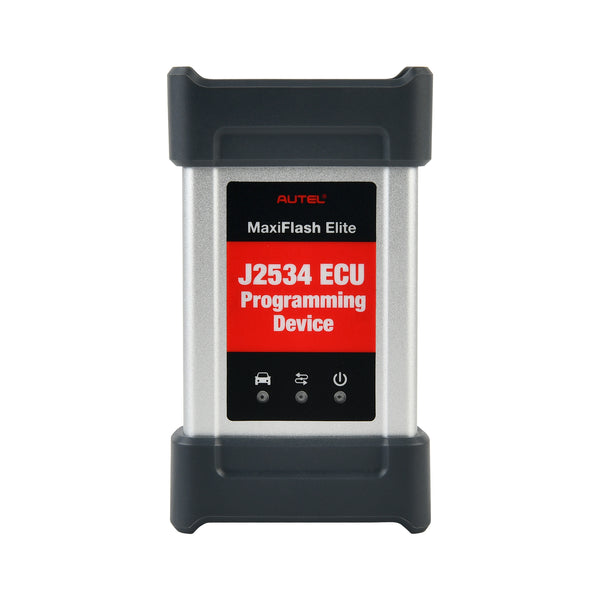

Bluetooth-enabled VCI/J2534 pass thru programming device with wireless range up to 70 meters
Rechargeable lithium battery delivers 7.5 hours of continuous performance on a single charge
Comprehensive Service Menu for direct access to most commonly performed service tasks
128G storage memory for maintaining of all needed brand diagnostics software
Android 10.0 operating system
Extensive vehicle coverage •Comprehensive Service Menu for direct access to most commonly performed service tasks
Read/Erase Codes on all available systems
Perform bi-directional active tests
Perform adaptations and coding
View freeze frame data and view and graph systems live data
Includes One Year Free Update and One Year Free Warranty
Compare: Autel MS906 908 909 919 Ultra Series

Specification

Operating System	Android 10.0
Processor	Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory	4GB RAM &128GB On-board Memory
Display	9.7 inch LED capacitive touch screen with 2048x1536 resolution
Connectivity	Wi-Fi (802.11 a/b/g/n/ac) USB: 2.0 BT V5.0 + BR/EDR SD Card (Support up to 64GB) HDMI
Camera (rear)	16 Megapixel, AF with Flashlight
Sensors	Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output	Microphone Dual Speakers 3-Band 3.5 mm stereo/standard headset jack
Power and Battery	11000 mAh 3.7 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12 V (9-24 V)
Power Consumption	6.5 W
Operating Temp.	0 to 50°C (32 to 122°F)
Storage Temp.	-20 to 60°C (-4 to 140°F)
Dimensions (WxHxD)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.42 kg (3.13 lb.) GW: 8.052 kg (17.75 lb.)
