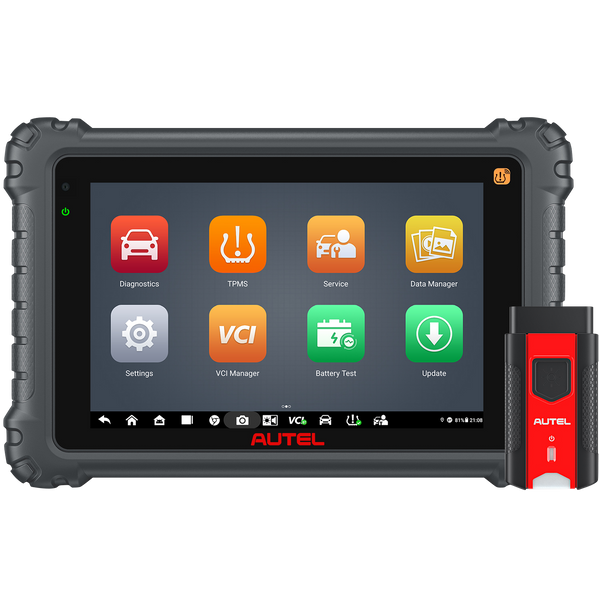

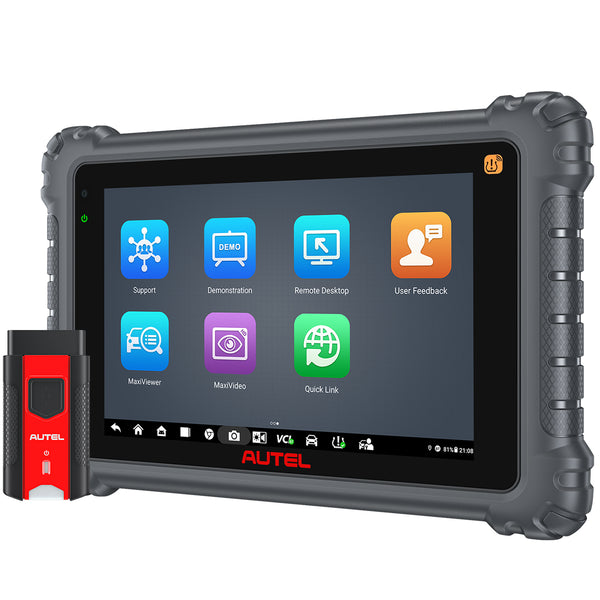

Autel Maxicom MK906 Pro-TS

OBD2 ECU Coding/Scan VIN Diagnostic Scanner And TPMS Relearn/Programming Tool

$1,279.00 $1,595.00

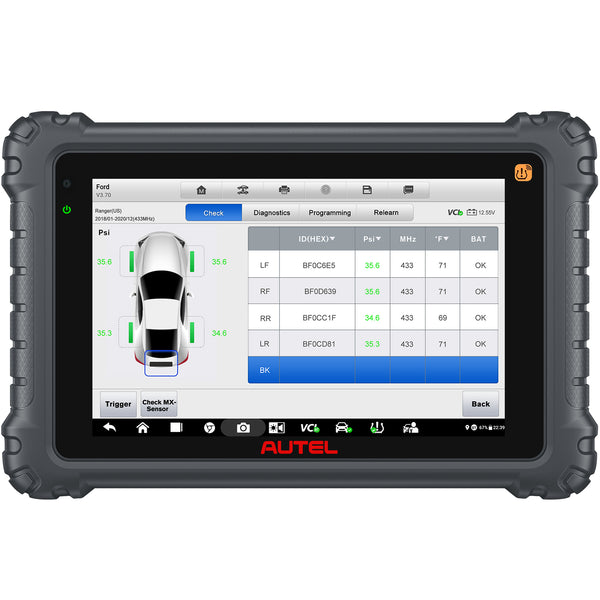

  • Complete TPMS Function: Autel MK906 PRO-TS 2024 integrated TPMS antenna module for performing full TPMS service: activate/ relearn 99% of all-known TPMS sensors, program MX-sensors, turn off TPMS light, retrieves sensors’ OEM part No. in seconds and provides with 3000+ built-in relearn procedures.
  • Distinguished Capability To Perform ECU Coding: the Autel MK906 PRO-TS professional diagnostic scanner empowers you to establish full data links with electronic control units via VCI for vehicle diagnosis, repairs, or coding. It also features online coding and personalization for high-end vehicles.
  • Beginner-Friendly Guided Function: The Autel MK906 PRO-TS provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operations. Best tool for beginners and DIY mechanics. Compatible with VW, Audi, Skoda, Seat, Bently, etc.
  • Practical Bidirectional Control Function: Featuring bi-directional control, this car bidirectional scanner Autel MK906 PRO-TS can output commands to ECUs and control/monitor the operation of PDM, SMF, RSM, TCU, and other on-board modules to fast & precisely locate car issues.
  • Refresh Hidden Features: Autel MK906 PRO-TS can help you activate the hidden features already programmed to the car computer to get high-end functions. Such as installing the auto start-stop system, customizing the injector light, adjust the auto door look at a particular speed. Compatible with VW, Audi, Skoda, etc.
  • FCA AutoAuth: Autel scan tool MK906 PRO-TS supports FCA AutoAuth, allowing you to clear codes and perform active tests & special functions for Chrysler FCA models after 2018 without special adapters.

Videos for this product

    Videos for this product

  • Autel MaxiCOM MK906 Pro-TS Diagnostic Scan Tool Unboxing

Specially designed for tire-repairing shops and technicians, the Autel MaxiCOM MK906 Pro-TS makes the ideal combination of high-end diagnostic scanner and a TPMS programming tool. As an upgrade of the MS906TS/MS906 Pro-TS, the MK906Pro-TS comes with a leap forward in equipment, including the most up-to-date processor Qualcomm 660 with a more current operation system(Android 10.0), enhanced wireless VCI (V200), dual memory(4GB RAM&128GB ROM), clearer resolution(1920x1200),16MP dual camera, etc, making it work faster and compatible with more vehicles, integrating rich functions: professional TPMS functions, ECU Coding, Active Test, All Systems Diagnostic, 36+ services, 10+ high-end features, FCA AutoAuth gateway access, etc.

Hardware:

  • 8-inch, 1920 x 1200 high-resolution touchscreen tablet, Qualcomm 660 Octa-core processor with 128 GB storage and running Android 10.0 operating system.
  • Long-lasting 11,600 mAh rechargeable battery, 16 MP front camera and 16 MP rear camera.
  • MaxiVCI V200 wireless Bluetooth vehicle communication interface supporting the latest communication protocols

Software:

  • Comprehensive diagnostics on 1996 and newer U.S., Asian and European vehicles
  • AutoScan: Scan all available systems
  • Read/Erase Codes, View Freeze Frame and Live Data
  • Perform Active Tests (bi-directional controls), Coding and Adaptations
  • AutoVIN/Scan VIN for rapid vehicle identification

New Software Features:

  • Battery analyzation capability*
  • Cloud-based Reports and Data Management

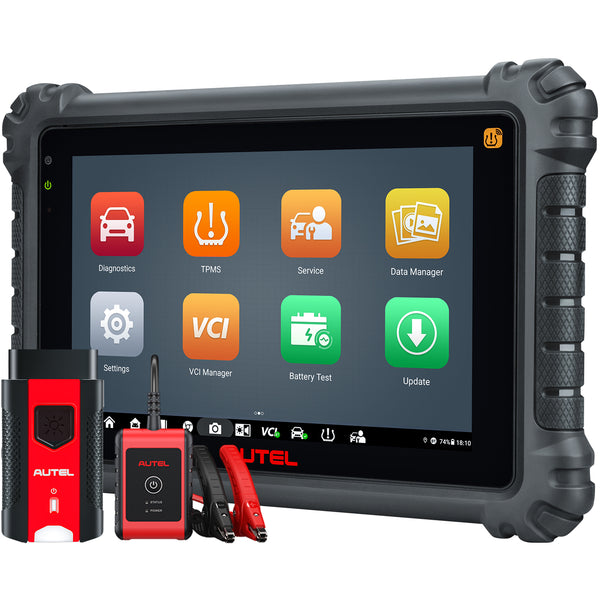

  • With the additional purchase of the MaxiBAS BT506 battery and electrical system tester.

MK906 Pro-TS Specifications

Operating System: Android 10.0
Pro-TScessor: Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)
Memory: 4/128GB
Display: 8.0" LED capacitive touch screen with 1920x1200 resolution
Connectivity: • Wi-Fi (802.11 b/g/n)USB: 2.0, Mini USB 2.0 Wireless BT V2.1+EDR Class1, HDMI 1.4a SD Card (support up to 32 GB)
Camera (rear):

Front: 16 Megapixel

Rear: 16 Megapixel

Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output: • Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack
Power and Battery: 11 600 mAh 3.7 V lithium-polymer battery
Charging via 12 V AC/DC power supply
Input Voltage: 12 V (9-35 V)
Power Consumption: 5 W
Operating Temp.: -10 to 55°C (14 to 131°F)
Storage Temp.: -20 to 70°C (-4 to 158°F)
Dimensions (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight NW: 1.05 kg (2.3lb.)

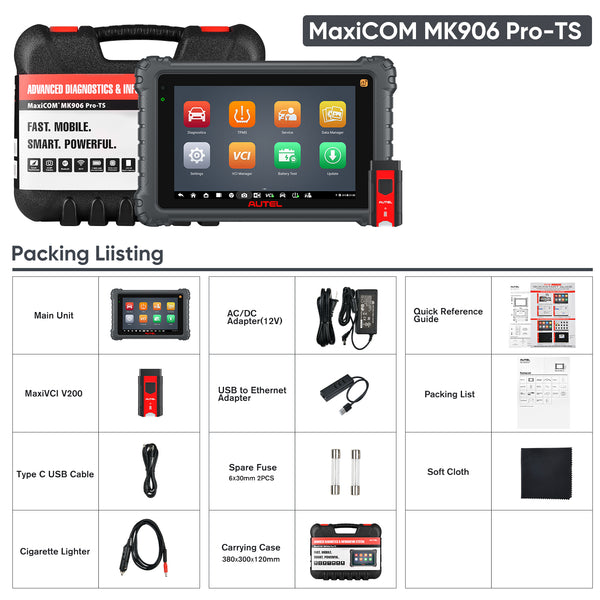

Package List:

  • 1x MaxiCOM MK906 Pro-TS main unit
  • 1x MaxiVCI V200
  • 1x AC/DC Adapter (12V)
  • 1x Type C USB Cable
  • 1x Cigarette Lighter Adapter
  • 2x Spare Fuse(6*30mm)
  • 1x USB to Ethernet Adapter
  • 1x Soft Cloth
  • 1x Packing List
  • 1x Carrying Case
  • 1x Quick Reference Guide
