MaxiVideo MV480

  • The Autel MaxiVideo MV480 is the next generation of digital video scopes, perfect for inspecting hard-to-reach areas. Its semi-rigid flexible cable and 10-level adjustable LED light make it an ideal tool for professionals. Equipped with dual front and side cameras boasting a 1920x1080 high resolution, this device also features a 4.1" 1200x720 full-color LCD display that can be reversed horizontally or vertically on-screen.
  • Audio Annotation (MV480 Only) for Detailed Review: Audio annotation recording can be utilized alongside video for a comprehensive review. Enable audio recording by adjusting the microphone settings in the recording options.
  • The MV480 Inspection Camera comes equipped with high-resolution images and video capabilities (1920 X 1080), enabling you to capture crisp and clear visuals. Its one-button design makes it easy to operate with just one hand, allowing you to take photos and record videos with ease. With an 8.5mm camera probe and a built-in 2600mAh battery, this device can provide up to 4 hours of continuous use.
  • The camera/video mode of the MV480 Inspection Camera displays the zoom magnification rate and allows you to quickly and continuously adjust the zoom by pressing and holding the buttons. A zoom indicator icon will appear on the screen as the zoom is adjusted. With a wider 70° field of view and a closest inspection range of 20-30mm, this device provides a professional inspection experience.

Videos for this product

Videos for this product

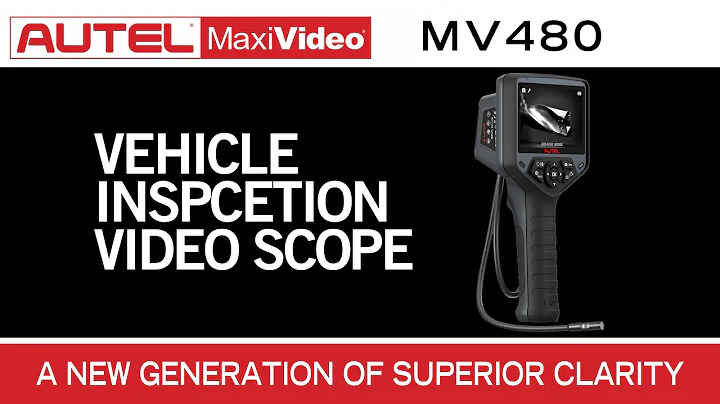

  • Autel MaxiVideo MV480 - Introduction


  • High resolution images and videos (1920 x 1080)
  • Dual front and side cameras for wider viewing angle
  • 4.1-inch full color LCD display (1200 x 720)
  • 1-button quick image capture and video recording
  • 70-degree field of view for expanded viewing angle
  • Adds audio annotation for detailed review
  • Micro HDMI-output enables streaming to larger monitors
  • Freeze-frame camera stills or video recording
  • On-screen horizontal/vertical reverse
  • Records and plays back images and video clips
  • 7X digital zoom for increased viewing
  • 8GB Micro SD card (included), supports up to 128GB
  • Mini-USB cable (included) for uploading images and videos
  • More than 10,000 lux, adjustable 10-level LED illumination
  • Flashlight for higher visibility in low-light environment
  • Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
  • 1m (39.4") semi-rigid, flexible watertight cable
  • Includes magnet and hook cable accessories
  • 8.5mm (0.33") probe fits most spark plug holes
  • Compatible with 5.5mm (0.22") camera head (not included)

Autel MaxiVideo MV480 Specification

Optimal viewing Distance 0.79" to 2" (2 cm to 5 cm)
Image capture JPG images (1920 x 1080 pixels) / MP4 videos (1920 x 1080 pixels)
Screen type display 4.1" TFT LCD
Display resolution 1200 x 720 pixels
Power supply Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh)
Tested battery life Approximately 4 hours of continuous use
Dimensions 243 x 116 x 122mm (9.6" x 4.6" x 4.8")
Weight 0.422 kg (0.93lbs)
Recording medium Micro SD card (8GB Standard/128GB Max)
Image controls Zoom, low light vision
Lighting Fully adjustable LED, Flashlight
Cable reach 1m (39.4")
Imager heads 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels)
Waterproof To a depth of 1m (39.4") (Imager heads and cable only)
Additional ports TF, Mini USB, Micro HDMI
Operating temp. Main unit: 14°F to 122°F (-10°C to 50°C) / Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp. Cable: 14°F to 140°F (-10°C to 60°C)
Storage temp. -4°F to 158°F (-20°C to 70°C)
Operating humidity 5% - 95% non-condensing

Autel MV480 Package List

  • 1x MV480 main Unit
  • 1x Magnet and Hook
  • 1x Imager Heads and Cable (8.5 mm)
  • 1x User Manual
  • 1x Protective carrying case
  • 1x Micro SD card
  • 1x Charger
  • 1x Mini USB Cable
