Autel MaxiSYS MS906S

A Vehicle Diagnostic Tablet With Bidirectional Control Function And Special Reset Services

$1,195.00
  • OE-level All System Diagnostic: can get OE-level analysis of ECM, transmission, ABS, airbag, SAS, DPF, etc, among other on-board systems. You can read, and clear their codes thus turning off warning lights; check freeze frame data and view live stream in graph to evaluate the vehicle’s health at a glance.
  • Flash Hidden Features:  Autel MS906S can help you activate the hidden features already programmed to the car computer to get high-end functions. Such as installing the auto start-stop system, customizing the injector light, adjust the auto door look at a particular speed. Compatible with VW, Audi, Skoda, etc.
  • 36+ Maintenance Services: Autel MS906S can provide comprehensive vehicle maintenance options like Reset, Relearns, Adaptations, Initialization, Matching for mechanics, technicians, repair workshops.
  • Bi-directional Control/Active Test:  This MS906S scanner comes with bi-directional control capability to perform active tests to determine the integrity of a system or parts like ABS, window, door, roof, by reading the ECU data, or by monitoring the operation of the actuators, such as switching a solenoid.
  • VAG Guided Function: provides OE-level guidance and allows you just follow the screen instructions step by step to complete some complex operations.
  • FCA Secure Gateway Access - The MS906S has full access to protected FCA vehicles! With an authenticated AutoAuth account, you can bypass SGW module in 2017 & later FCA cars (work with Chrysler, Dodge, Alfa Romeo, Fiat, etc.)



Videos for this product

    Videos for this product

  • Autel MS906S & MS906 Pro Series Diagnostic Tablets
  • New model of Autel MS906S with wireless diagnosis
  • Autel MaxiSys MS906s Latest Model 2022
  • Autel MaxiSys MS906S Registration & Upgrade Guide

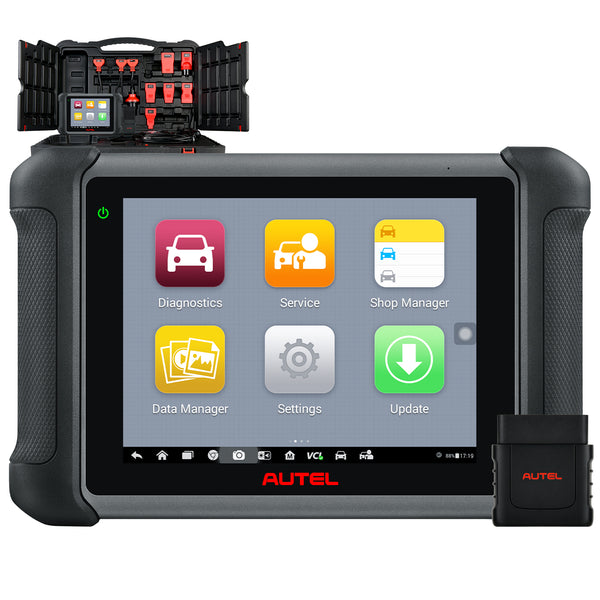

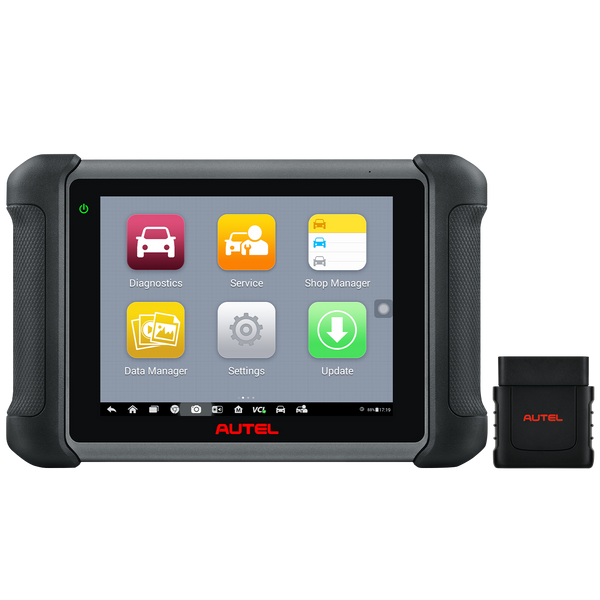

The MaxiSYS MS906S diagnostic tablet, powered by a Hexa-core processor, features 64GB memory and the Bluetooth-enabled VCI Mini with extension for easier OBDII port attachment. The Autel MS906S is able to perform advanced functions such as active tests, Scan VIN optical VIN/barcode recognition for quick vehicle identification, FCA Secure Gateway Access, Pre/Post-SCAN customizable reports, etc.

  • 8-inch Wireless Touchscreen Diagnostics Tablet
  • Compatible with U.S., Asian and European Vehicles, 1996 and newer
  • Advanced Diagnostics, Bi-Directional Control and Active Tests
  • Bluetooth VCI Mini with extension for easier OBDII port connection
  • Android 4.4, Hexa-core Processor, 64 GB Memory
  • Expansive Service Function Menu
  • FCA Secure Gateway Access with AutoAuth subscription
  • Pre/Post Scan Reports
  • One-year free software updates with one-year limited warranty

Specification

Operating System Android™ 4.4.2 Operating System
Processor Samsung Exynos 5260 hexa-core(2*A15 1.7G + 4*A7 1G)
Memory 64G Memory
Display 8” Touchscreen with 1024*768 resolution
Connectivity

Includes Bluetooth VCI Mini

Camera (rear) 8MP Rear Camera
Power and Battery Rechargeable 10,000mAh Battery

Packing List
