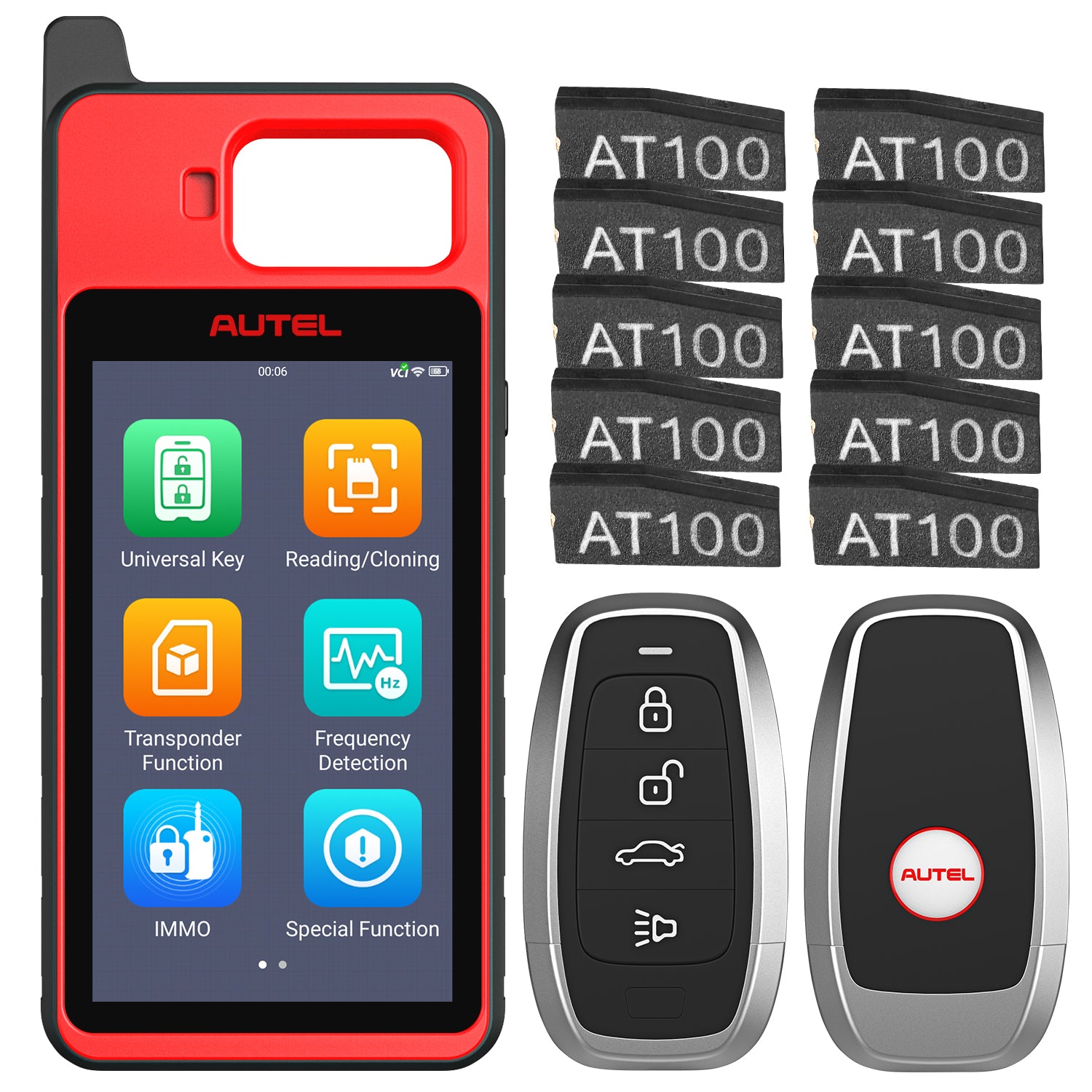

Autel MaxiIM KM100

Intelligent key programmer & immobilizer tool with one-stop service from universal key generation to key learning

  • Newest Smart Key Programming Tool: Autel MaxiIM KM100 is a professional key tool that integrates such functions as universal key generation, transponder reading/cloning, and IMMO learning in a compact and easy-to-use design.
  • Key Generation for 700+ Vehicles: Autel MaxiIM KM100 car key programmer can program the Autel IKEY as a smart key replacement for more than 700 vehicles within 1 minute. Also, include transponder reading/writing/cloning and frequency detection.
  • IMMO Key Learning on 99% of vehicles: Industry-Leading coverage of IMMO key learning via OBD on 99% of vehicles. Covering the top 100 selling models in North America for the last 10 years.
  • Easy But Impressive Transponder Functions: You can use KM100 to read/ edit/ clone the transponder, perform Transponder Generation, Simulation, and convert between Ford ID63 and ID83.
  • Hot & Special Functions: Frequency Detection, Button Adjustment, Key Unlocking, Universal Key Information Detection, Write Serial Number, etc. Especially, the Ignition Coil Detection function enables KM100 to gather the data of the IMMO protocol and transponder type of vehicles.
  • Includes 2pc FREE Blank Keys: Autel KM100 Universal Key Generator Toolkit includes 2 Autel universal blank keys for one-stop solution

Videos for this product

    Videos for this product

  • Autel MaxiIM KM100 Unboxing
  • Autel KM100 Smart Key Generation In Action
  • Autel KM100 Overview & Features
  • Autel KM100 and IKEY Smart Keys at the AAPEX Show

MaxiIM KM100

Autel MaxiIM KM100 is an advanced key and immobilizer touchscreen tablet capable of smart key creation and IMMO learning via OBD. This 5.5-inch, Android touchscreen tablet with Bluetooth VCI can program the Autel IKEY as a smart key replacement for more than 700 vehicles and offers IMMO programming capability for multiple vehicle brands including BMW, Volkswagen, Toyota, Honda, and General Motors. Additional innovative features include key renewal and Transponder Editing of 20 supported protocols.

  • Programs Autel's IKEY universal key as smart key replacement for more than 700 vehicles
  • Extensive IMMO Key programming coverage including BMW, Volkswagen, Toyota, Honda, and General Motors
  • One-Minute Key Generation
  • Chip Read & Write, Cloning and Frequency Detection
  • AutoVin vehicle identification to ensure accuracy
  • Simple User Interface with Concise Instructions
  • Powerful Android-based tablet with 64 GB memory and long-lasting rechargeable battery


Dimensions (WxHxD) 200mm(7.9”) x 89 mm (3.5”) x 22 mm (0.87”)
Weight 352.7g (0.8 lb)
Screen 5.5-inch screen with 1280 x 720 resolution
Processor Rockchip PX30 (4x ARM Cortex-A35 1.5GHz)
Operating System
Android™ 9.0
Memory 2GB RAM/64GB on-board memory
Camera 8 megapixels
Connection Wi-Fi Bluetooth 5.0 USB 2.0 type C
Battery 4950mAh lithium-polymer battery
VCI V200
Input 5V/2A
Sensor Ambient light sensor
Audio Input/Output MIC: supported Speaker: supported
Operating Temp -10 to 45°C (14 to 113°F)
Storage Temp -20 to 60°C (-4 to 140°F)

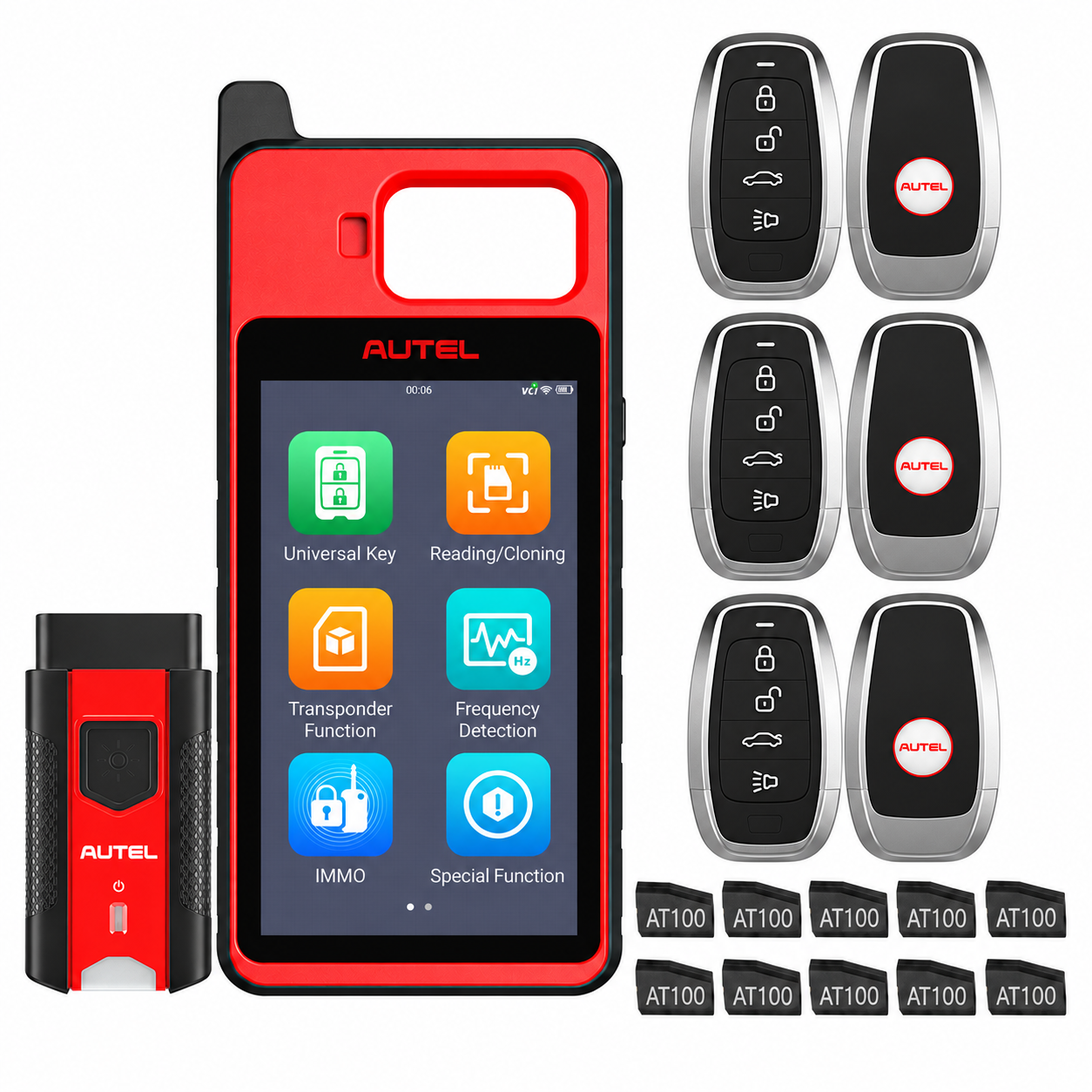

Package List

  • 1 x KM100X Main Unit
  • 1 x MaxiVCI V200
  • 1 x Power Adapter
  • 1 x Type-C USB Cable
  • 2 x Universal Smart Key
  • 1 x Custom Mini USB Cable(for key programming)
  • 1 x USB-C to USB-C Cable
  • 1 x Quick Reference Guide
  • 1 x Packing List
  • 1 x Carrying Case(330*262*100mm)
