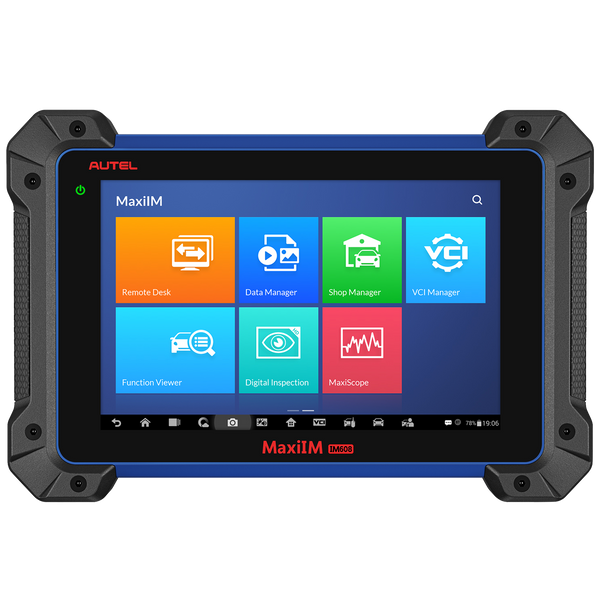

Autel MaxiIM IM608 Pro Key Programming Tool
Autel MaxiIM IM608 Pro Key Programming Tool

MaxiIM IM608 Pro

The most advanced all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services.

$3,305.00
  • 2-Year Update Key Programming Tool: Autel IM608 Pro is the perfect combination of a top diagnostic scanner and key fob programming tool with 2-year update, designed for pro locksmiths and auto mechanics.It is equipped with XP400 PRO key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions.
  • Complete Key Programming & IMMO: Autel IM608 Pro featured Read PIN/CS (all key lost), key generation, key learning, remote learning; Backup/ Restore IMMO Data, IMMO ECU reset/adaptation, refresh/coding; Transpronder read/write, EEPROM/MCU read/write, etc advanced IMMO & key programming fucntions.
  • OE-level Diagnostic & & 30+ Services: With the same diagnostic capability as MS908/MK908, Autel IM608 PRO scanner provides you with all special functions to quickly diagnose all modules to read & erase DTCs, and view live data. Also with 30+ advanced maintenance services including EPB, DPF, SAS, SRS, Oil reset, ABS bleeding and BMS.
  • Advanced ECU Coding & Bi-Directional Control: Autel IM608 Pro has advanced ECU Coding function, it allows you to modifications/change pre-programmed options already existent in vehicles' ECU to unlock hidden functions, improve vehicle performance, or used to activate/match/ code/relearn the replaced ECU modules. And with the bi-directional feature, you can test on subsystems or components to check the integrity of systems.
  • 10000+ Vehicle Coverage and FCA: Autel IM608 Pro diagnostic scanner can work on over 10000+ US, EU and Asian models including 12V sedans, light trucks and SUVs. The latest IM608 Pro are certified by FCA to access SGW module.

Videos for this product

    Videos for this product

  • Autel IM608 Pro Introduction and Unboxing | Key programming
  • Need a new Honda key? Follow these tips and get a new key fast!
  • Autel IM608 Pro | Make a car key without original one | Key programming
  • How to program a new on Mercedes-Benz | Autel IM608 Pro
  • Lost all keys? 5 minutes to get your lost Mercedes Benz car keys replaced!
  • How to do EEPROM Programming with a Porsche
  • IM608PRO & IMKPA Key Programming Adapter Set Webcast Training

MaxiIM IM608 PRO

MaxiIM IM608 PRO is the most advanced and unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 PRO key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. IM608 PRO provides you with all special functions to quickly diagnose all modules for the majority of the makes and models on the market. It is the unprecedented key programming and diagnostic tool that you ever wanted.

Features：

  • Samsung Exynos 5260(2GB ROM)
  • 10.1”1024x768 LCD capacitive touchscreen
  • Internal reliable 64GB Memory
  • Android Operating System for fast boot-up and multitasking
  • Powerful combination of key programming/all system diagnostics/advanced maintenance services
  • Smart Mode for guided and automated key learning
  • Expert Mode for advanced key learning
  • Read PIN/CS (all key lost) , key generation, key learning, remote learning
  • IMMO ECU reset/adaptation, refresh/coding
  • Transpronder read/write, EEPROM/MCU read/write
  • Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
  • Advanced maintenance services including EPB, DPF, SAS, Oil reset, and BMS

Specification

Operating System: Android™ 4.4.4, KitKat
Processor: Samsung Exynos hexa-core Processor
(1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory: 2GB RAM & 64GB On-board Memory
Display: 10.1-inch LED capacitive touch screen with 1920x1200 resolution
Connectivity: Wi-Fi (802.11 a/b/g/n/ac); USB: 2.0; BT v.2.1 + EDR; SD Card (Support up to 32GB); HDMI
Sensors; Gravity Accelerometer, Ambient Light Sensor (ALS)
Power and Battery: 15000 mAh 3.8 V lithium-polymer battery
Charging via 12 V AC/DC power supply
Input Voltage 12 V (9-24 V)
Power Consumption: 6.5 W
Operating Temp.: 0 to 50°C (32 to 122°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Dimensions (WxHxD): 300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Net Weight: NW: 1.42 kg (3.13 lb.)
GW: 8.655 kg (19.08 lb.)
Supported Automotive Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Package List

  • MaxiIM IM608 Pro Tablet
  • XP400 Pro Key Programmer
  • MaxiFlash JVCI
  • Connection Cables
  • USB Adapter
  • Carrying Case
