MaxiCOM MK908

Wireless Bi-Directional control OBD2 diagnostic tool, which can handle problem from basic vehicle diagnostic to ECU coding.

$1,395.00
  • Upgraded Version for MS(MK)906BT - It is Autel's latest and most sophisticated diagnostic scanner which boasts the best hardware including Hexa-CPU, 2GB RAM etc. for fast boot-up and multitasking, and the ergonomic design to resist damage of heavy use.
  • OE-Level Full Systems Diagnostic - Autel MK908 Scan tool can access all available vehicle modules like PCM, ECM, EPS, PDM, BCM, TPM, SCCM and etc and perform OE-Level diagnosis to read/clear fault codes, view live data, perform active tests, matchings, adaptations, and etc
  • 31+ Service Functions - It has 31 service function options, mainly including Oil Reset, EPB service, TPMS ID Relearn, ABS Auto Bleed, SAS Calibration , DPF Regeneration and etc.
  • Advanced Functions - Autel MK908 supports ECU coding(not programming) to help workshops unfold the hidden features or disable the annoying functions etc. to suit car owners customized needs. Bi-directional Control, allows users to send commands to the tested ECUs and monitor the activity of the actuators, such as windows up/ down, switch on/off, etc.
  • Able to Upgrade - Can be binded with New J2534 for ECU programming for BENZ/BMW.

Videos for this product

    Videos for this product

  • Autel MaxiCOM MK908 Scanner Review and GM Code P0172, P0175 Repair. New For 2019. MK908P
  • 2019 MaxiCOM MK908 Pro New tool
  • Autel MAXICOM MK908 Pro level scan tool
  • Autel MaxiCOM MK908P 2020 Version Review
  • Autel MaxiSYS MS908 Complete Diagnostic Scan Tablet OBD2

  • Powerful A7 quad-core 1.30GHz processor
  • 10.1-inch capacitive touch screen
  • Open source Android Operating System for fast boot-up and multitasking
  • Easy and intuitive navigation makes finding what you need simple and fast
  • Complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
  • Displays live data in text, graph, analog and digital gauge for easy data review and analysis
  • Configures display options, sets triggers, records and playbacks results with one touch
  • Records and playbacks live data to pinpoint troubles of sensors and components
  • Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
  • Remote technical support for convenient demonstration, training and increased customer satisfaction
  • Prints out recorded data anytime and anywhere with Wi-Fi technology
  • Automatic Wi-Fi updates available in new software releases



Specification

Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos hexa-core Processor (1.3GHz Quad-core ARM Cortex-A7 + 1.7GHz Dual-core ARM Cortex-A15)
Memory 2GB RAM & 64GB On-board Memory
Display 10.1-inch LED screen with 1920x1200 resolution
Connectivity

Wi-Fi (802.11 a/b/g/n/ac)

USB: 2.0

BT v.2.1 + EDR

SD Card (Support up to 32GB)

HDMI

Camera (rear) 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output

Microphone

Dual Speakers

3-Band 3.5 mm stereo/standard headset jack

Input Voltage 12 V (9-24 V)
Power Consumption 6.5 W
Operating Temp 0 to 50°C (32 to 122°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Housing Strong plastic housing with protective rubber boot
Dimensions (W x H x D) 312mm(12.28")x208mm(8.18")x36mm(1.41")
Weight NW: 1.48kg (3.26 lb)
Protocols ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

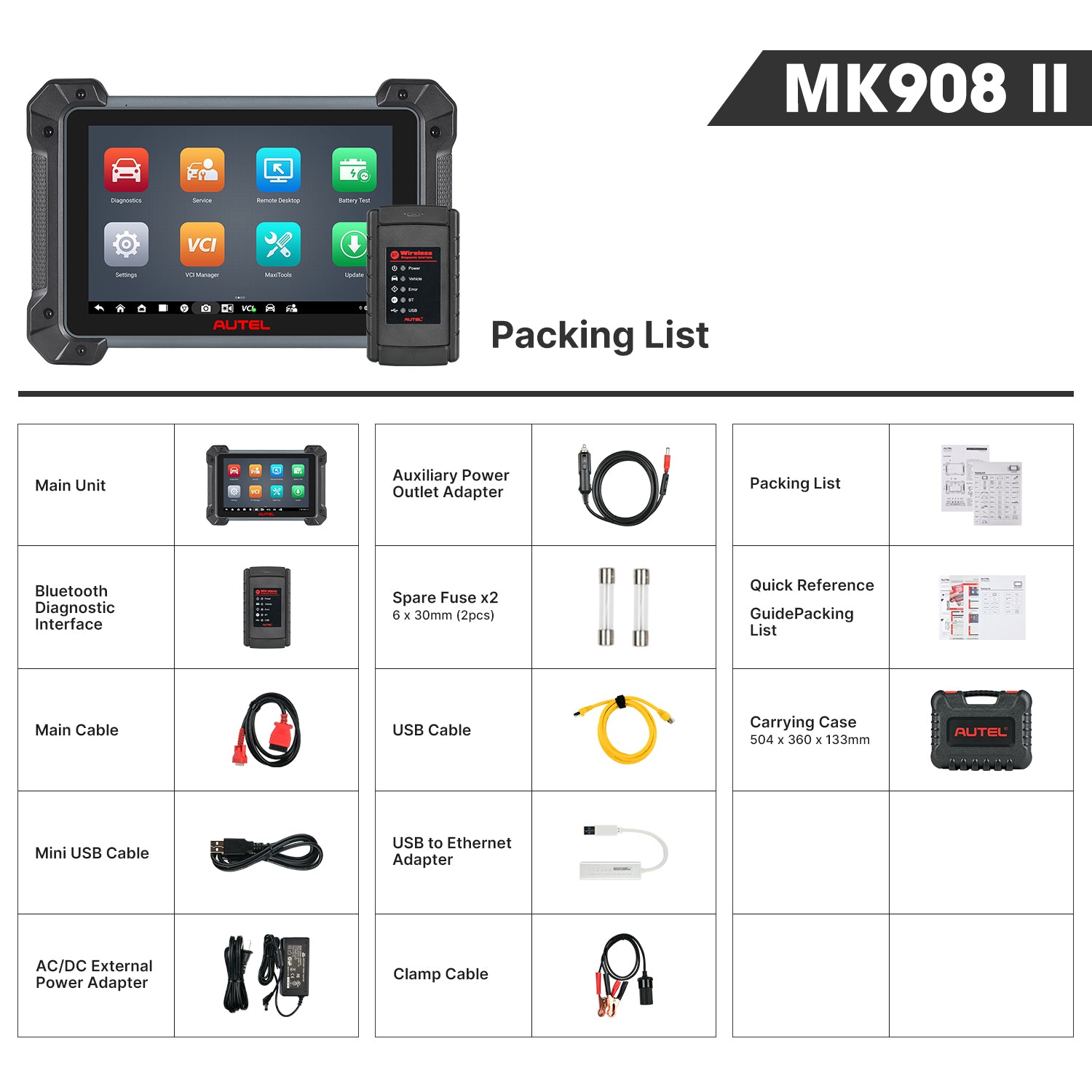

Package List

  • 1x MaxiCOM MK908 main unit
  • 1x Bluetooth diagnostic interface
  • 1x AC/DC adapter (12V)
  • 1x Adapter for Benz-14 (Europe Only)
  • 1x Adapter for Chrysler-16 (America Only)
  • 1x User manual
  • 1x Carrying case
  • 1x Quick reference guide
  • 1x Lighter fuse
  • 1x Main cable
  • 1x Adapter for GM/Daewoo-12
  • 1x Adapter for Audi-2+2
  • 1x Adapter for BMW-20
  • 1x Adapter for Benz-38
  • 1x Adapter for Kia-20
  • 1x Adapter for Mitsubishi/Hyundai-12+16
  • 1x Adapter for Nissan-14
  • 1x Adapter for Honda-3
  • 1x Micro USB Cable
  • 1x Cigarette lighter
  • 1x Soft cloth
  • 1x Packing list
  • 1x Mini USB cable
