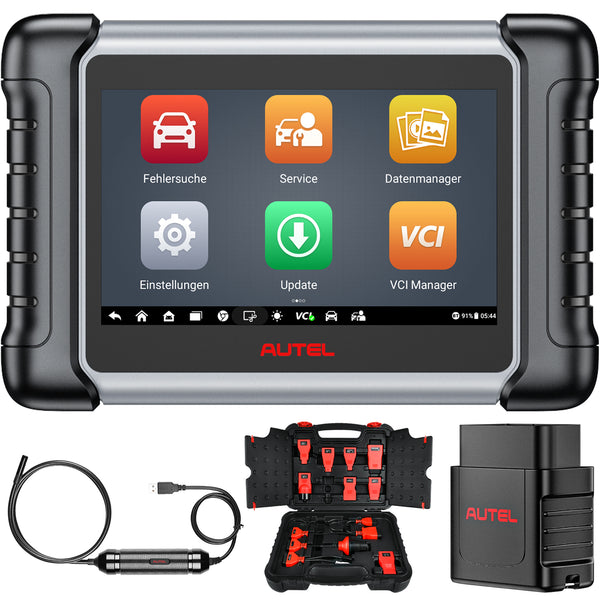

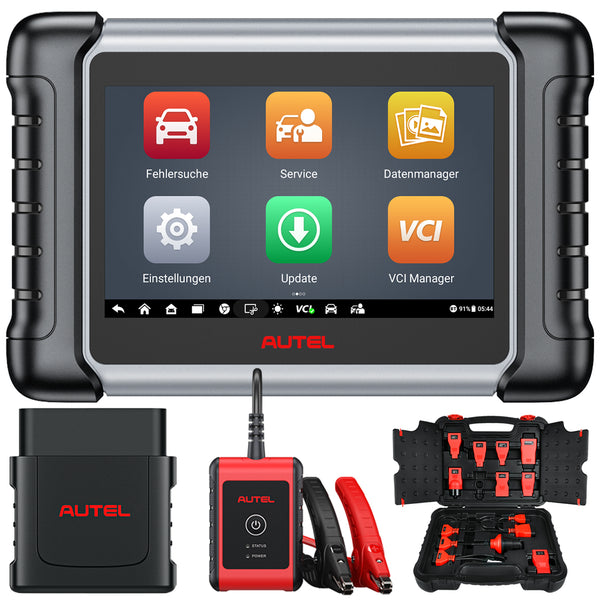

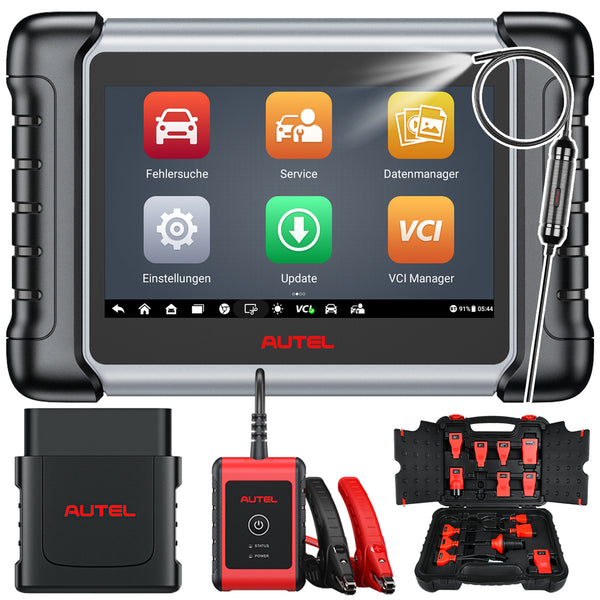

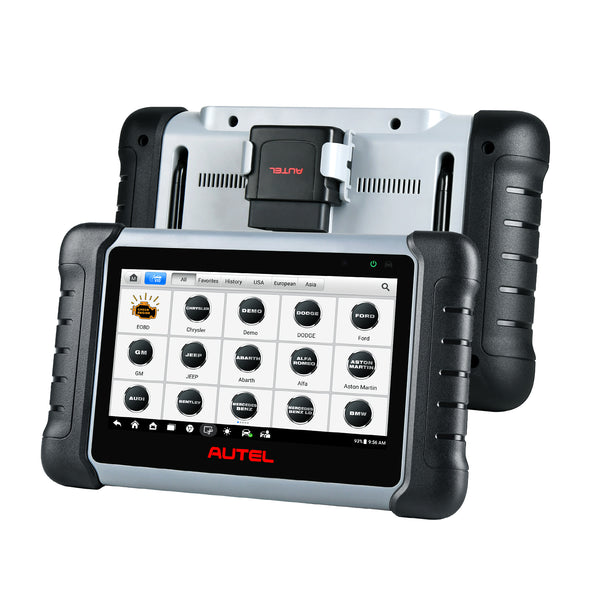

Autel MaxiPro MP808BT Pro Kit

Alternative choice for MS906, Get automative diagnostics with bluetooth connection and maintenance at a better price

$669.00 $799.00
  • OE-Level All System Diagnostic - 2024 Wireless diagnostic tool MP808BT Pro Kit can perform OE-level diagnosis for all available systems to read clear DTCs, view live data graph, ECU info, etc.
  • Bi-directional Control - Autel MP808BT Pro Kit supports active tests that can send commands to the vehicle's ECU to activate the actuators, such as ABS, window, door, solenoids, relay, switch, valves, headlamps, etc. for directly monitoring their operation to help you pinpoint the faulty issues.
  • 37+ Service Functions - Autel MP808BT Pro Kit are actively reducing the unnecessary expense by integrating 37+ services, meeting most of maintenance needs, such as Oil/EPB/SAS/DPF/BMS/ABS Bleed/Injector, etc.
  • Advanced ECU Coding - Autel scanner MaxiPRO MP808BT PRO Kit has the same ECU Coding features as MS906 PRO for BMW, Porsche, VW; Work with BMW / Audi/ VW/ Skoda etc to refresh hidden functions; VAG guidance works perfectly on Audi/ VW/ Skoda, etc.
  • FCA AutoAuth Access- bypass SGM in FCA vehicles for successful OBDII diagnostics, active test, calibrations, and more; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc.

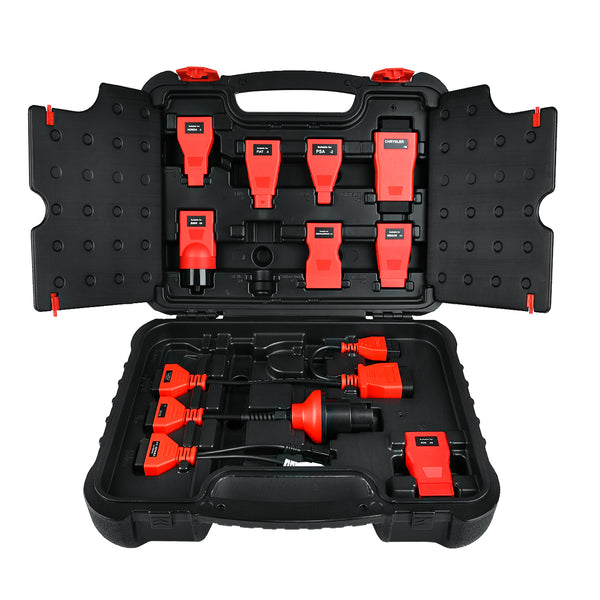

  • Comes with extra adapters- With the extra Non-standard OBD2 adapters (Valued 200 bucks) included, Autel MP808BT PRO kit can access to more vehicle models past and now than MS906/ MP808/ MP808S/ DS808.
Item: MP808BT Pro Kit

Videos for this product

    Videos for this product

  • Autel MaxiPRO MP808BT Pro Kit Unboxing
  • Autel MaxiPRO MP808 Initial Review
  • AUTEL MaxiPro MP808 Diagnostic Scanner Review
  • Autel MP808 Ford/Mazda Module Programming
  • Autel MaxiPro MP808 - Review Update

MaxiPRO MP808BT Pro Kit Features

  • Comes with Two Years Free Update. (Within 3-5 days after you register)
  • All Systems/All Service 7-inch touchscreen wireless tablet
  • Compatible with U.S., Asian and European vehicles, 1996 and newer.
  • Read and Erase Codes on all available vehicle systems.
  • View Freeze Data and View and Graph Live Data.
  • AutoVIN technology for rapid vehicle identification.
  • Exceptional OE-Level system coverage for all electronic systems.
  • Cloud-based report management for easy viewing and sharing.
  • Powerful Cortex-A55 processor (1.8 GHz) processor.
  • 7-inch LCD capacitive touchscreen with 1024 x 600 resolution display.
  • 64GB On-board Memory for better performance.
  • Android 11 Operating System for fast boot-up and multitasking.
  • Ergonomic design with rubberized outer protection and a rugged internal housing to withstand everyday shop use.
  • Shop Management application designed to maintain customer information and vehicle history data.

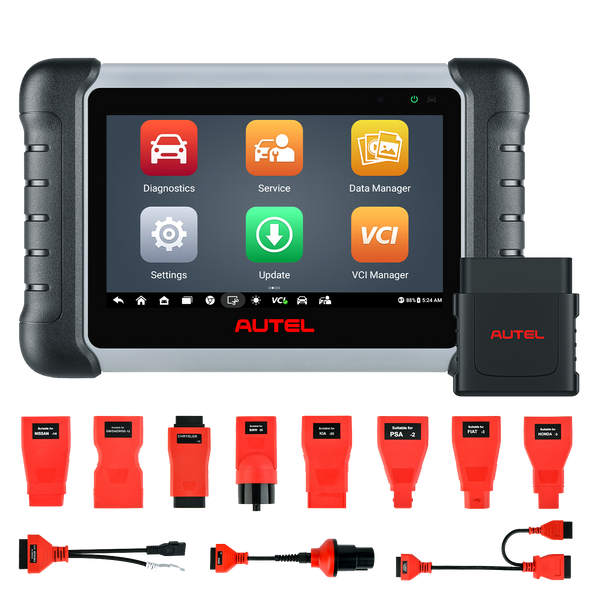

  • Includes OE-compliant non-OBD II adapter kit for specific vehicles


Operating System: Android 11
Processor: Rockchip RK3566
Memory: 4G & 64GB
Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
Sensors; Ambient light sensor for brightness auto changing
Audio Input/Output: •Input: N/A, Output: buzzer
Power and Battery: 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life: Around 4.5 hours of continuous use
Battery Charging Input: 5 V/1.5 A
Power Consumption: 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp.: 0 to 55°C(32 to 131°F)
Storage Temp.: -20 to 60°C (-4 to 140°F)
Operating Humidity: 5% - 95% non-condensing
Dimensions (W x H x D): 237.8 mm (9.4") x 148.6 mm (5.9") x 35.5 mm (1.4")
Net Weight 788 g (1.74 lb.)
Protocols ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,SAE-J1850 VPW,SAE-J1850PWM, SAE J2610,GM UART UART Echo Byte Protocol,
ISo11898(Highspeed, Middlespeed,Low-speed and Singlewire CAN,fault-tolerant CAN),Honda Diag-H Protocol,TP2.0,TP1.6

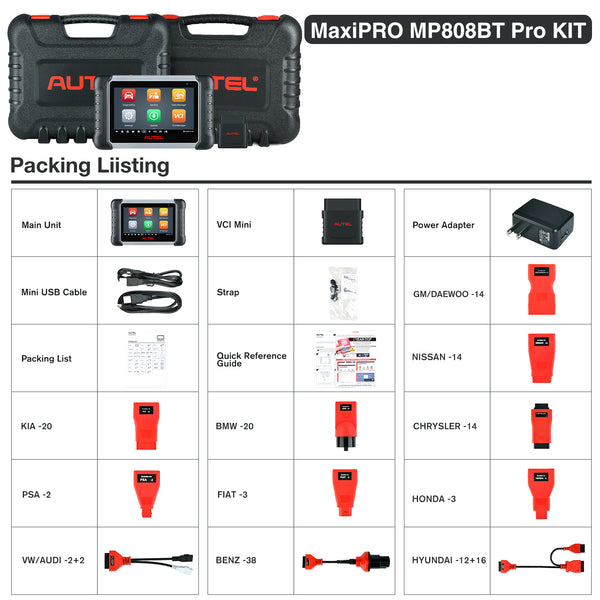

Package List

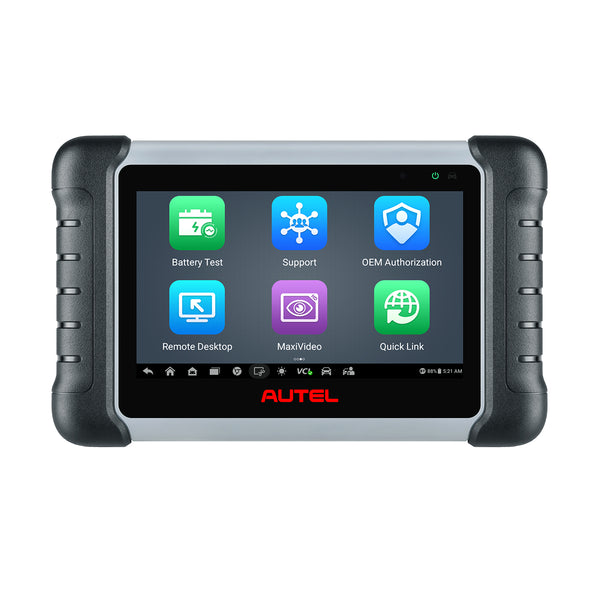

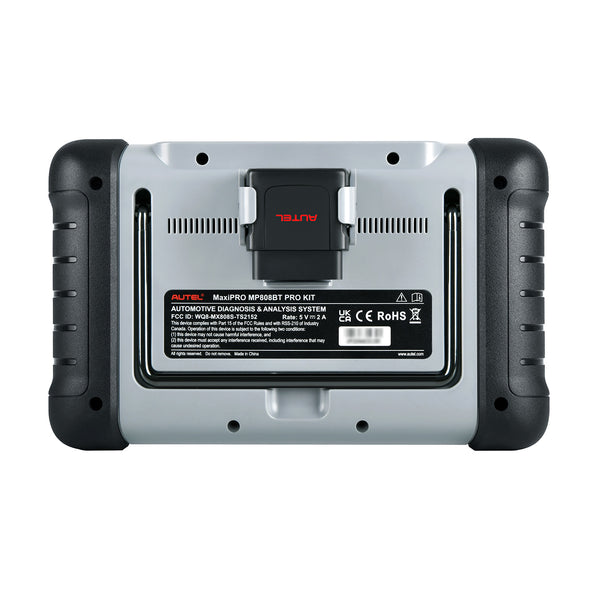

  • 1x MaxiPro MP808BT Pro Main unit
  • 1x Honda-3 Adapter
  • 1x Nissan-14 Adapter
  • 1x Mitsbushi/Hyundai-12+16 Adapter
  • 1x Kia-20 Adapter
  • 1x BMW-20 Adapter
  • 1x Volkswagen Audi-2+2 Adapter
  • 1x GM/Daewoo-12 Adapter
  • 1x Benz-38 Adapter
  • 1x Chrysler-16 Adapter (Available in America Only)
  • 1x Fiat-3 Adapter (Available in Europe Only)
  • 1x PSA-2 Adapter (Available in Europe Only)
  • 1x Benz-14 Adapter (Available in Europe Only)

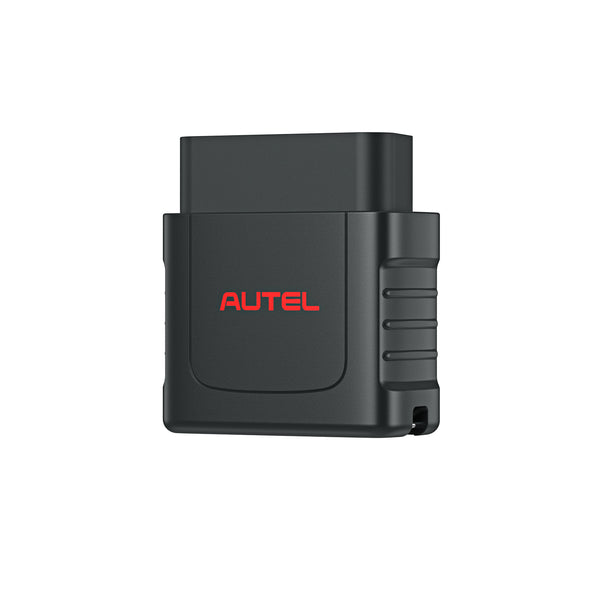

  • 1x VCI mini
  • 1x Power Adapter
  • 1x Mini USB Cable
  • 1x Mini USB Cable
  • 1x Carrying Case
  • 1x Packing List
  • 1x Strap
  • 1x Quick Reference Guide
